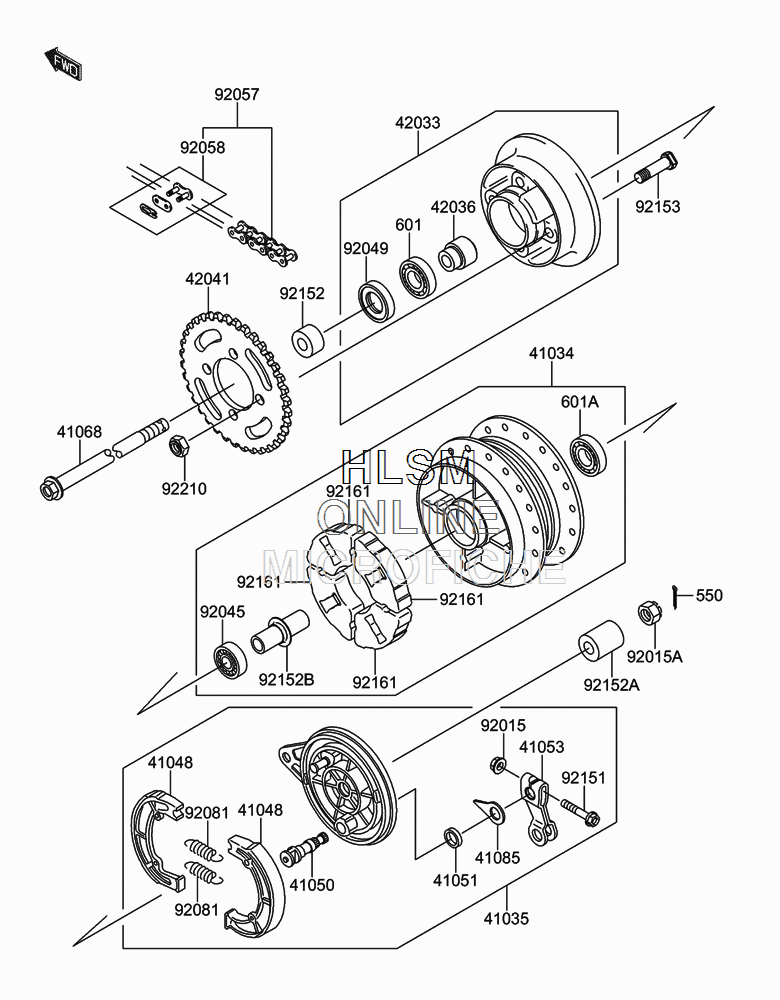

REAR HUB W/ BRAKE для Suzuki DR-Z110K5 - 2005 года выпуска
-
№АртикулНазвание
-
41034K4103-40010 DRUM-ASSY,REAR BRAKEDRUM-ASSY,REAR BRAKE
-
41035K4103-51542 PANEL-ASSY-BRAKE,RRPANEL-ASSY-BRAKE,RR
-
41048K4104-81141 SHOE-BRAKESHOE-BRAKE
-
41050K4105-01082 CAM-BRAKECAM-BRAKE
-
41051KK410-51001 SEAL,BRAKE CAMSEAL,BRAKE CAM
-
41053K4105-31089 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
41068K4106-80016 AXLE,RRAXLE,RR
-
41085K4108-51079 INDICATORINDICATOR
-
42033K4203-31223 COUPLING-ASSY,RR HUBCOUPLING-ASSY,RR HUB
-
42036K4203-61292 SLEEVE,RR HUB COUPLING,L=29SLEEVE,RR HUB COUPLING,L=29
-
42041K4204-10006 SPROCKET-HUB,33TSPROCKET-HUB,33T
-
92015K9201-51193 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92015AK9201-51870 NUT,CASTLE,12MMNUT,CASTLE,12MM
-
92045K9204-51308 BEARING-BALL,6201ZC3/5CBEARING-BALL,6201ZC3/5C
-
92049K9204-91490 SEAL-OIL,SC26X42X8SEAL-OIL,SC26X42X8
-
92057K9205-70090 CHAIN,DRIVE,DID420DXX86LCHAIN,DRIVE,DID420DXX86L
-
92058K9205-80006 JOINT-CHAIN,DRIVEJOINT-CHAIN,DRIVE
-
92081K9208-11766 SPRING,BRAKE SHOESPRING,BRAKE SHOE
-
92151K9215-11209 BOLT,FLANGED,6X34BOLT,FLANGED,6X34
-
92152K9215-21405 COLLAR,RR AXLE, LEFT HAND,L=14.8COLLAR,RR AXLE, LEFT HAND,L=14.8
-
92152AK9215-21406 COLLAR,RR AXLE, RIGHT HAND,L=32COLLAR,RR AXLE, RIGHT HAND,L=32
-
92152BK9215-21409 COLLAR,REAR BRAKE DRUM,L=58COLLAR,REAR BRAKE DRUM,L=58
-
92153K9215-31120 BOLT,10X36BOLT,10X36
-
92161K9216-10084 DAMPER,RR HUB SHOCKDAMPER,RR HUB SHOCK
-
92210K9221-01351 NUT,LOCK,10MMNUT,LOCK,10MM
-
550KK550-S2520 PIN-COTTER,2.5X20PIN-COTTER,2.5X20
-
601K601B-6004U BEARING-BALL,#6004UC3BEARING-BALL,#6004UC3
-
601AK601B-6301U BEARING-BALL,#6301UC3BEARING-BALL,#6301UC3
