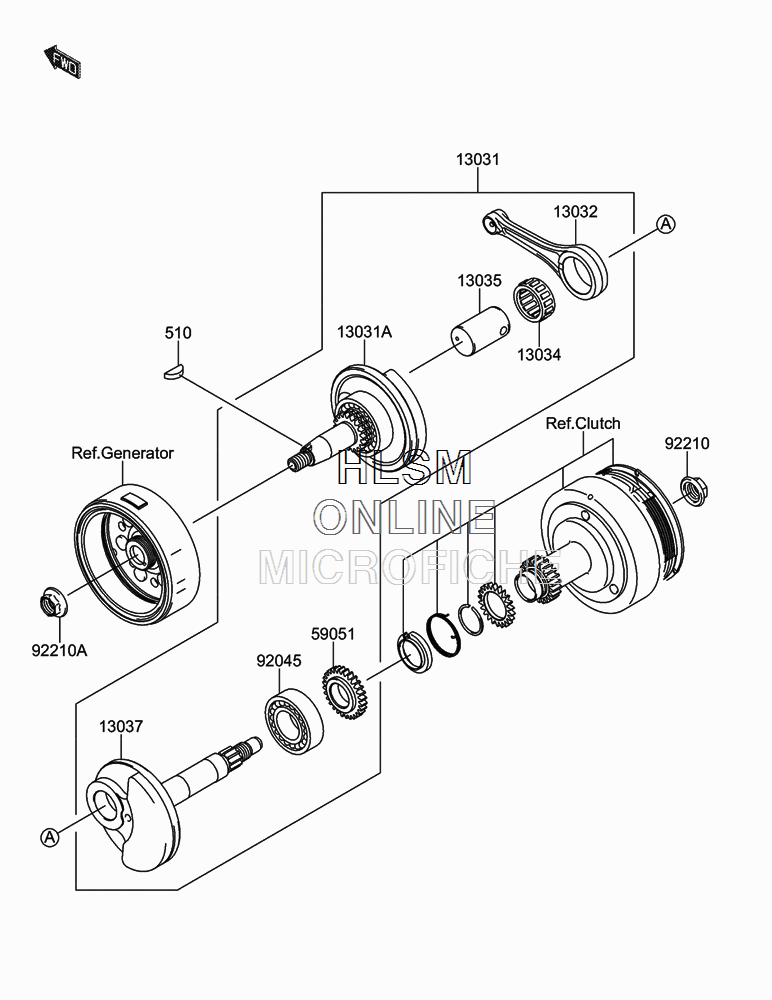

CRANKSHAFT W/ PISTON для Suzuki DR-Z110K5 - 2005 года выпуска
-
№АртикулНазвание
-
13031K1303-10010 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
13031AK1303-10011 CRANKSHAFT-COMP, LEFT HANDCRANKSHAFT-COMP, LEFT HAND
-
13032K1303-21277 ROD-CONNECTING,NGROD-CONNECTING,NG
-
13034K1303-40001 BEARING-BIG ENDBEARING-BIG END
-
13035K1303-51092 PIN-CRANKPIN-CRANK
-
13037K1303-70008 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
59051K5905-11402 GEAR-SPURGEAR-SPUR
-
92045K9204-51293 BEARING-BALLBEARING-BALL
-
92210K9221-01163 NUT,14MMNUT,14MM
-
92210AK9221-01375 NUT,FLANGED,12MMNUT,FLANGED,12MM
-
510KK510-A3200 KEY-WOODRUFFKEY-WOODRUFF
