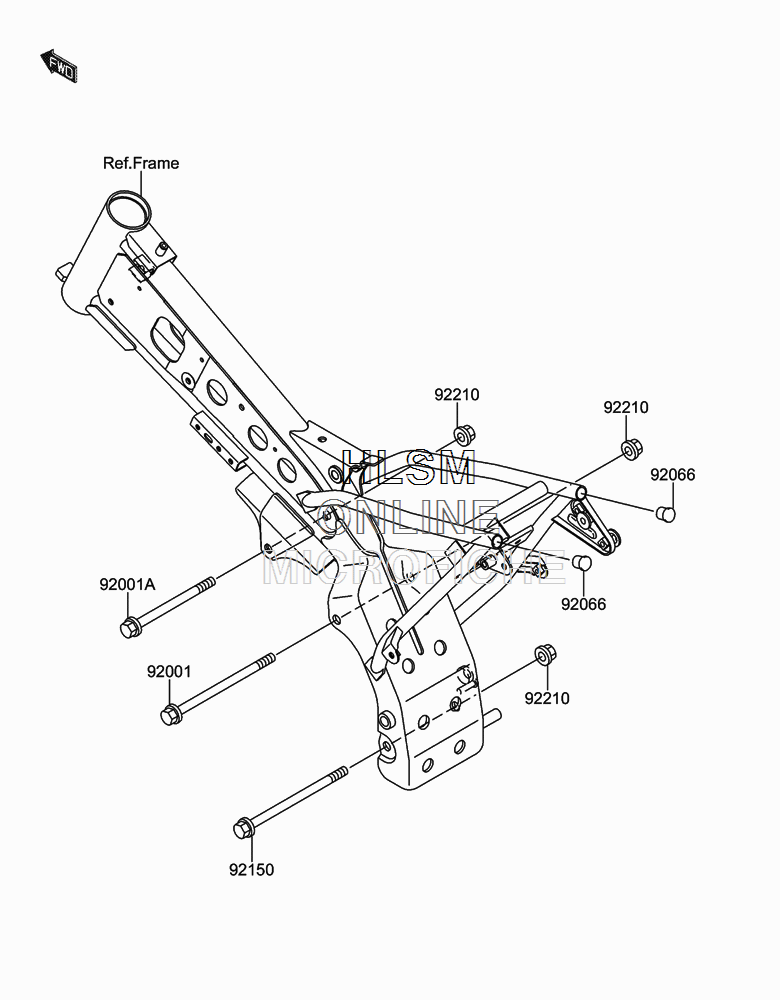

ENGINE MOUNT для Suzuki DR-Z110K5 - 2005 года выпуска
-
№АртикулНазвание
-
92001K9200-11720 BOLT,FLANGED,10X125BOLT,FLANGED,10X125
-
92001AK9200-11751 BOLT,FLANGED,10X105, BLACKBOLT,FLANGED,10X105, BLACK
-
92066K9206-61081 PLUG,HEAD LAMPPLUG,HEAD LAMP
-
92150K9215-01831 BOLT,FLANGED,10X120BOLT,FLANGED,10X120
-
92210K9221-01081 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
Все узлы модели:
- ACCESSORY - NUMBER PLATE
- AIR CLEANER
- BRAKE PEDAL
- BRAKE PEDAL W/ STAND
- CABLES
- CAMSHAFT W/ TENSIONER
- CARBURETOR ASSY.
- CLUTCH
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- CYLINDER/PISTON
- DECAL
- ELECTRICAL - MAIN HARNESS
- ENGINE COVERS
- ENGINE GUARD
- • ENGINE MOUNT
- FENDERS - FRONT/REAR
- FOOTREST
- FRAME
- FRONT HUB W/ BRAKES
- FUEL TANK
- GEAR CHANGE DRUM/SHIFT FORK
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- IGNITION SYSTEM
- KICKSTARTER
- LABEL
- MUFFLER
- OIL PUMP
- OWNER'S TOOL
- REAR HUB W/ BRAKE
- SEAT
- SIDE COVER W/ CHAIN COVER
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR SUSPENSION - MOUNTING
- SUSPENSION - REAR SWING ARM
- SUSPENSION - SHOCK ABSORBER
- TRANSMISSION
- VALVE
- WHEEL AND TIRES
