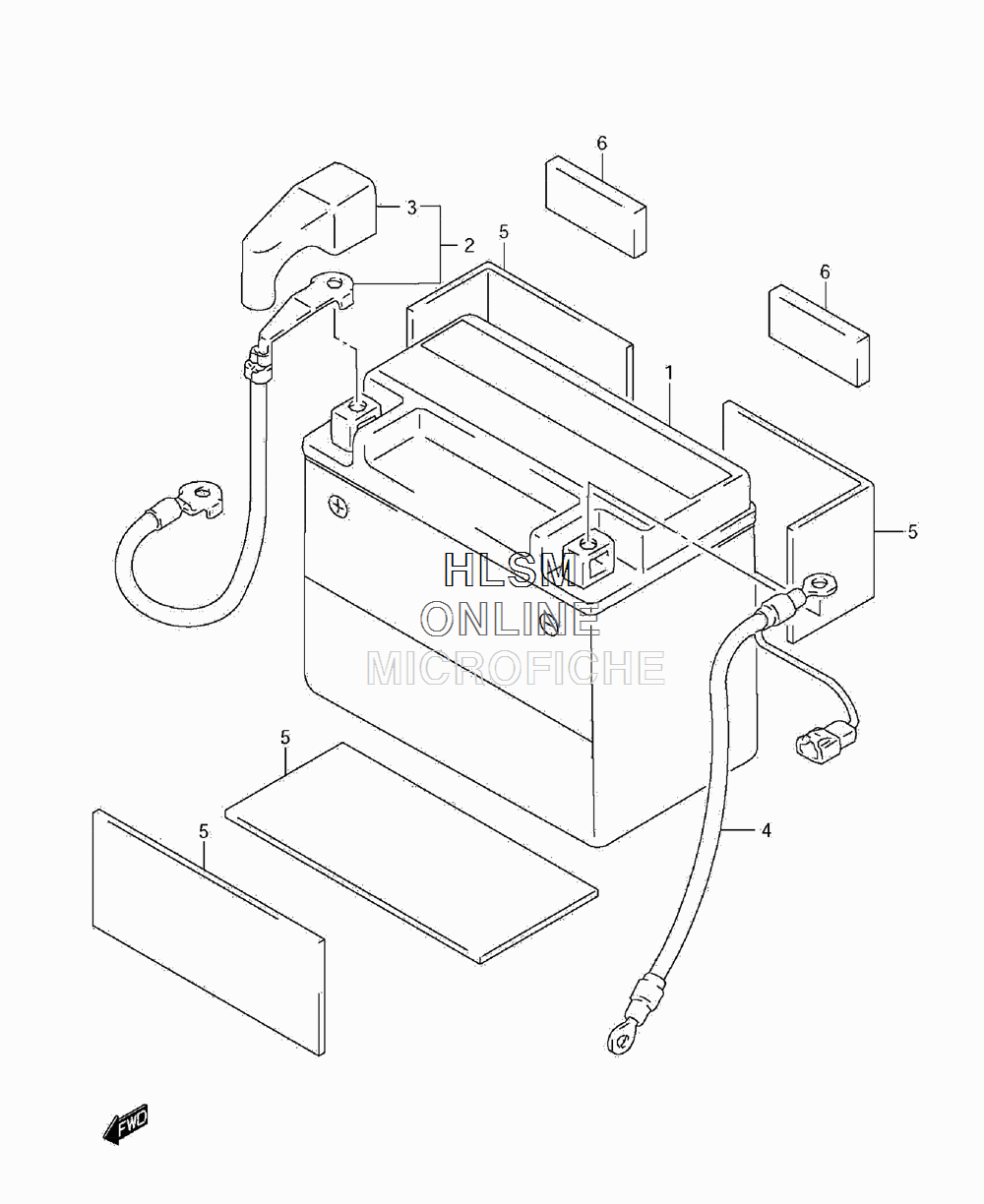

BATTERY для Suzuki DR-650SEL1 - 2011 года выпуска
-
№АртикулНазвание
-
133610-32C10 BATTERY (12V,8AH)BATTERY (12V,8AH)
-
233820-32E00 LEAD WIRE, BATTERY (+) (INCL. 3)LEAD WIRE, BATTERY (+) (INCL. 3)
-
333624-32E00 CAP, BATTERY PLUS TERMINALCAP, BATTERY PLUS TERMINAL
-
433860-32E00 WIRE, BATTERY MINUSWIRE, BATTERY MINUS
-
533651-37000 CUSHION (170X95X3.0)CUSHION (170X95X3.0)
-
633652-08420 PROTECTOR (70X100X6) CUT AS REQUIRED (20X45)PROTECTOR (70X100X6) CUT AS REQUIRED (20X45)
