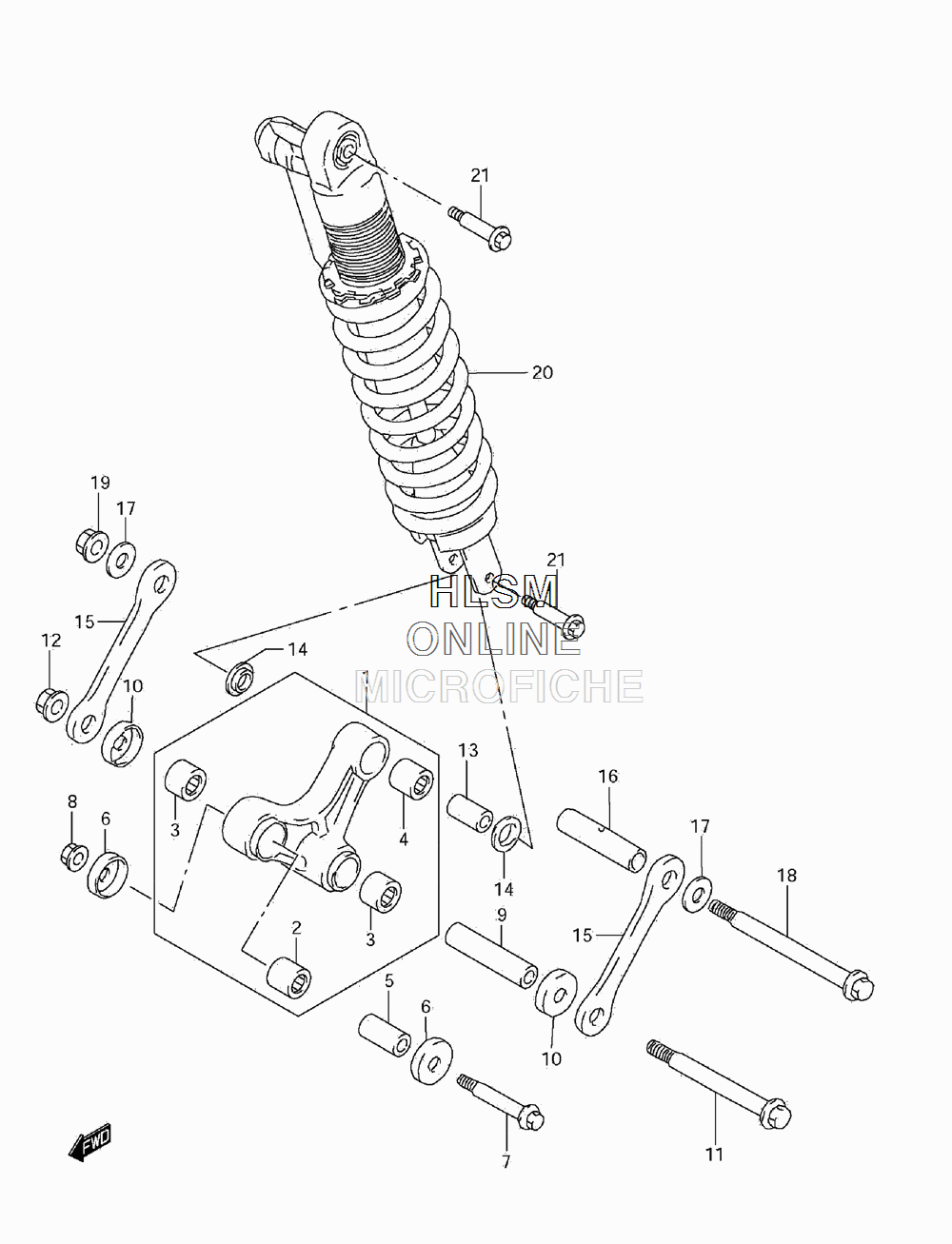

SUSPENSION - CUSHION LEVER W/ SHOCK (CANADA) для Suzuki DR-650SEL1 - 2011 года выпуска
-
№АртикулНазвание
-
162600-32840 LEVER SET, REAR CUSHION (INCL. 2-4)LEVER SET, REAR CUSHION (INCL. 2-4)
-
209263-20073 BEARING (20X27X30)BEARING (20X27X30)
-
309263-21012 BEARING (21X27X20)BEARING (21X27X20)
-
409263-17027 BEARING (17X24X20)BEARING (17X24X20)
-
562317-27C10 SPACER, FRONT (12X20X34)SPACER, FRONT (12X20X34)
-
662162-28E00 SEAL, FRONT DUSTSEAL, FRONT DUST
-
762658-01C60 BOLT, FRONT (12X65)BOLT, FRONT (12X65)
-
808319-3112A NUTNUT
-
962626-13E00 SPACER, CENTER (15X21X74)SPACER, CENTER (15X21X74)
-
1062682-13E00 SEAL, CENTER DUSTSEAL, CENTER DUST
-
1162621-27C20 BOLT, CENTER (14X109)BOLT, CENTER (14X109)
-
1208319-3114A NUTNUT
-
1362684-40A10 SPACER, REAR (10X17X30)SPACER, REAR (10X17X30)
-
1462624-13E00 SEAL, REAR DUSTSEAL, REAR DUST
-
1562641-32E00 ROD, REAR CUSHION LEVERROD, REAR CUSHION LEVER
-
1662626-14D00 SPACER, ROD (14X20X74)SPACER, ROD (14X20X74)
-
1708211-14321 WASHERWASHER
-
1862621-17C00 BOLT, ROD (14X112)BOLT, ROD (14X112)
-
1908319-3114A NUTNUT
-
2062100-32E01-28W ABSORBER ASSY, REAR SHOCK (WHITE)ABSORBER ASSY, REAR SHOCK (WHITE)
-
2162648-14500 BOLT (10X48)BOLT (10X48)
