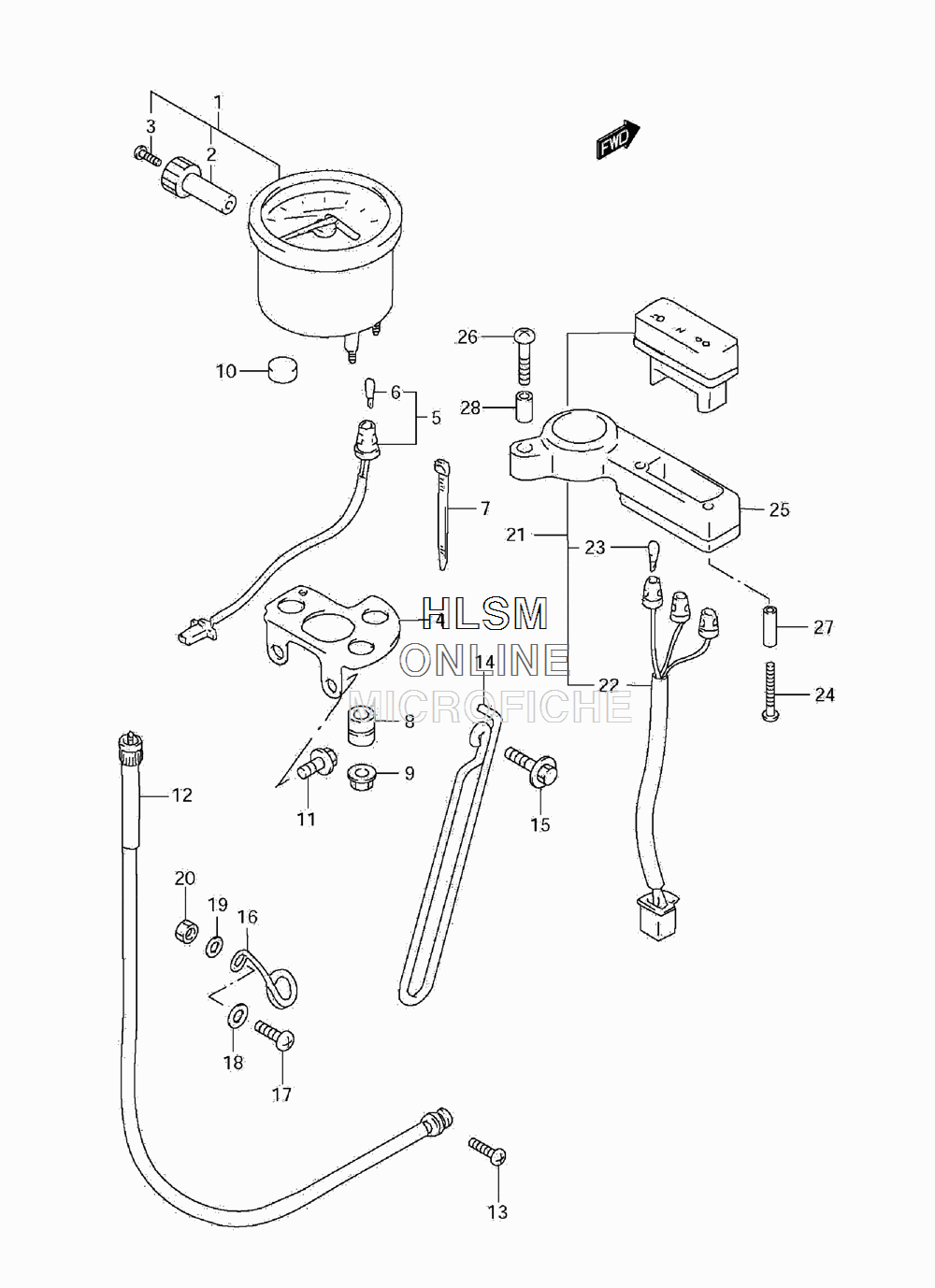

SPEEDOMETER (CANADA) для Suzuki DR-650SEL1 - 2011 года выпуска
-
№АртикулНазвание
-
134120-32E20 SPEEDOMETER (KILO) (INCL. 2-3)SPEEDOMETER (KILO) (INCL. 2-3)
-
234124-44B30 KNOB, TRIPKNOB, TRIP
-
334184-12D00 SCREW, TRIP KNOBSCREW, TRIP KNOB
-
434950-32E10 BRACKET, METERBRACKET, METER
-
534170-15D21 SOCKET (INC 6)SOCKET (INC 6)
-
609471-12108 BULB (12V1.7W,T6.5)BULB (12V1.7W,T6.5)
-
734954-42A90 CLAMPCLAMP
-
834189-30921 CUSHIONCUSHION
-
909159-06076 NUTNUT
-
1034167-42A90 CUSHIONCUSHION
-
1101550-0612B BOLTBOLT
-
1234910-32E00 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
1302112-0516B SCREWSCREW
-
1434938-14D30 GUIDE, CABLE NO.2GUIDE, CABLE NO.2
-
1509116-06167 BOLT (6X20)BOLT (6X20)
-
1634938-14D21 GUIDE, CABLE NO.1GUIDE, CABLE NO.1
-
1702142-0616B SCREWSCREW
-
1809160-06109 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
1909169-06053 WASHERWASHER
-
2008310-0006B NUTNUT
-
2136380-32E10 BOX ASSY, PILOT LAMP (INCL. 22-28)BOX ASSY, PILOT LAMP (INCL. 22-28)
-
2236394-32E00 SOCKET, PILOT BOXSOCKET, PILOT BOX
-
2309471-12118 BULB (13.5V,2W)BULB (13.5V,2W)
-
2403511-1435B SCREWSCREW
-
2536382-32E00 HOLDER, PILOT BOXHOLDER, PILOT BOX
-
2609139-06029 SCREW (6X25)SCREW (6X25)
-
2709180-04024 SPACER (4.5X6.5X25)SPACER (4.5X6.5X25)
-
2809180-06251 SPACER (6.1X8X15.5)SPACER (6.1X8X15.5)
