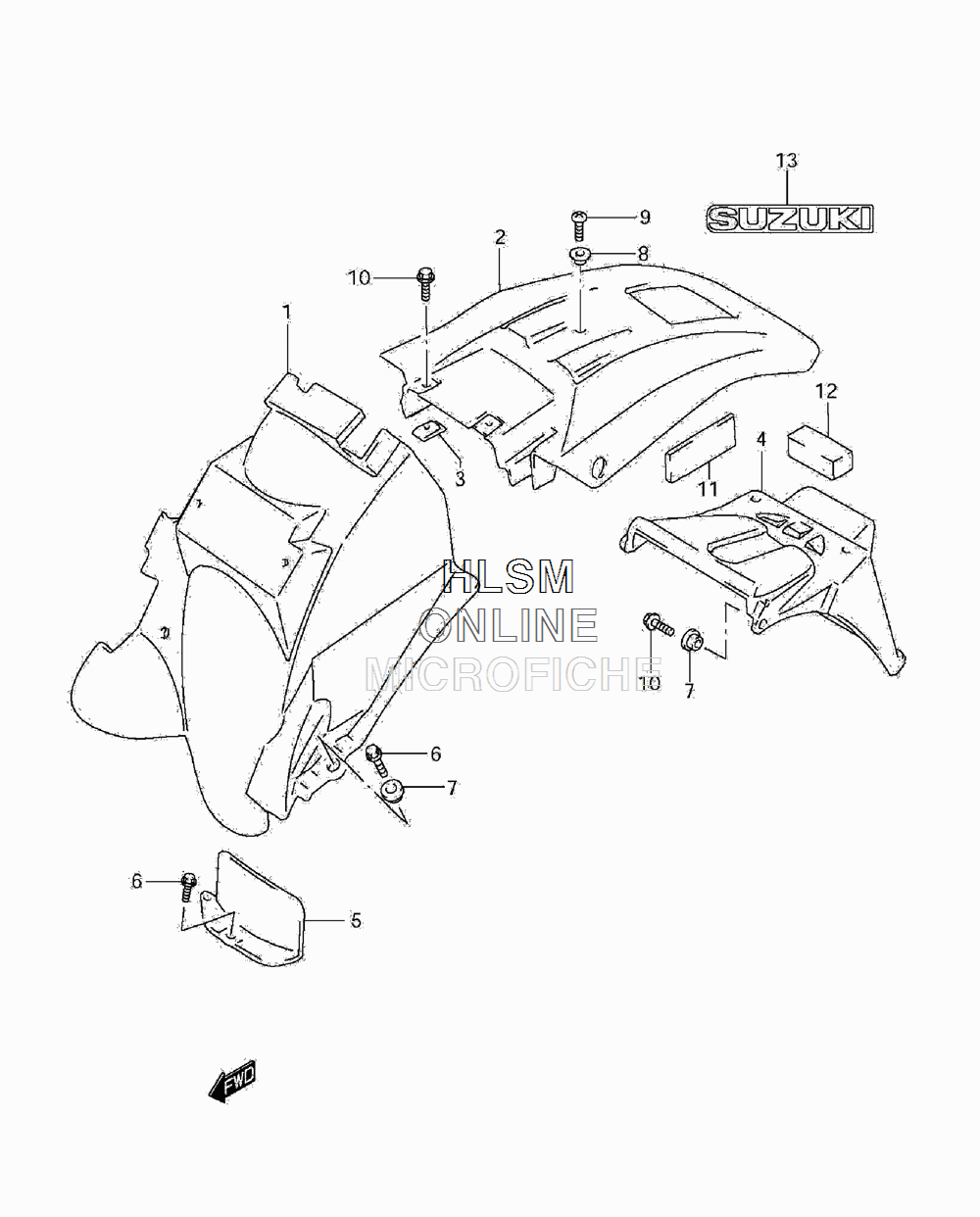

FENDER - REAR для Suzuki DR-650SEL1 - 2011 года выпуска
-
№АртикулНазвание
-
163112-32E00 BODY, REAR FENDER FRONTBODY, REAR FENDER FRONT
-
263113-32E30-019 BODY, REAR FENDER (BLACK) (019)BODY, REAR FENDER (BLACK) (019)
-
263113-32E30-30H BODY, REAR FENDER (WHITE) (30H)BODY, REAR FENDER (WHITE) (30H)
-
347153-19C01 NUT, FENDER REARNUT, FENDER REAR
-
463311-32E00 EXTENSION, REAR FENDEREXTENSION, REAR FENDER
-
563411-32E00 MUD GUARD, REAR FENDERMUD GUARD, REAR FENDER
-
609113-06001 BOLT (6X16)BOLT (6X16)
-
709169-06073 WASHERWASHER
-
809169-06053 WASHER, REARWASHER, REAR
-
909139-06067 SCREW (6X16)SCREW (6X16)
-
1001550-0616B BOLTBOLT
-
1163118-32E00 CUSHION, REAR FENDERCUSHION, REAR FENDER
-
1294475-21E00 CUSHION, EXTENSIONCUSHION, EXTENSION
-
1368177-04A00-CT5 EMBLEM (FOR 019)EMBLEM (FOR 019)
-
1368177-04A00-FH7 EMBLEM (FOR 30H)EMBLEM (FOR 30H)
