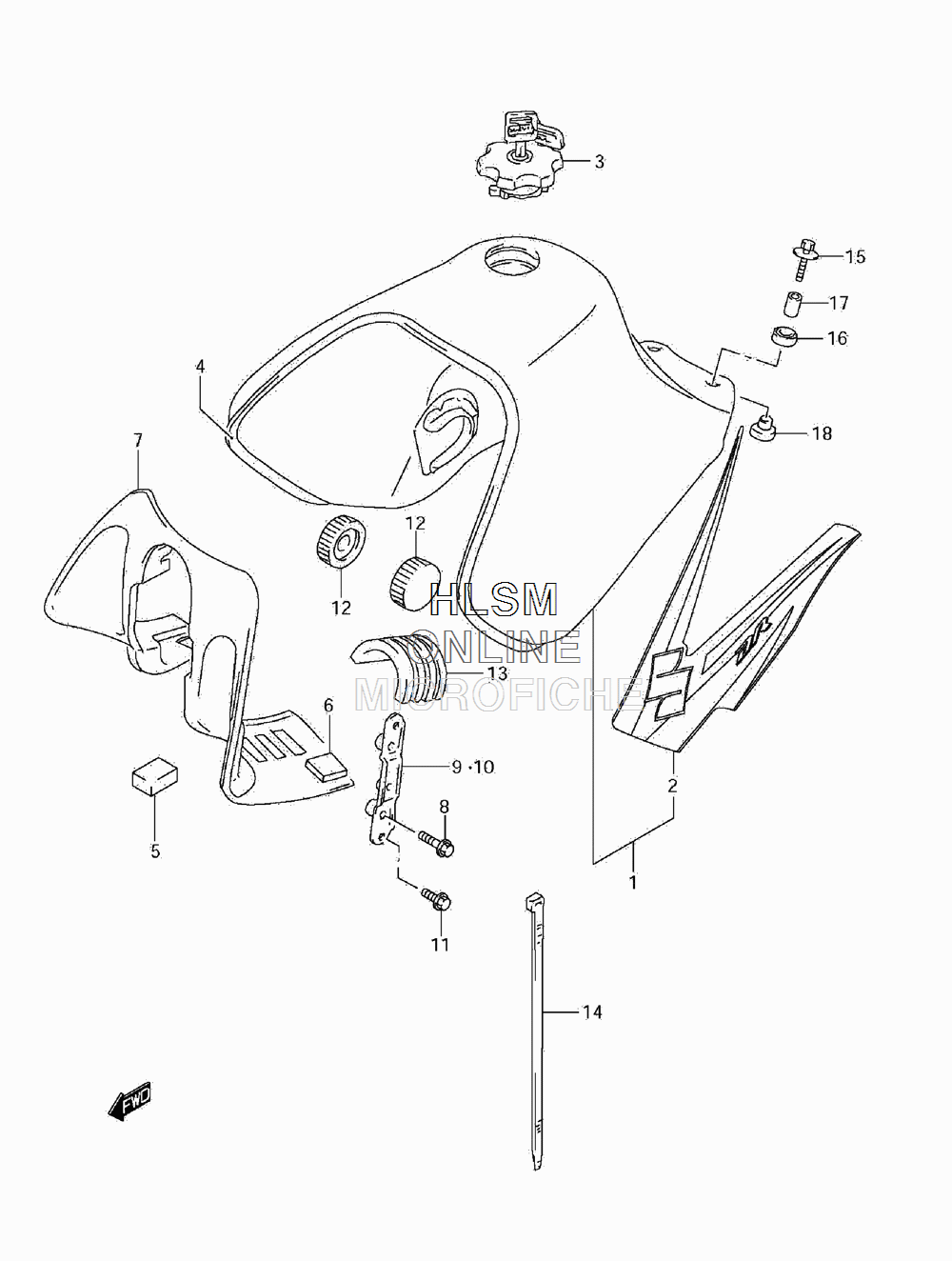

FUEL TANK для Suzuki DR-650SEL1 - 2011 года выпуска
-
№АртикулНазвание
-
144100-32ER0-3WX TANK ASSY, FUEL (INC 2) (BLACK) (3WX FOR 019)TANK ASSY, FUEL (INC 2) (BLACK) (3WX FOR 019)
-
144100-32ER0-5UX TANK ASSY, FUEL (INC 2) (WHITE) (5UX FOR 30H)TANK ASSY, FUEL (INC 2) (WHITE) (5UX FOR 30H)
-
268110-32EC0-HLT TAPE SET (FOR 3WX)TAPE SET (FOR 3WX)
-
268110-32EC0-HLU TAPE SET (FOR 5UX)TAPE SET (FOR 5UX)
-
344200-13830 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
468241-32E00 MOLDINGMOLDING
-
551827-01A00 CUSHIONCUSHION
-
644831-17B00 CUSHION, TANK COVERCUSHION, TANK COVER
-
744271-32E00 COVER, FRONTCOVER, FRONT
-
809116-06210 BOLT (6X12)BOLT (6X12)
-
944280-32E00 BRACKET, FRONT COVER RIGHT HANDBRACKET, FRONT COVER RIGHT HAND
-
1044290-32E00 BRACKET, FRONT COVER LEFT HANDBRACKET, FRONT COVER LEFT HAND
-
1101550-0625B BOLTBOLT
-
1244511-12D00 CUSHION, FRONTCUSHION, FRONT
-
1344541-13E00 CUSHION, UPPER REARCUSHION, UPPER REAR
-
1409407-25402 CLAMP (L:248)CLAMP (L:248)
-
1509116-06214 BOLT (6X30)BOLT (6X30)
-
1609320-14022 CUSHIONCUSHION
-
1709180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1809320-10020 CUSHIONCUSHION
