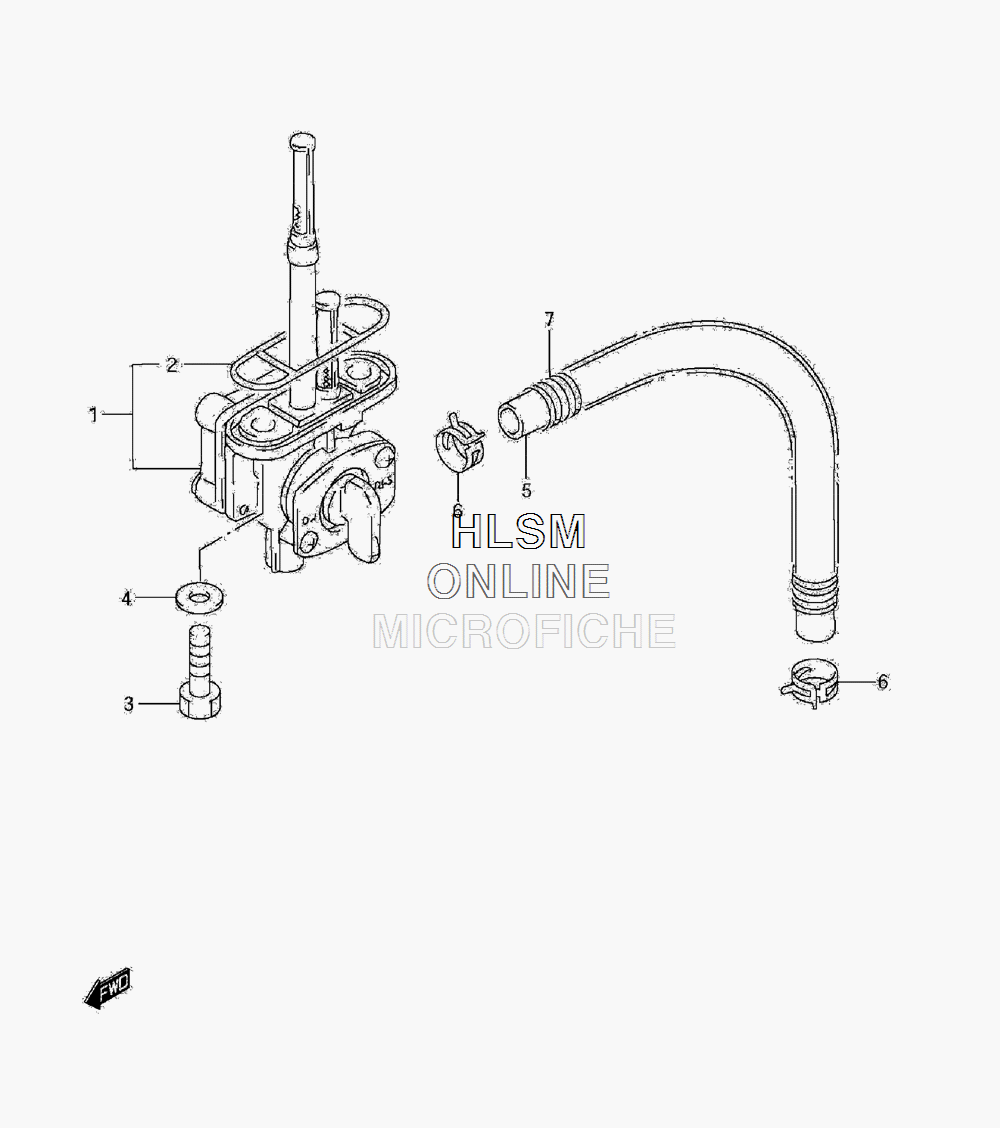

FUEL COCK ASSY. для Suzuki DR-650SEL1 - 2011 года выпуска
-
№АртикулНазвание
-
144300-32E00 COCK ASSY, FUEL (INCL. 2)COCK ASSY, FUEL (INCL. 2)
-
244348-87420 O RINGO RING
-
309128-06006 BOLT (6X20)BOLT (6X20)
-
409168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
544421-32EA0 HOSE, FUELHOSE, FUEL
-
609401-10409 CLIPCLIP
-
709440-13041 SPRINGSPRING
