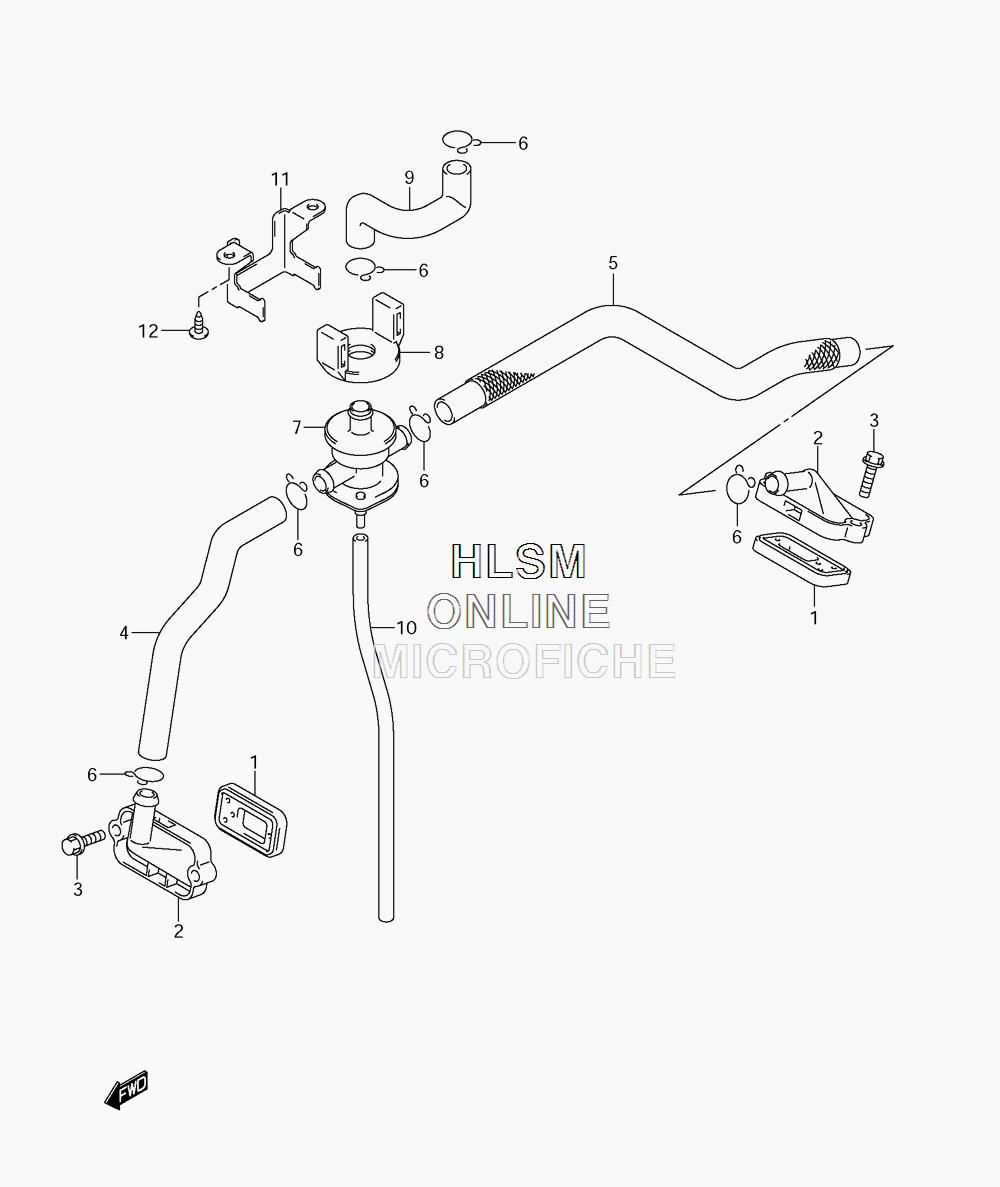

2ND AIR для Suzuki DL1000 V-Strom 1000 - 2012 года выпуска
-
№АртикулНазвание
-
118450-06G00 VALVE ASSY, 2ND AIR REEDVALVE ASSY, 2ND AIR REED
-
218531-06G01 COVER, 2ND AIR REED VALVECOVER, 2ND AIR REED VALVE
-
309103-06201 BOLT (6X20)BOLT (6X20)
-
418461-06G00 HOSE, 2ND AIR VALVE FRONTHOSE, 2ND AIR VALVE FRONT
-
518471-06G00 HOSE, 2ND AIR VALVE REARHOSE, 2ND AIR VALVE REAR
-
609401-15101 CLIPCLIP
-
718510-35F00 VALVE ASSY, AIR CUTVALVE ASSY, AIR CUT
-
818517-06G10 CUSHION, 2ND AIR CLEANERCUSHION, 2ND AIR CLEANER
-
918711-06G10 HOSE, 2ND AIR CLEANERHOSE, 2ND AIR CLEANER
-
1013697-02A00 HOSE, 2ND AIR VALVE VACUUMHOSE, 2ND AIR VALVE VACUUM
-
1118610-06G00 BRACKET, 2ND AIR VALVEBRACKET, 2ND AIR VALVE
-
1203541-0612B SCREWSCREW
