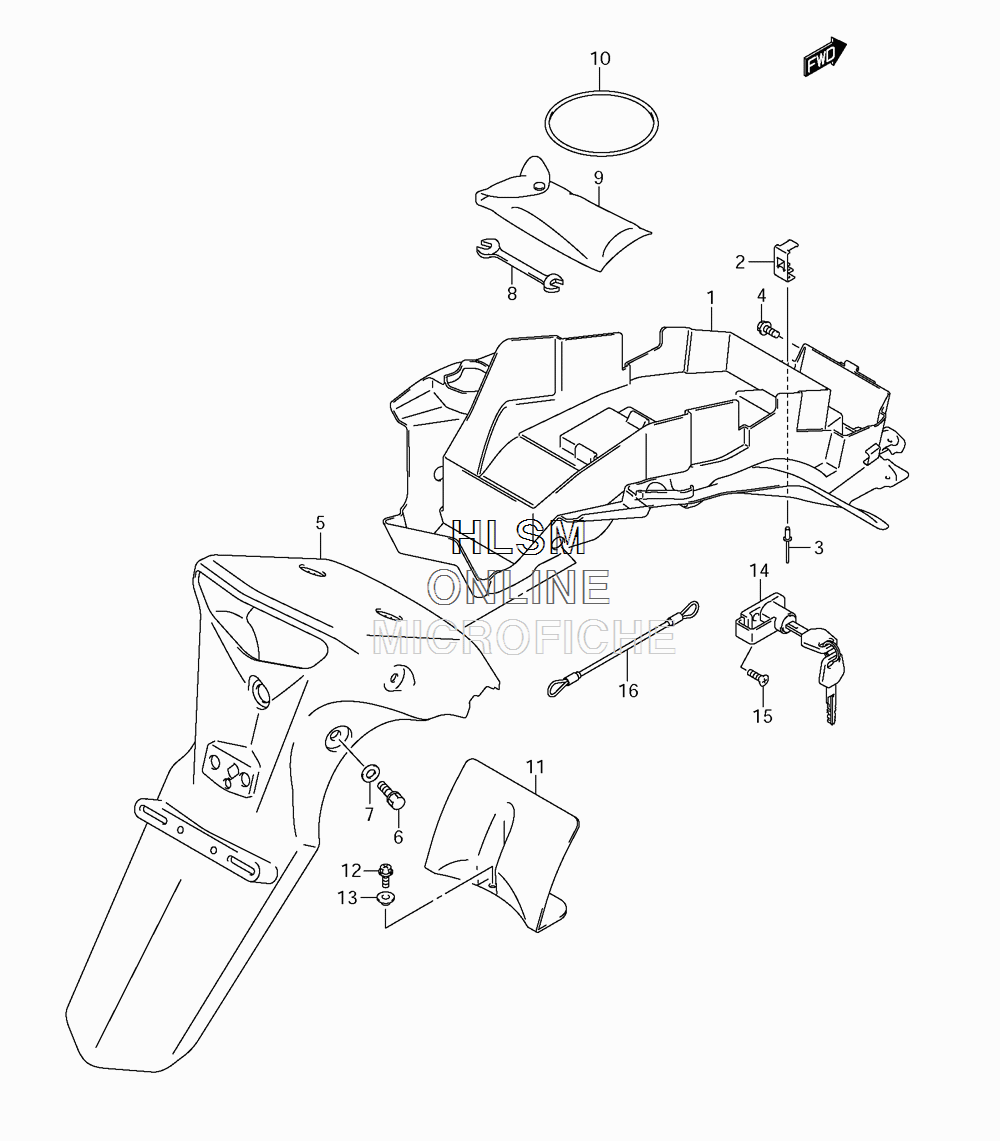

FENDER - REAR для Suzuki DL1000 V-Strom 1000 - 2012 года выпуска
-
№АртикулНазвание
-
163111-06G10 FENDER, REAR FRONTFENDER, REAR FRONT
-
247412-06G01 BRACKET, FUEL CUT SENSORBRACKET, FUEL CUT SENSOR
-
309229-04020 RIVETRIVET
-
409116-06210 BOLT (6X12)BOLT (6X12)
-
563112-06G10-291 FENDER, REAR (BLACK)FENDER, REAR (BLACK)
-
601547-0612B BOLTBOLT
-
709160-06156 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
809813-00027 OPEN SPANNER (8X10)OPEN SPANNER (8X10)
-
909800-21035 TOOL ASSYTOOL ASSY
-
1009280-63003 O RING (D:3.5,ID:62.6)O RING (D:3.5,ID:62.6)
-
1163421-19F00 MUD GUARD, REAR FENDER LOWERMUD GUARD, REAR FENDER LOWER
-
1202162-0616B BOLTBOLT
-
1309169-06071 WASHERWASHER
-
1495700-42820 LOCK ASSY, HELMETLOCK ASSY, HELMET
-
1502122-0620B SCREWSCREW
-
1695740-06G00 CABLE, HELMET LOCKCABLE, HELMET LOCK
