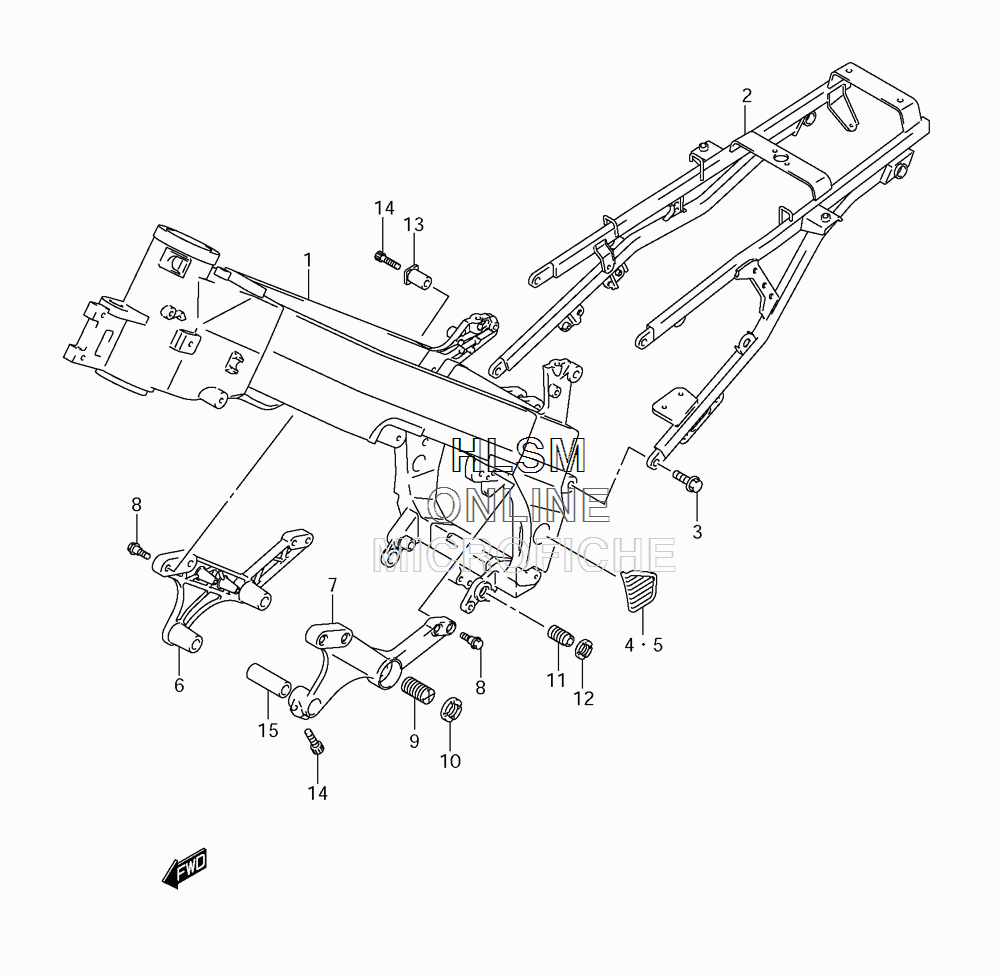

FRAME для Suzuki DL1000 V-Strom 1000 - 2012 года выпуска

№

Артикул

Название
1

41100-06G03-YAP FRAME (BLACK)

FRAME (BLACK)

28 397 200 ₽
2

41200-06G00 RAIL, SEAT

RAIL, SEAT

130 ₽
3

09103-10379 BOLT (10X30)

BOLT (10X30)

650 ₽
4

43585-27G10 COVER, PIVOT RIGHT HAND

COVER, PIVOT RIGHT HAND

3 630 ₽
5

43595-27G00 COVER, PIVOT LEFT HAND

COVER, PIVOT LEFT HAND

3 630 ₽
6

41911-06G20-YAP BRACKET, MOUNT RIGHT HAND (BLACK)

BRACKET, MOUNT RIGHT HAND (BLACK)

1 955 200 ₽
7

41912-06G20-YAP BRACKET, MOUNT LEFT HAND (BLACK)

BRACKET, MOUNT LEFT HAND (BLACK)

1 955 200 ₽
8

09106-08175 BOLT (8X30)

BOLT (8X30)

590 ₽
9

41923-16G00 BOLT, ADJUSTER CENTER

BOLT, ADJUSTER CENTER

4 480 ₽
10

41922-19F00 NUT, ADJUSTER CENTER

NUT, ADJUSTER CENTER

2 710 ₽
11

41921-16G00 BOLT, ADJUSTER LOWER

BOLT, ADJUSTER LOWER

3 360 ₽
12

41922-33E00 NUT, ADJUSTER LOWER

NUT, ADJUSTER LOWER

3 220 ₽
13

41941-19F01 SPACER, ADJUSTER UPPER

SPACER, ADJUSTER UPPER

5 770 ₽
14

09106-08170 BOLT (8X32)

BOLT (8X32)

590 ₽
15

41198-02F00 SPACER, HEAD FRONT LEFT HAND

SPACER, HEAD FRONT LEFT HAND

5 000 ₽
