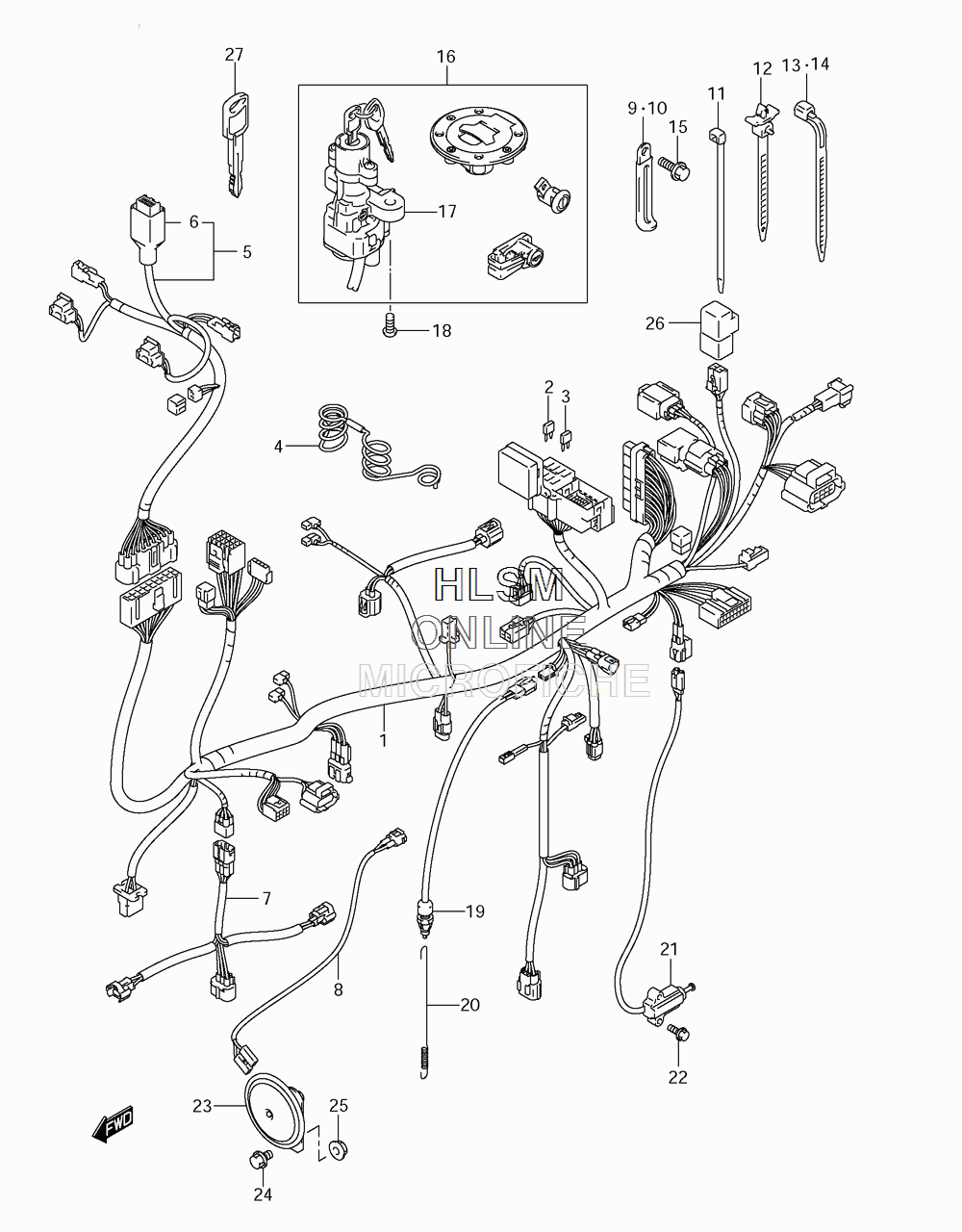

ELECTRICAL - WIRING HARNESS для Suzuki DL1000 V-Strom 1000 - 2012 года выпуска
-
№АртикулНазвание
-
136610-06G70 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
436619-06G01 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
536620-27G30 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
636618-18G10 COVER, SPEEDOMETERCOVER, SPEEDOMETER
-
736859-06G00 WIRE, INJECTOR LEADWIRE, INJECTOR LEAD
-
836852-06G00 WIRE, HORN LEADWIRE, HORN LEAD
-
909404-06429 CLAMP (L:45)CLAMP (L:45)
-
1009404-06433 CLAMP (L:80)CLAMP (L:80)
-
1109407-14407 CLAMP (L:145)CLAMP (L:145)
-
1209407-17402 CLAMPCLAMP
-
1309407-11401 CLAMP (L:95)CLAMP (L:95)
-
1409407-14403 CLAMP (L:125)CLAMP (L:125)
-
1501547-0610B BOLTBOLT
-
1637000-07890 LOCK SETLOCK SET
-
1737100-06G30 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1809139-08016 BOLT (8X20)BOLT (8X20)
-
1937740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2043259-06G00 SPRING, STOP LAMPSPRING, STOP LAMP
-
2137840-06G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2201550-0616B BOLTBOLT
-
2338500-41F00 HORN ASSYHORN ASSY
-
2401550-0812B BOLTBOLT
-
2508316-1008B NUTNUT
-
2638740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2737146-33E00 KEY, BLANKKEY, BLANK
