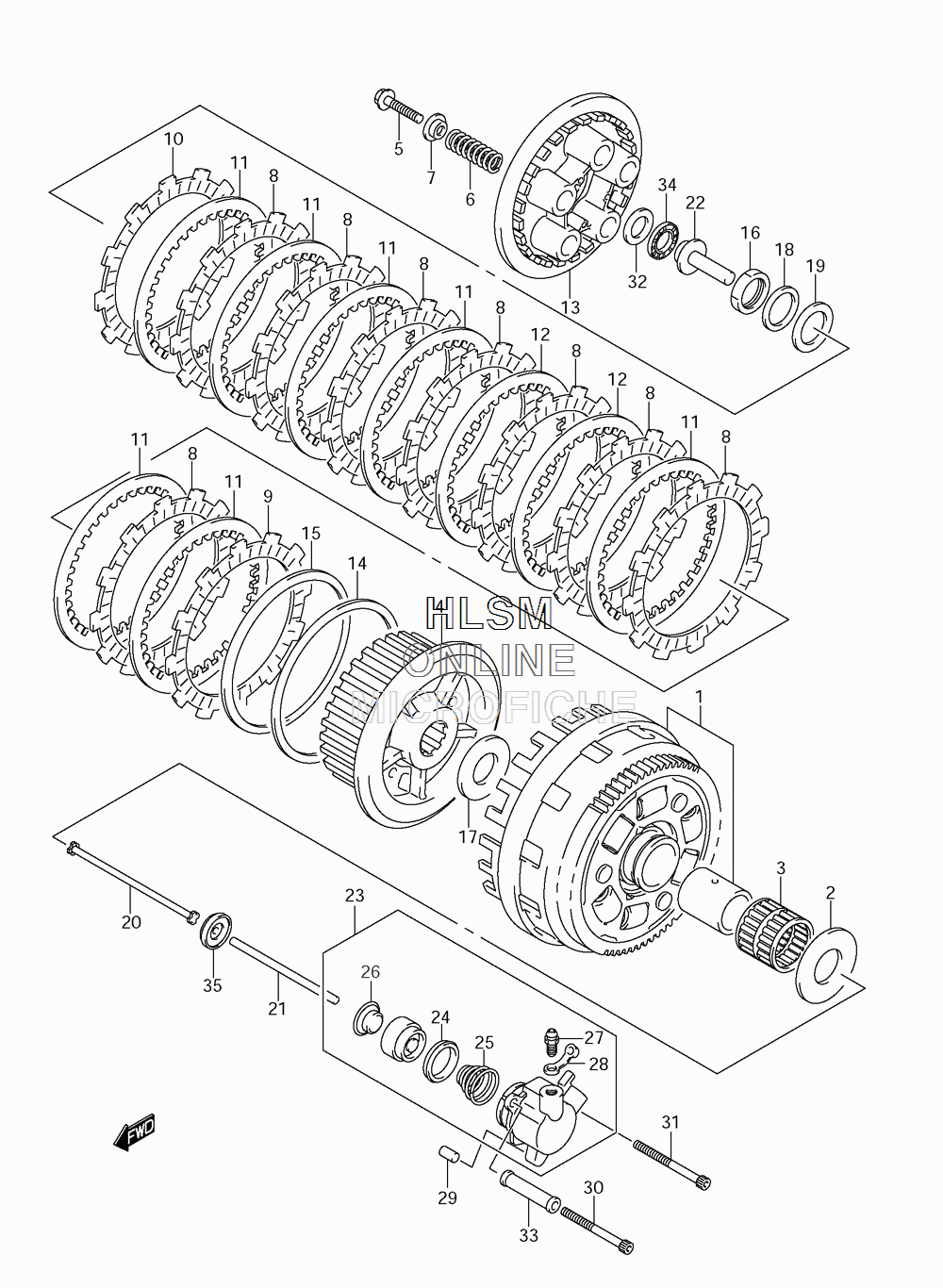

CLUTCH для Suzuki DL1000 V-Strom 1000 - 2012 года выпуска
-
№АртикулНазвание
-
121200-06811 GEAR ASSY, PRIMARY DRIVENGEAR ASSY, PRIMARY DRIVEN
-
209160-25074 WASHER (25X52X2.5)WASHER (25X52X2.5)
-
309263-35013 BEARING (35X40X39.8)BEARING (35X40X39.8)
-
421410-06G00 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
521412-06G00 BOLT, SPRING SUPPORTBOLT, SPRING SUPPORT
-
621413-06G10 SPRING, CLUTCHSPRING, CLUTCH
-
721414-29F00 WASHERWASHER
-
821441-24F20 PLATE, CLUTCH DRIVE NO.1PLATE, CLUTCH DRIVE NO.1
-
921442-24F00 PLATE, CLUTCH DRIVE NO.2PLATE, CLUTCH DRIVE NO.2
-
1021441-24F10 PLATE, CLUTCH DRIVE NO.3PLATE, CLUTCH DRIVE NO.3
-
1121451-24F00 PLATE, CLUTCH DRIVENPLATE, CLUTCH DRIVEN
-
1221451-24F10 PLATE, CLUTCH DRIVENPLATE, CLUTCH DRIVEN
-
1321462-06G00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1421471-06G00 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1521472-06G00 WASHER, CLUTCH PLATE WAVEWASHER, CLUTCH PLATE WAVE
-
1609159-24010 NUTNUT
-
1709160-25056 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
1809164-24006 WASHERWASHER
-
1909181-25223 SHIM (25X38X1)SHIM (25X38X1)
-
2023110-27A00 ROD, CLUTCH PUSH RIGHT HANDROD, CLUTCH PUSH RIGHT HAND
-
2123111-26D00 ROD, CLUTCH PUSH LEFT HANDROD, CLUTCH PUSH LEFT HAND
-
2223121-31E00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2323160-06G02 CYLINDER, CLUTCH RELEASECYLINDER, CLUTCH RELEASE
-
2423163-06B00 CUPCUP
-
2523164-05A00 SPRINGSPRING
-
2623166-06G00 COVER, DUSTCOVER, DUST
-
2759121-01A00 BLEEDERBLEEDER
-
2859122-01A00 CAP, BLEEDERCAP, BLEEDER
-
2904221-08149 PINPIN
-
3007130-0665A BOLTBOLT
-
3107130-0670A BOLTBOLT
-
3209160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
3323171-06G00 SPACER, CLUTCH RELEASESPACER, CLUTCH RELEASE
-
3409263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
3509283-06008 OIL SEAL (6X34X10.5)OIL SEAL (6X34X10.5)
