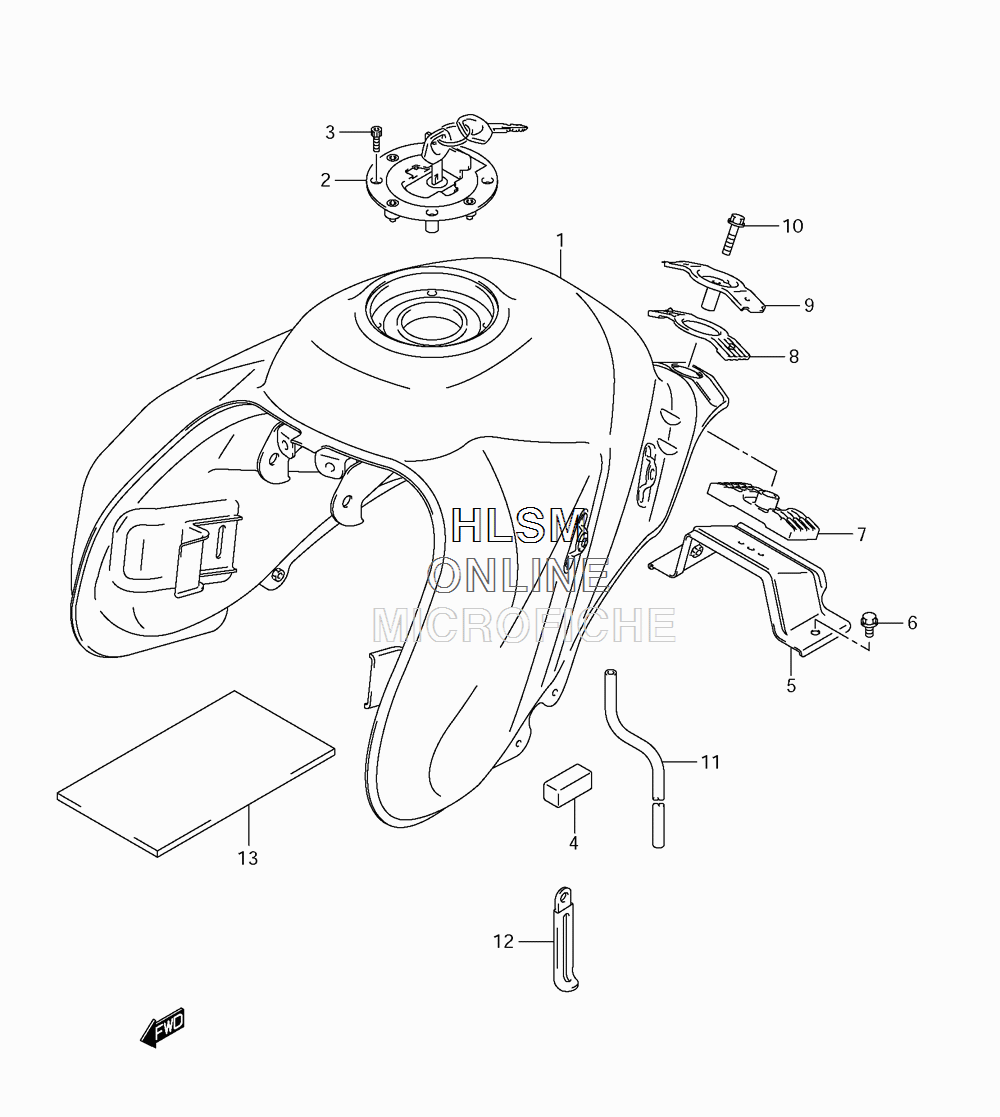

FUEL TANK для Suzuki DL1000 V-Strom 1000 - 2012 года выпуска
-
№АртикулНазвание
-
144100-06G50-YAY TANK, FUEL (BLACK)TANK, FUEL (BLACK)
-
144100-06G50-YVZ TANK, FUEL (RED)TANK, FUEL (RED)
-
244200-33830 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
309106-05017 BOLT (5X20)BOLT (5X20)
-
444541-06G00 CUSHION, SIDECUSHION, SIDE
-
544550-06G01 BRACKET, REAR LOWERBRACKET, REAR LOWER
-
601550-0816A BOLTBOLT
-
744545-06G00 CUSHION, LOWERCUSHION, LOWER
-
844542-06G00 CUSHION, UPPERCUSHION, UPPER
-
944530-06G00 BRACKET, UPPERBRACKET, UPPER
-
1001550-0835B BOLTBOLT
-
1144423-06G00 HOSE, WATER DRAINHOSE, WATER DRAIN
-
1209404-06429 CLAMP (L:45)CLAMP (L:45)
-
1344194-06G00 SHIELD, TANK CENTERSHIELD, TANK CENTER
