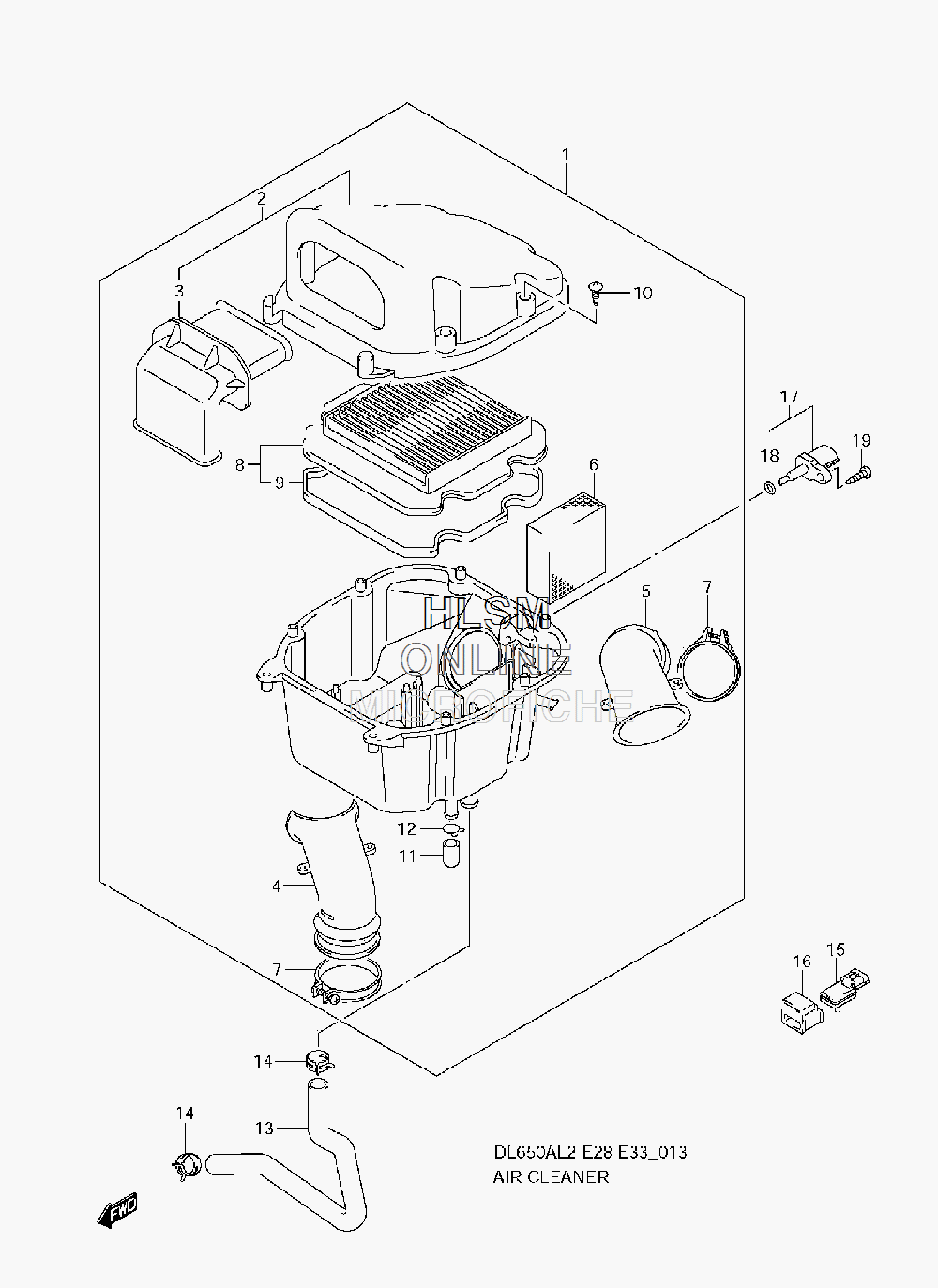

AIR CLEANER для Suzuki DL650AL2 V-Strom 650 ABS - 2012 года выпуска
-
№АртикулНазвание
-
113700-11J00 CLEANER ASSY, AIR (INCL. 2-12)CLEANER ASSY, AIR (INCL. 2-12)
-
213740-11J00 CAP, AIR CLEANER (INCL. 3)CAP, AIR CLEANER (INCL. 3)
-
313891-27G01 TUBE, INLETTUBE, INLET
-
413881-27G10 TUBE, OUTLETTUBE, OUTLET
-
513882-27G10 TUBE, OUTLETTUBE, OUTLET
-
613788-11J00 FILTER, BREATHERFILTER, BREATHER
-
713826-44H01 CLAMP, OUTLET TUBE REARCLAMP, OUTLET TUBE REAR
-
813780-27G10 FILTER, AIR CLEANER (INCL. 9)FILTER, AIR CLEANER (INCL. 9)
-
913746-06G00 GASKETGASKET
-
1003141-0516A SCREWSCREW
-
1113878-10G00 PLUG, DRAINPLUG, DRAIN
-
1209401-14301 CLIPCLIP
-
1313850-11J00 TUBE, BREATHER CRANKCASETUBE, BREATHER CRANKCASE
-
1409401-20405 CLIPCLIP
-
1518591-41F00 SENSOR, PRESSURESENSOR, PRESSURE
-
1618595-41F00 HOLDERHOLDER
-
1713650-41F10 SENSOR AIR TEMP (INCL. 18)SENSOR AIR TEMP (INCL. 18)
-
1813655-41F10 O RINGO RING
-
1903511-0516A SCREWSCREW
