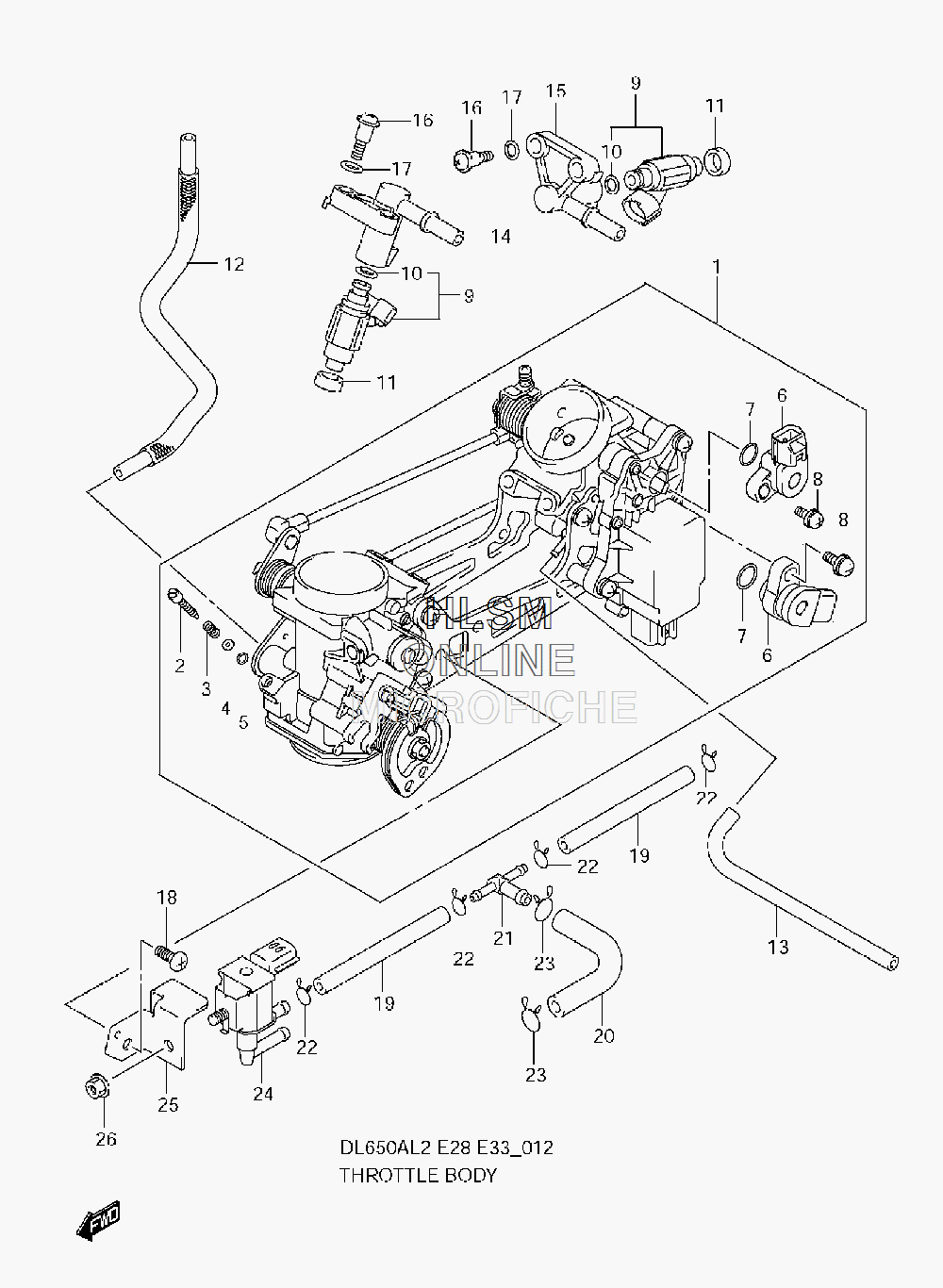

THROTTLE BODY для Suzuki DL650AL2 V-Strom 650 ABS - 2012 года выпуска
-
№АртикулНазвание
-
113405-11J10 THROTTLE BODY (INCL. 2-8)THROTTLE BODY (INCL. 2-8)
-
213269-33E00 SCREWSCREW
-
313268-48700 SPRING, THROTTLE SCREWSPRING, THROTTLE SCREW
-
413606-47A00 WASHERWASHER
-
513295-29900 O RINGO RING
-
613580-27G21 SENSOR ASSYSENSOR ASSY
-
713575-29G00 O RINGO RING
-
813605-02F00 SCREWSCREW
-
915710-44H00 INJECTOR ASSY (INCL. 10)INJECTOR ASSY (INCL. 10)
-
1015717-58B00 O RINGO RING
-
1115722-29G00 SEALSEAL
-
1213683-44H00 HOSEHOSE
-
1313683-44H10 HOSEHOSE
-
1415731-11J00 DELIVERY PIPEDELIVERY PIPE
-
1515732-11J00 DELIVERY PIPEDELIVERY PIPE
-
1613601-11J00 SCREW, DELIVERY PIPESCREW, DELIVERY PIPE
-
1713602-29G00 PACKINGPACKING
-
1813602-06128 SCREWSCREW
-
1913681-06G40 HOSEHOSE
-
2013683-44H30 HOSEHOSE
-
2113685-04F10 NIPPLENIPPLE
-
2213671-12C00 CLIPCLIP
-
2313671-48B10 CLIPCLIP
-
2418117-52G10 SOLENOID ASSYSOLENOID ASSY
-
2518119-44H00 BRACKETBRACKET
-
2608316-1006A NUTNUT
