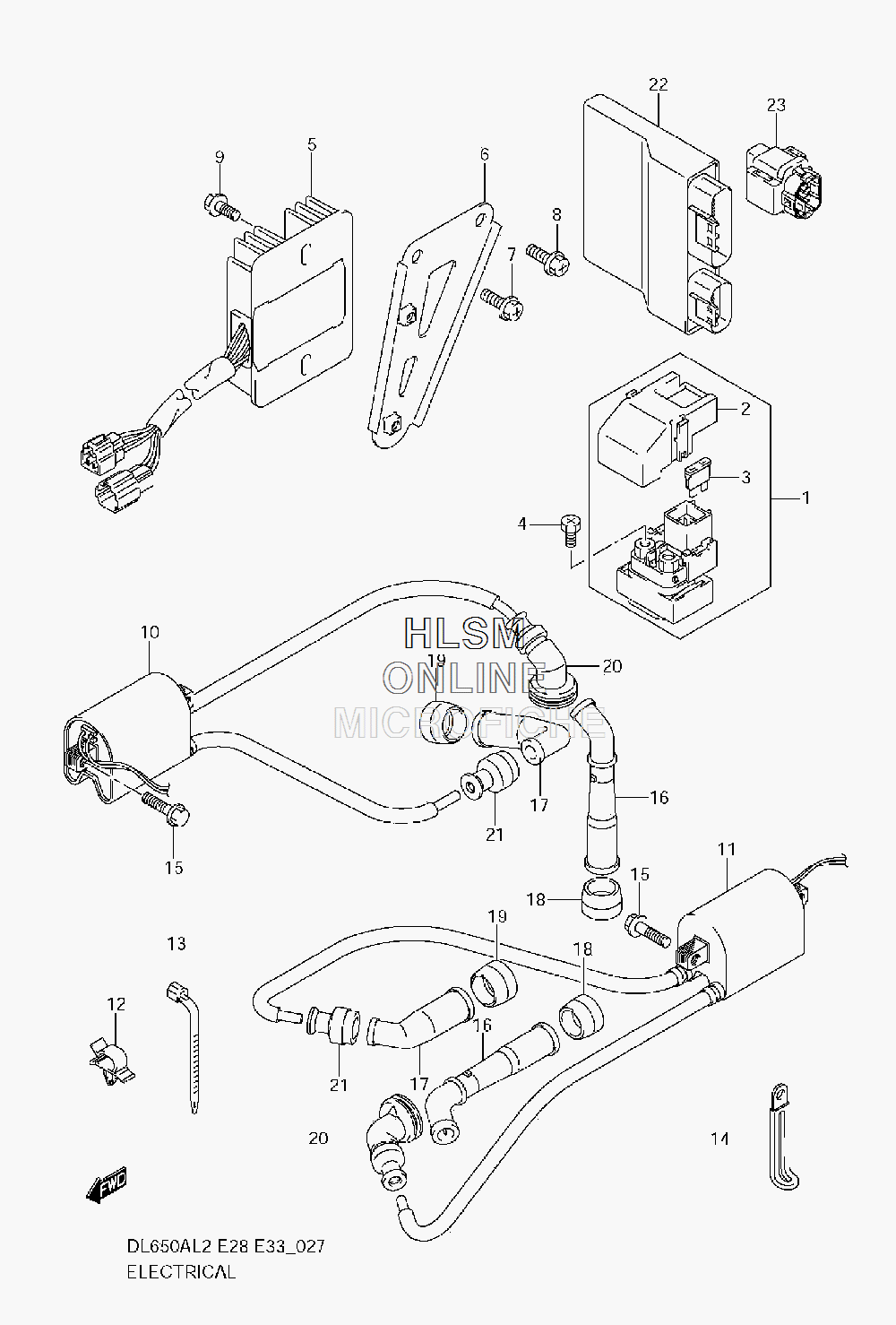

ELECTRICAL (CANADA) для Suzuki DL650AL2 V-Strom 650 ABS - 2012 года выпуска
-
№АртикулНазвание
-
131800-06G00 RELAY ASSY, STARTING MOTOR (INCL. 2, 3)RELAY ASSY, STARTING MOTOR (INCL. 2, 3)
-
231861-47E00 COVER, RELAY ASSYCOVER, RELAY ASSY
-
309481-30101 FUSE (30A)FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-47H10 RECTIFIER ASSYRECTIFIER ASSY
-
632830-11J00 BRACKET, RECTIFIERBRACKET, RECTIFIER
-
702162-0616A BOLTBOLT
-
802162-0610A BOLTBOLT
-
902162-0616A BOLTBOLT
-
1033410-27G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1133420-27G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1209403-10319 CLAMPCLAMP
-
1309407-18402 CLAMP (L:165)CLAMP (L:165)
-
1409404-06429 CLAMP (L:45)CLAMP (L:45)
-
1501547-0625A BOLTBOLT
-
1633510-17G00 CAP, SPARK PLUG FOR CENTERCAP, SPARK PLUG FOR CENTER
-
1733510-20E00 CAP, SPARK PLUG FOR SIDECAP, SPARK PLUG FOR SIDE
-
1833541-23E10 SEAL, SPARK PLUG CAP FOR CENTERSEAL, SPARK PLUG CAP FOR CENTER
-
1933541-47D00 SEAL, SPARK PLUG CAP FOR SIDESEAL, SPARK PLUG CAP FOR SIDE
-
2033542-17G01 SEAL, HIGH TENSION CORD FOR CENTERSEAL, HIGH TENSION CORD FOR CENTER
-
2133542-38B00 SEAL, HIGH TENSION CORD FOR SIDESEAL, HIGH TENSION CORD FOR SIDE
-
2232920-11J10 CONTROL UNIT, FICONTROL UNIT, FI
-
2333960-27G00 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
