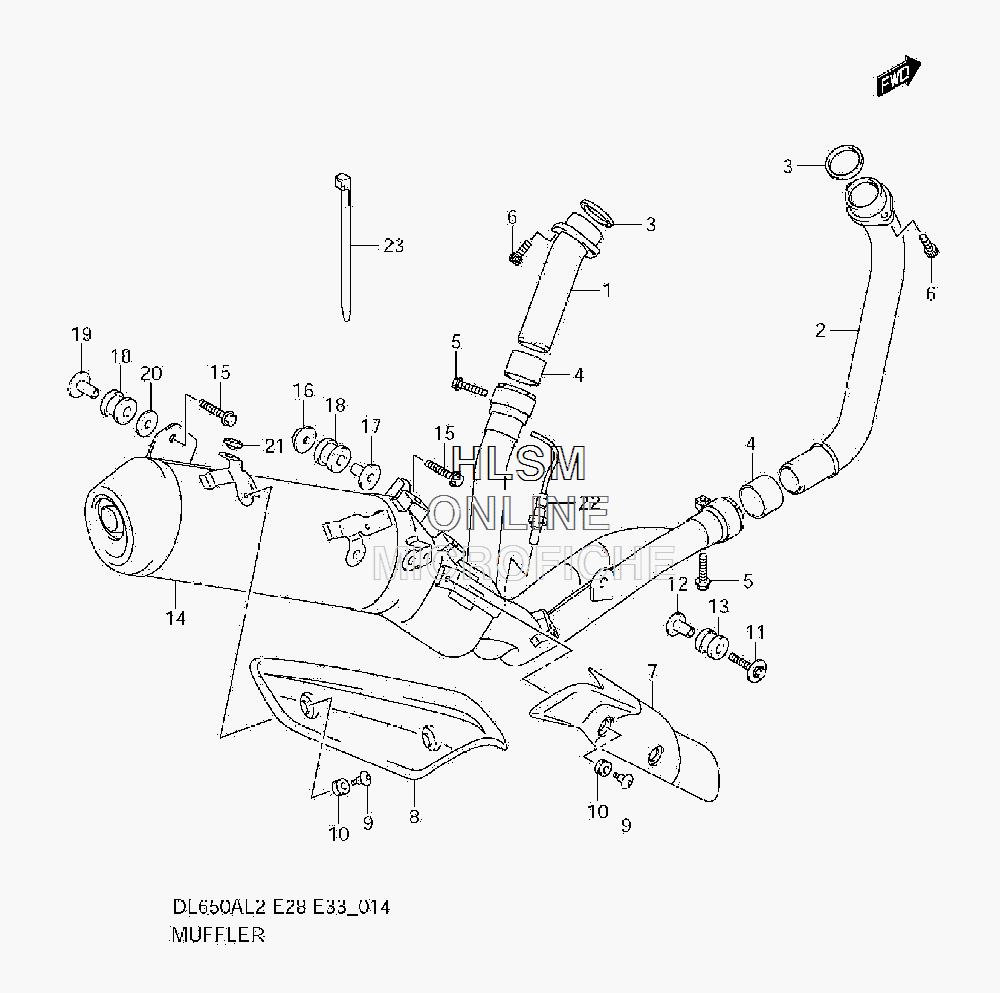

MUFFLER для Suzuki DL650AL2 V-Strom 650 ABS - 2012 года выпуска
-
№АртикулНазвание
-
114150-27G10 PIPE, EXHAUST REARPIPE, EXHAUST REAR
-
214160-17G10 PIPE, EXHAUST FRONTPIPE, EXHAUST FRONT
-
314181-22D01 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
414771-32E10 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
509103-08365 BOLT (8X35)BOLT (8X35)
-
609106-08165 BOLT (8X25)BOLT (8X25)
-
714771-11J00 COVER, MUFFLER FRONTCOVER, MUFFLER FRONT
-
814781-11J00-YUS COVER, MUFFLER (SILVER)COVER, MUFFLER (SILVER)
-
909139-06126 SCREW (6X20)SCREW (6X20)
-
1009320-08070 CUSHIONCUSHION
-
1109118-08152-A05 BOLT (8X45)BOLT (8X45)
-
1209180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
1309320-12048 CUSHIONCUSHION
-
1414305-11J00 MUFFLERMUFFLER
-
1509103-08358 BOLT (8X45)BOLT (8X45)
-
1614414-27G00 NUT, MUFFLER SPRTNUT, MUFFLER SPRT
-
1709180-08156 SPACER (8.6X12X27.1)SPACER (8.6X12X27.1)
-
1809320-12049 CUSHIONCUSHION
-
1914414-06G00 NUT, MUFFLER SPRTNUT, MUFFLER SPRT
-
2009160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
2109321-10018 CUSHIONCUSHION
-
2218213-17G01 SENSOR, OXYGENSENSOR, OXYGEN
-
2309407-14407 CLAMP (L:145)CLAMP (L:145)
