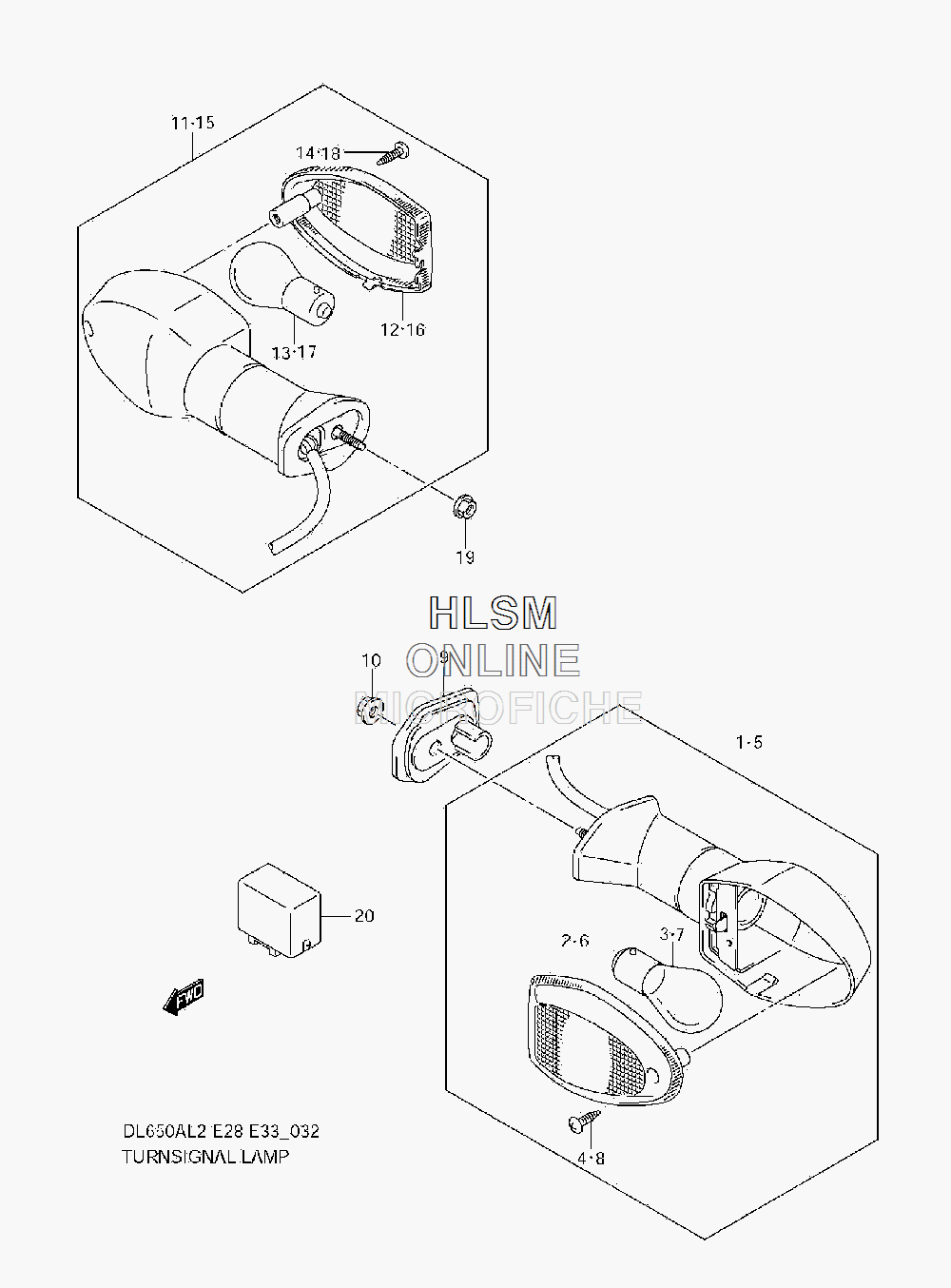

TURN SIGNAL ASSY. для Suzuki DL650AL2 V-Strom 650 ABS - 2012 года выпуска
-
№АртикулНазвание
-
135601-08J00 LAMP ASSY, FRONT TURNSIGNAL RIGHT HAND (INCL. 2-4))LAMP ASSY, FRONT TURNSIGNAL RIGHT HAND (INCL. 2-4))
-
235612-08J00 LENSLENS
-
309471-12045 BULB (12V,21W)BULB (12V,21W)
-
403211-0414B SCREWSCREW
-
535602-08J00 LAMP ASSY, FRONT TURNSIGNAL LEFT HAND (INCL. 6-8)LAMP ASSY, FRONT TURNSIGNAL LEFT HAND (INCL. 6-8)
-
635632-08J00 LENSLENS
-
709471-12045 BULB (12V,21W)BULB (12V,21W)
-
803211-0414B SCREWSCREW
-
935629-18G00 PLATE, FR TURNSIGNALPLATE, FR TURNSIGNAL
-
1008316-1005A NUTNUT
-
1135603-08J10 LAMP ASSY, REAR TURNSIGNAL RIGHT HAND (INCL. 13-14)LAMP ASSY, REAR TURNSIGNAL RIGHT HAND (INCL. 13-14)
-
1235632-08J00 LENSLENS
-
1309471-12045 BULB (12V,21W)BULB (12V,21W)
-
1403211-0414B SCREWSCREW
-
1535604-08J10 LAMP ASSY, REAR TURNSIGNAL LEFT HAND (INCL. 16-18)LAMP ASSY, REAR TURNSIGNAL LEFT HAND (INCL. 16-18)
-
1635612-08J00 LENSLENS
-
1709471-12045 BULB (12V,21W)BULB (12V,21W)
-
1803211-0414B SCREWSCREW
-
1908319-3105A NUTNUT
-
2038610-03F00 RELAY ASSY, TURNRELAY ASSY, TURN
