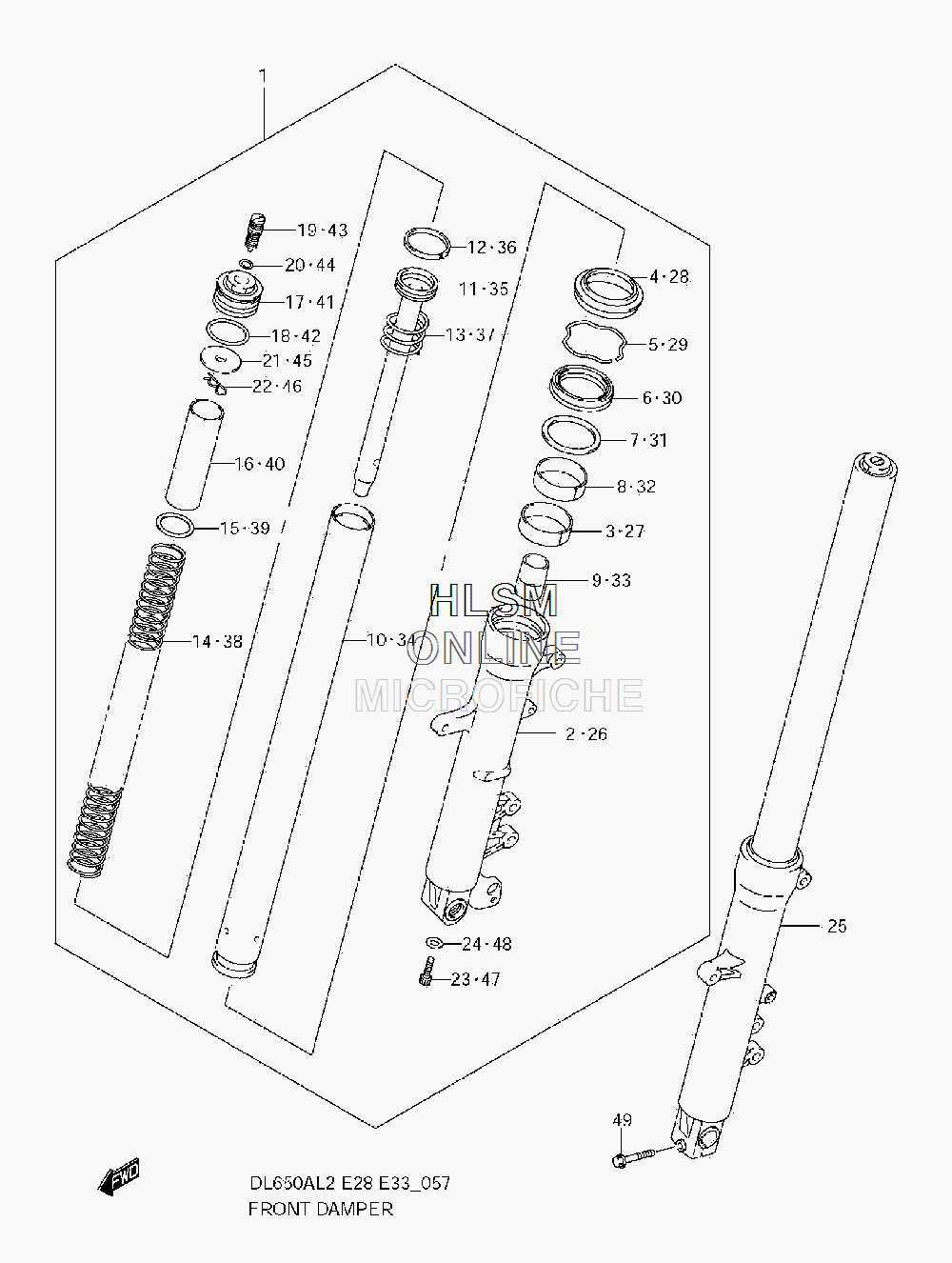

SUSPENSION - FRONT DAMPER для Suzuki DL650AL2 V-Strom 650 ABS - 2012 года выпуска
-
№АртикулНазвание
-
151103-11J00 DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 2-24)DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 2-24)
-
251131-11J00 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
351121-11J00 BUSH, SLIDEBUSH, SLIDE
-
451173-27G00 SEAL, DUSTSEAL, DUST
-
551556-38B00 RING, STOPPERRING, STOPPER
-
651553-47H00 SEAL, OILSEAL, OIL
-
751168-17C00 SPACER, SEALSPACER, SEAL
-
851152-47H00 BUSH, GUIDEBUSH, GUIDE
-
951195-27G00 PIECE, OIL LOCKPIECE, OIL LOCK
-
1051110-11J00 PIPE, FORKPIPE, FORK
-
1151146-11J00 PIPE SEATPIPE SEAT
-
1251196-27G00 RING, PISTONRING, PISTON
-
1351177-14D00 SPRING, REBOUNDSPRING, REBOUND
-
1451171-11J00 SPRING, FRONTSPRING, FRONT
-
1551186-17C00 SEAT, SPRING, LOWERSEAT, SPRING, LOWER
-
1651176-19C00 COLLAR, SPRINGCOLLAR, SPRING
-
1751189-27G00 BOLT, FORKBOLT, FORK
-
1851117-17C00 O RINGO RING
-
1951185-27G00 ADJUSTER BOLT, SPRINGADJUSTER BOLT, SPRING
-
2051187-14D00 O RINGO RING
-
2151186-12C00 SEAT, SPRINGSEAT, SPRING
-
2251188-32B00 PIN, SEAT SPRINGPIN, SEAT SPRING
-
2351147-48130 BOLTBOLT
-
2451148-31030 GASKETGASKET
-
2551104-11J00 DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 26-48)DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 26-48)
-
2651141-11J00 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
2751121-11J00 BUSH, SLIDEBUSH, SLIDE
-
2851173-27G00 SEAL, DUSTSEAL, DUST
-
2951556-38B00 RING, STOPPERRING, STOPPER
-
3051553-47H00 SEAL, OILSEAL, OIL
-
3151168-17C00 SPACER, SEALSPACER, SEAL
-
3251152-47H00 BUSH, GUIDEBUSH, GUIDE
-
3351195-27G00 PIECE, OIL LOCKPIECE, OIL LOCK
-
3451110-11J00 PIPE, FORKPIPE, FORK
-
3551146-11J00 PIPE SEATPIPE SEAT
-
3651196-27G00 RING, PISTONRING, PISTON
-
3751177-14D00 SPRING, REBOUNDSPRING, REBOUND
-
3851171-11J00 SPRING, FRONTSPRING, FRONT
-
3951186-17C00 SEAT, SPRING, LOWERSEAT, SPRING, LOWER
-
4051176-19C00 COLLAR, SPRINGCOLLAR, SPRING
-
4151189-27G00 BOLT, FORKBOLT, FORK
-
4251117-17C00 O RINGO RING
-
4351185-27G00 ADJUSTER BOLT, SPRINGADJUSTER BOLT, SPRING
-
4451187-14D00 O RINGO RING
-
4551186-12C00 SEAT, SPRINGSEAT, SPRING
-
4651188-32B00 PIN, SEAT SPRINGPIN, SEAT SPRING
-
4751147-48130 BOLTBOLT
-
4851148-31030 GASKETGASKET
-
4951328-27E30 BOLTBOLT
