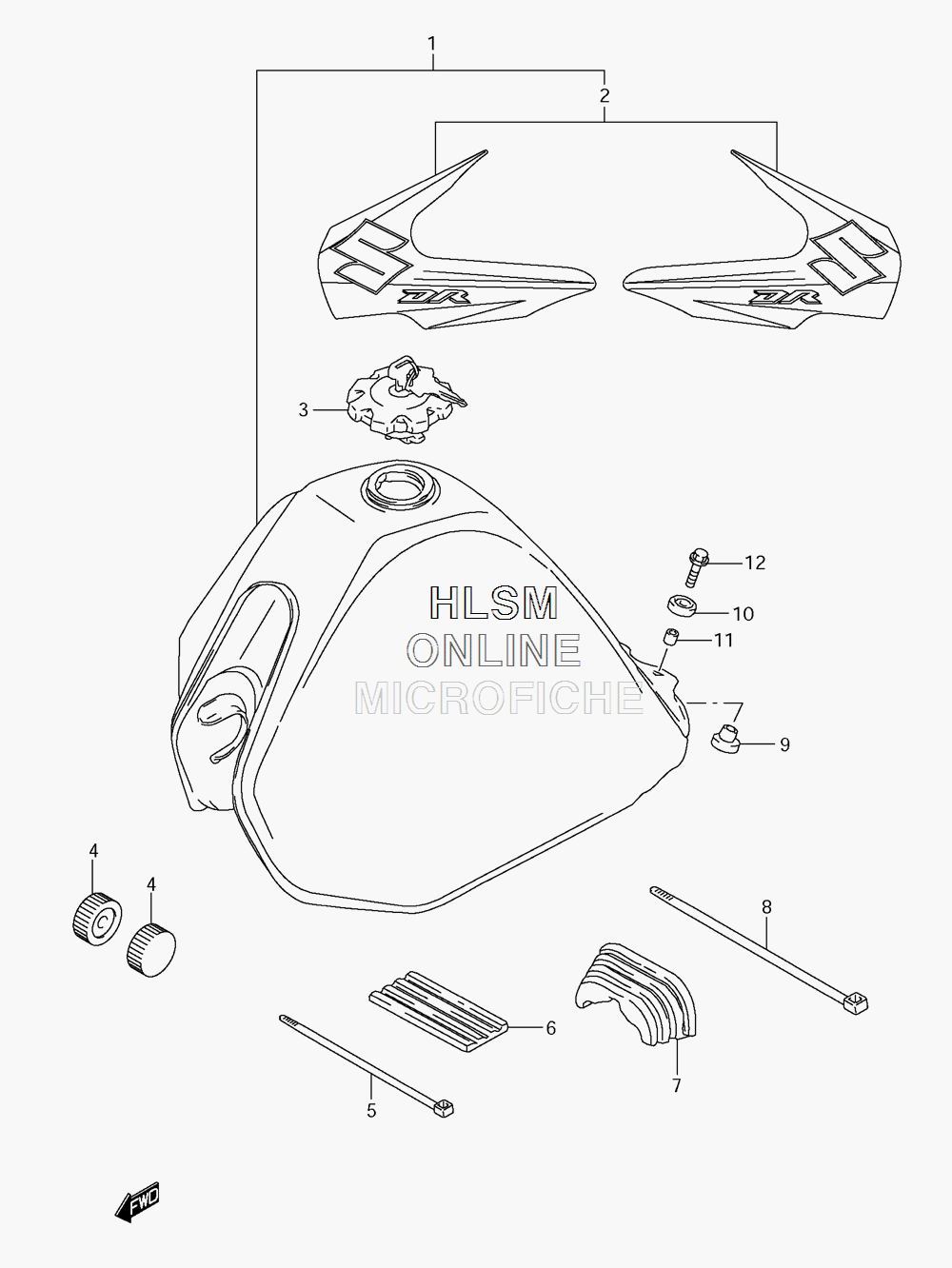

FUEL TANK для Suzuki DR-200SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
144100-42AJ1-3WX TANK ASSY, FUEL (3WX - BLACK)TANK ASSY, FUEL (3WX - BLACK)
-
144100-42AJ1-5UX TANK ASSY, FUEL (5UX - WHITE)TANK ASSY, FUEL (5UX - WHITE)
-
268110-42AC0-HLT ...TAPE SET (FOR 3WX)...TAPE SET (FOR 3WX)
-
268110-42AC0-HLU ...TAPE SET (FOR 5UX)...TAPE SET (FOR 5UX)
-
344200-12851 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
409329-10016 CUSHIONCUSHION
-
509407-25402 CLAMP (L:248)CLAMP (L:248)
-
644541-14500 CUSHION, FUEL TANK UPPERCUSHION, FUEL TANK UPPER
-
744542-14A00 CUSHION, FUEL TANK REARCUSHION, FUEL TANK REAR
-
809407-30402 CLAMP (L:300)CLAMP (L:300)
-
909320-10020 CUSHIONCUSHION
-
1009320-14013 CUSHIONCUSHION
-
1109180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1201570-0630B BOLTBOLT
