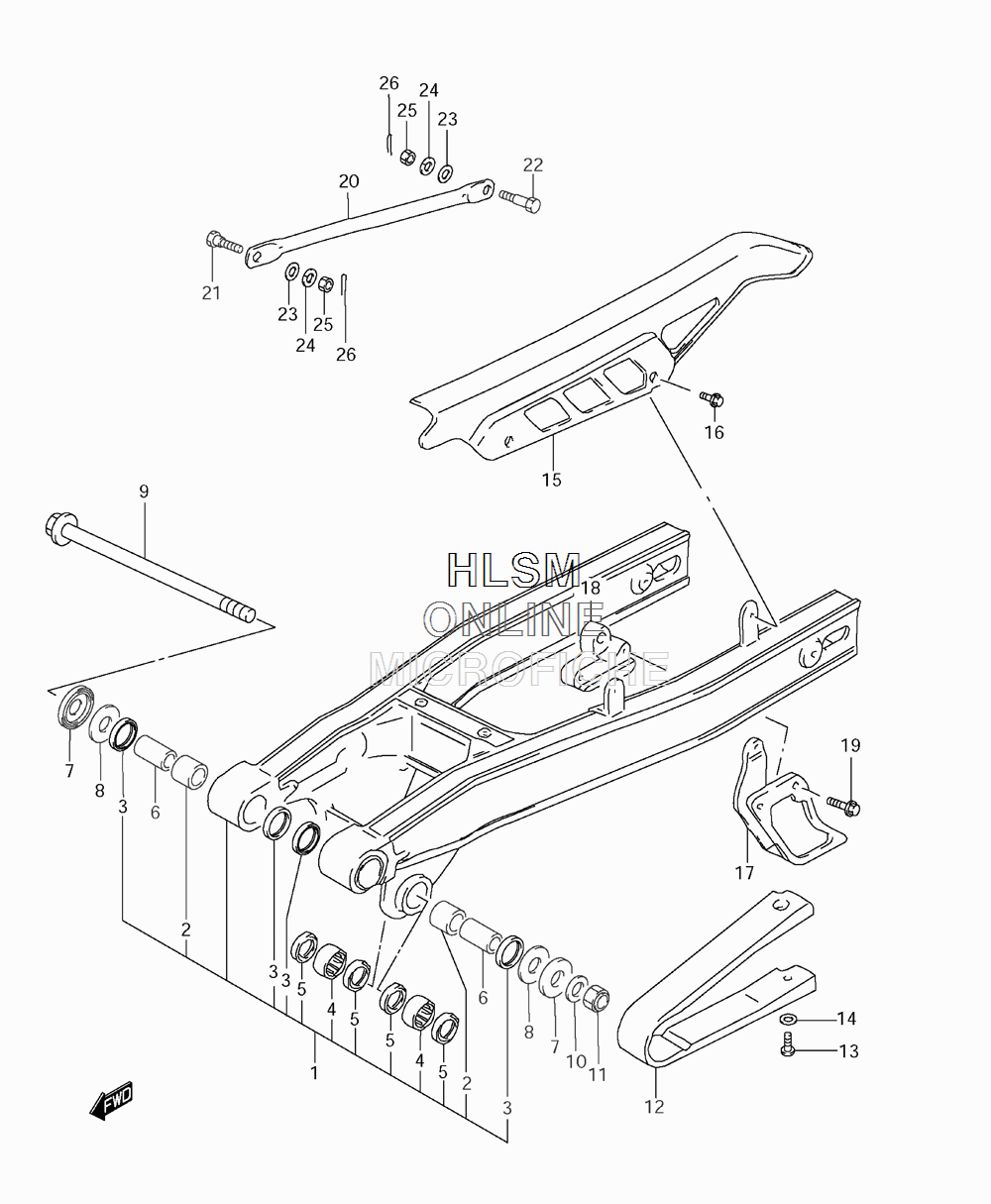

REAR SWINGARM для Suzuki DR-200SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
161100-42840 SWINGINGARM SET, REARSWINGINGARM SET, REAR
-
261261-13700 ...BUSHING, PIVOT...BUSHING, PIVOT
-
309283-20031 ...OIL SEAL (20X27X5)...OIL SEAL (20X27X5)
-
409263-20053 ...BEARING (20X27X25)...BEARING (20X27X25)
-
562647-44A00 ...SEAL, DUST...SEAL, DUST
-
661251-42A00 SPACER, PIVOTSPACER, PIVOT
-
761262-40400 DUST SEALDUST SEAL
-
808211-14322 THRUST WASHERTHRUST WASHER
-
961211-26B01 SHAFT, PIVOTSHAFT, PIVOT
-
1009160-14057 WASHER (14.5X24X2.3)WASHER (14.5X24X2.3)
-
1109159-14019 NUTNUT
-
1261273-42A01 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1302142-0620B SCREWSCREW
-
1409169-06037 WASHERWASHER
-
1561311-01A03 CASE, CHAINCASE, CHAIN
-
1609116-06096 BOLT (6X10)BOLT (6X10)
-
1761341-13A10 GUIDE, CHAINGUIDE, CHAIN
-
1861345-42A00 RUBBER, CHAIN GUIDERUBBER, CHAIN GUIDE
-
1901550-0620A BOLTBOLT
-
2064311-42A00-13L TORQUE LINK, REAR (13L - SILVER)TORQUE LINK, REAR (13L - SILVER)
-
2109111-08088 BOLT (8X28)BOLT (8X28)
-
2209111-08013 BOLT (8X26.5)BOLT (8X26.5)
-
2308322-0108B WASHERWASHER
-
2409162-08008 LOCK WASHER (8.2X15.2X1.6)LOCK WASHER (8.2X15.2X1.6)
-
2509140-08008 NUTNUT
-
2604111-2020A COTTER PINCOTTER PIN
