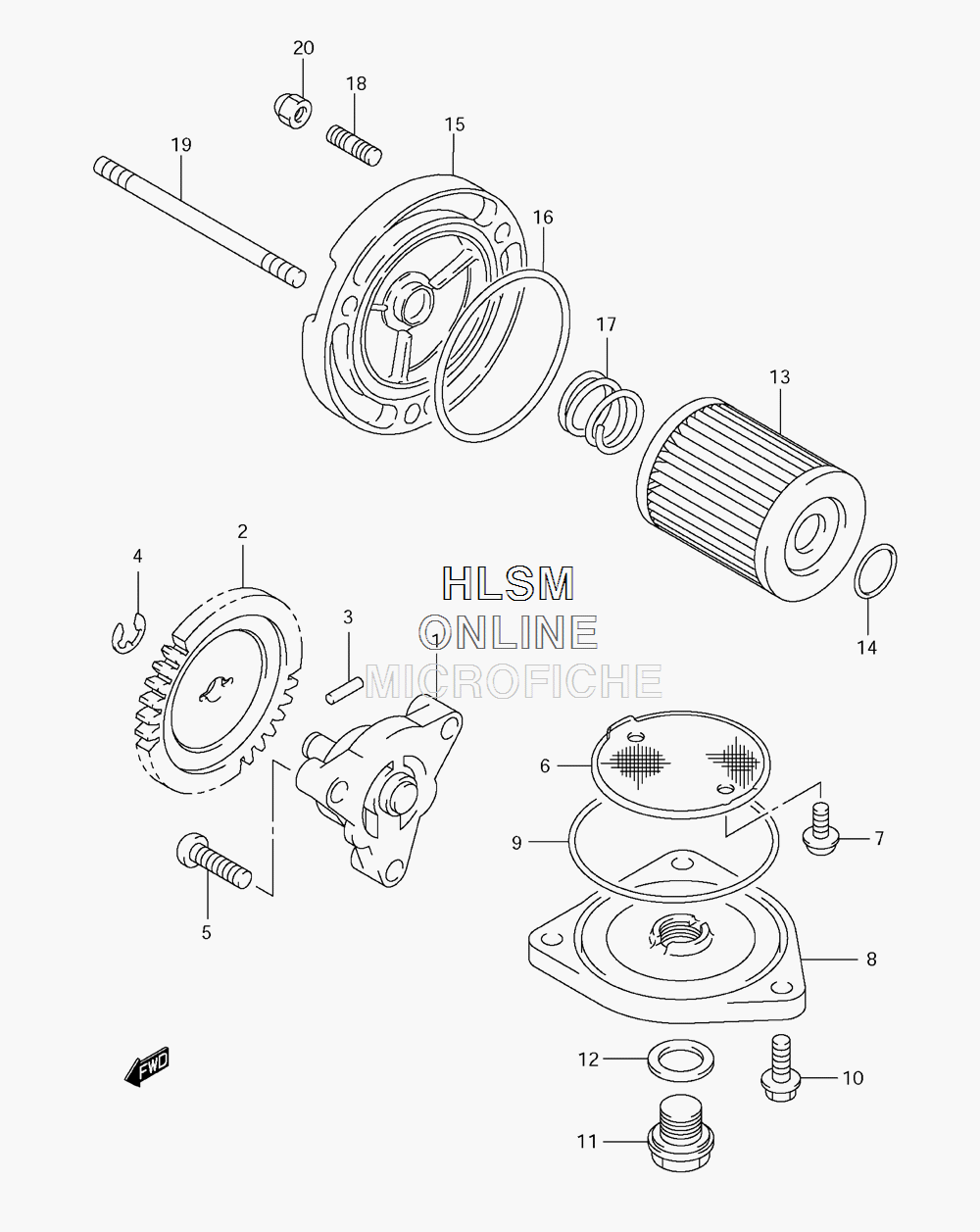

OIL PUMP для Suzuki DR-200SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
116400-42A01 PUMP ASSY, ENGINE OILPUMP ASSY, ENGINE OIL
-
216331-35C00 GEAR, OIL PUMP DRIVEN (NT:30)GEAR, OIL PUMP DRIVEN (NT:30)
-
309261-02008 PIN (2.5X11.8)PIN (2.5X11.8)
-
408332-1106A CIRCLIPCIRCLIP
-
502112-0625A SCREWSCREW
-
616520-05202 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
702112-7512A SCREWSCREW
-
816523-05200 CAP, OIL STRAINERCAP, OIL STRAINER
-
909280-60005 O RING (D:2.4,ID:60.5)O RING (D:2.4,ID:60.5)
-
1001547-0620A BOLTBOLT
-
1109247-14026 PLUG (14X12)PLUG (14X12)
-
1209168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1316510-25C00 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1409280-13004 O RING (D:1.9,ID:13)O RING (D:1.9,ID:13)
-
1516512-42A20 CAP, OIL FILTERCAP, OIL FILTER
-
1609280-54001 O RING (D:2.4,ID:52.6)O RING (D:2.4,ID:52.6)
-
1709440-18002 SPRINGSPRING
-
1809108-06123 STUD BOLTSTUD BOLT
-
1909108-06108 STUD BOLTSTUD BOLT
-
2008313-1006A NUTNUT
