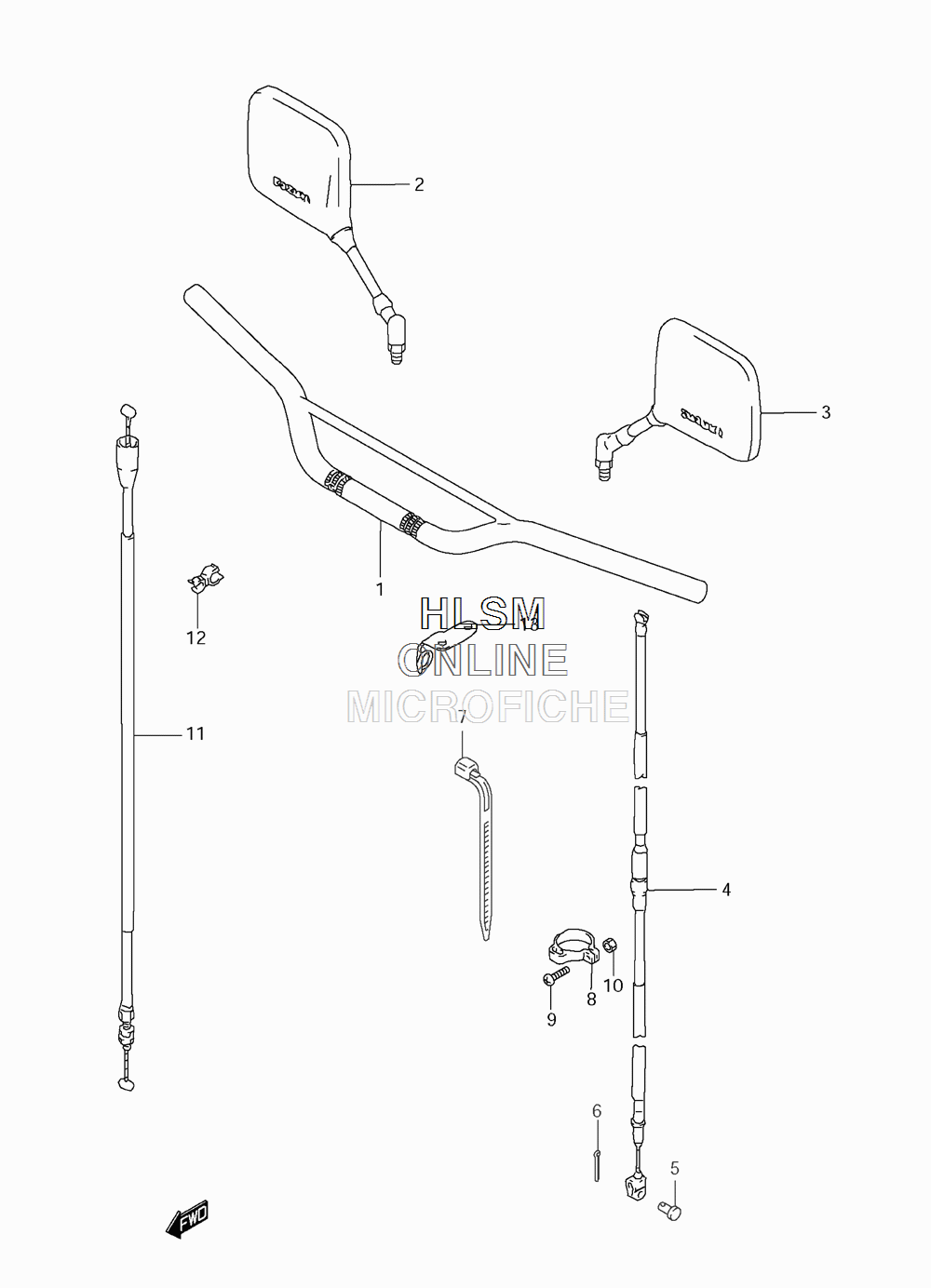

HANDLEBAR для Suzuki DR-200SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
156110-44AA0-291 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
256500-10042 MIRROR ASSY, REAR VIEW RIGHTMIRROR ASSY, REAR VIEW RIGHT
-
356600-10042 MIRROR ASSY, REAR VIEW LEFTMIRROR ASSY, REAR VIEW LEFT
-
458200-44AB1 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
509200-06004 PINPIN
-
604111-2015A COTTER PINCOTTER PIN
-
709407-25401 CLAMP (L:235)CLAMP (L:235)
-
858285-05351 CLAMP, CLUTCH CABLECLAMP, CLUTCH CABLE
-
902112-0516A SCREWSCREW
-
1008310-0005B NUTNUT
-
1158300-44AA0 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
1209408-00078 CLAMPCLAMP
-
1358620-15D10 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
