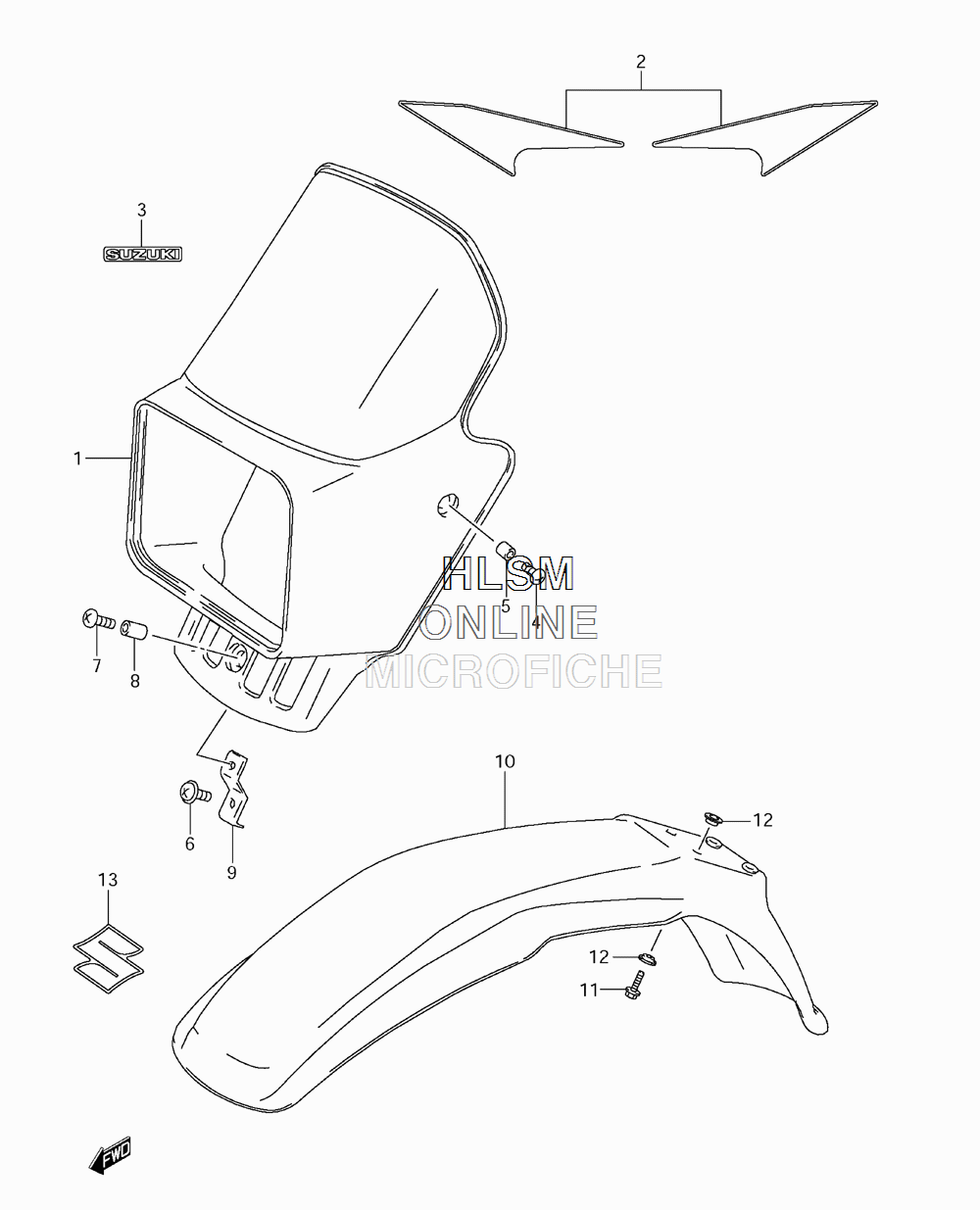

HEADLAMP HOUSING для Suzuki DR-200SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
151811-14A30-019 COVER, HEADLAMP (019 - BLACK)COVER, HEADLAMP (019 - BLACK)
-
151811-14A30-30H COVER, HEADLAMP (30H - WHITE)COVER, HEADLAMP (30H - WHITE)
-
268720-42A10-HLV TAPE SET, COVER (FOR 019)TAPE SET, COVER (FOR 019)
-
268720-42A10-HLW TAPE SET, COVER (FOR 30H)TAPE SET, COVER (FOR 30H)
-
368721-05D00-YD8 EMBLEM, "SUZUKI" (SILVER)EMBLEM, "SUZUKI" (SILVER)
-
402142-0612B SCREWSCREW
-
509180-06245 SPACER (6.1X8X3.5)SPACER (6.1X8X3.5)
-
602112-36127 SCREWSCREW
-
702142-0620B SCREWSCREW
-
809180-06249 SPACER (6.1X8X12)SPACER (6.1X8X12)
-
951814-44A00 BRACE, COVER LOWERBRACE, COVER LOWER
-
1053111-44A20-019 FENDER, FRONT (019 - BLACK)FENDER, FRONT (019 - BLACK)
-
1053111-44A20-30H FENDER, FRONT (30H - WHITE)FENDER, FRONT (30H - WHITE)
-
1101550-0616A BOLTBOLT
-
1209169-06053 WASHERWASHER
-
1368151-07G10-YD8 EMBLEM, "S" (SILVER)EMBLEM, "S" (SILVER)
