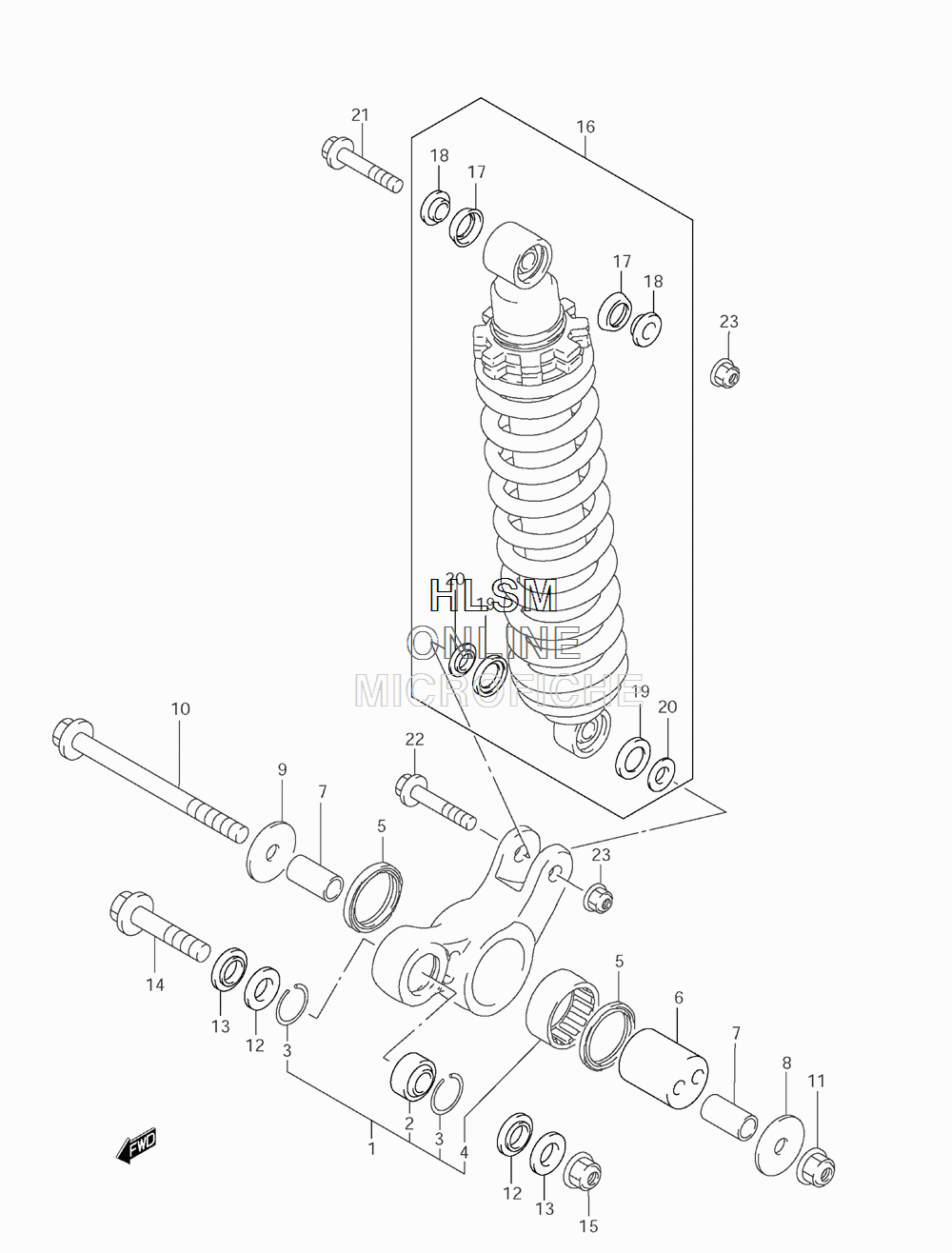

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki DR-200SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
162600-42812 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209269-12006 ...BEARING (12X26X16)...BEARING (12X26X16)
-
362277-27C20 ...RING, BEARING STOPPER...RING, BEARING STOPPER
-
409263-37003 ...BEARING (37X47X20)...BEARING (37X47X20)
-
562624-42A00 SEAL, DUSTSEAL, DUST
-
662623-42A11 SPACER, REAR SUSPENSION ECCENTRICSPACER, REAR SUSPENSION ECCENTRIC
-
762646-42A11 SPACER, CUSHION LEVER SHAFTSPACER, CUSHION LEVER SHAFT
-
862628-42AA0 WASHER, LEVER CENTER (LEFT)WASHER, LEVER CENTER (LEFT)
-
962625-42AA0 WASHER, LEVER CENTER (RIGHT)WASHER, LEVER CENTER (RIGHT)
-
1062621-42AA0 SHAFT, CUSHION LEVER CENTERSHAFT, CUSHION LEVER CENTER
-
1108319-2112A NUTNUT
-
1262647-05A00 SEAL, CUSHION LEVER FRNT DUSTSEAL, CUSHION LEVER FRNT DUST
-
1362316-05A01 SPACER, CUSHION LEVER FRONTSPACER, CUSHION LEVER FRONT
-
1462668-42A02 BOLT, CUSHION LEVER FRONTBOLT, CUSHION LEVER FRONT
-
1508319-3112A NUTNUT
-
1662100-44AB2-28W ABSORBER ASSY, REAR SHOCK (28W - WHITE)ABSORBER ASSY, REAR SHOCK (28W - WHITE)
-
1762226-20900 ...SEAL, DUST...SEAL, DUST
-
1862684-20900 ...SPACER...SPACER
-
1962226-02B00 ...SEAL, DUST LOWER...SEAL, DUST LOWER
-
2062684-31300 ...COLLAR, LOWER...COLLAR, LOWER
-
2109103-10428 BOLT (10X58)BOLT (10X58)
-
2209103-10126 BOLT (10X48)BOLT (10X48)
-
2309159-10115 NUTNUT
