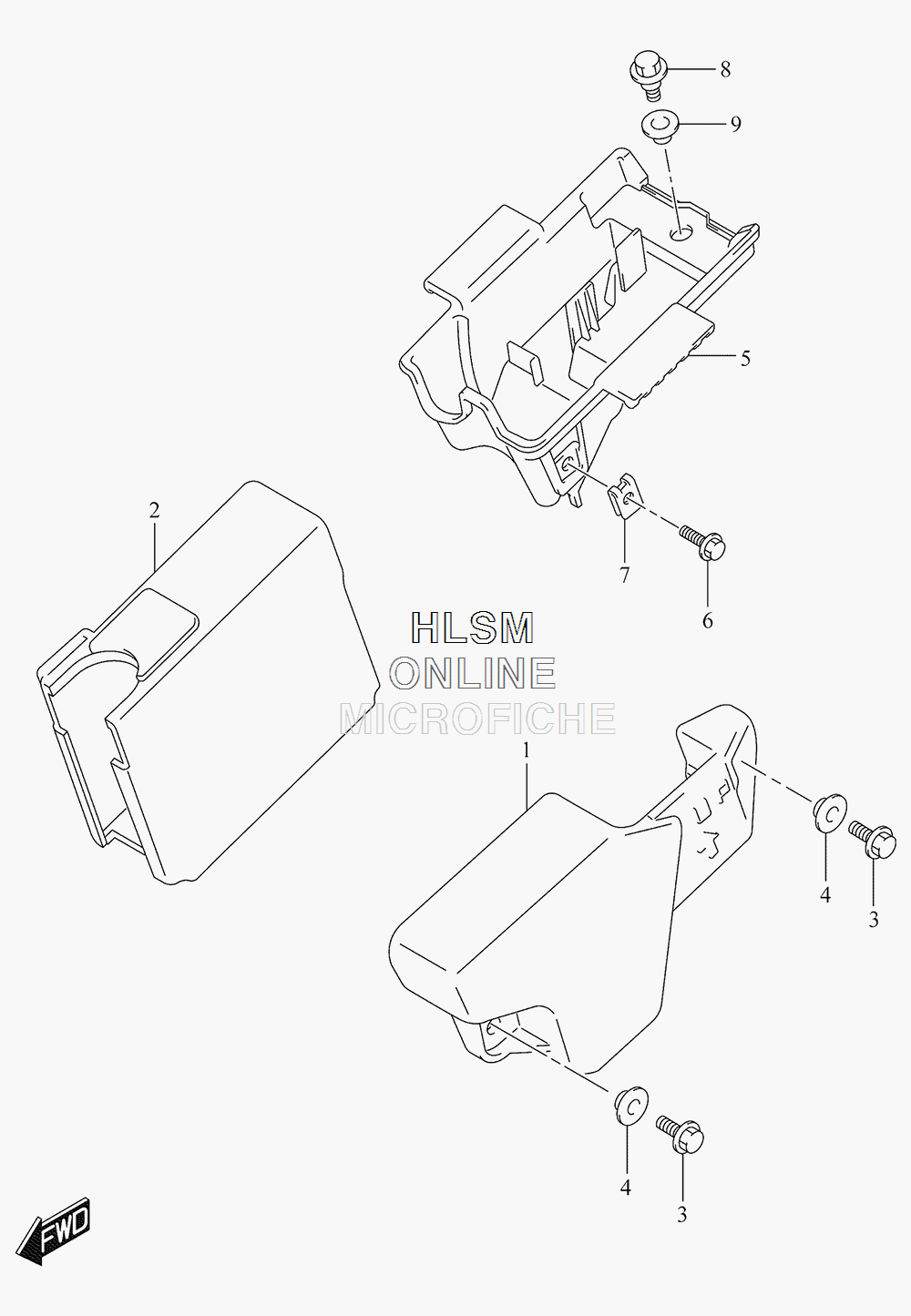

BATTERY HOLDER для Suzuki DR-Z70 [DRZ70L5] - 2015 года выпуска
-
№АртикулНазвание
-
141541-14H00 HOLDER, BATTERYHOLDER, BATTERY
-
241566-14H00 RUBBERRUBBER
-
301547-0612A BOLTBOLT
-
409169-06040 WASHERWASHER
-
547411-14H00 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
602162-0516A SCREWSCREW
-
709148-05052 NUTNUT
-
801547-0612A BOLTBOLT
-
909169-06071 WASHERWASHER
