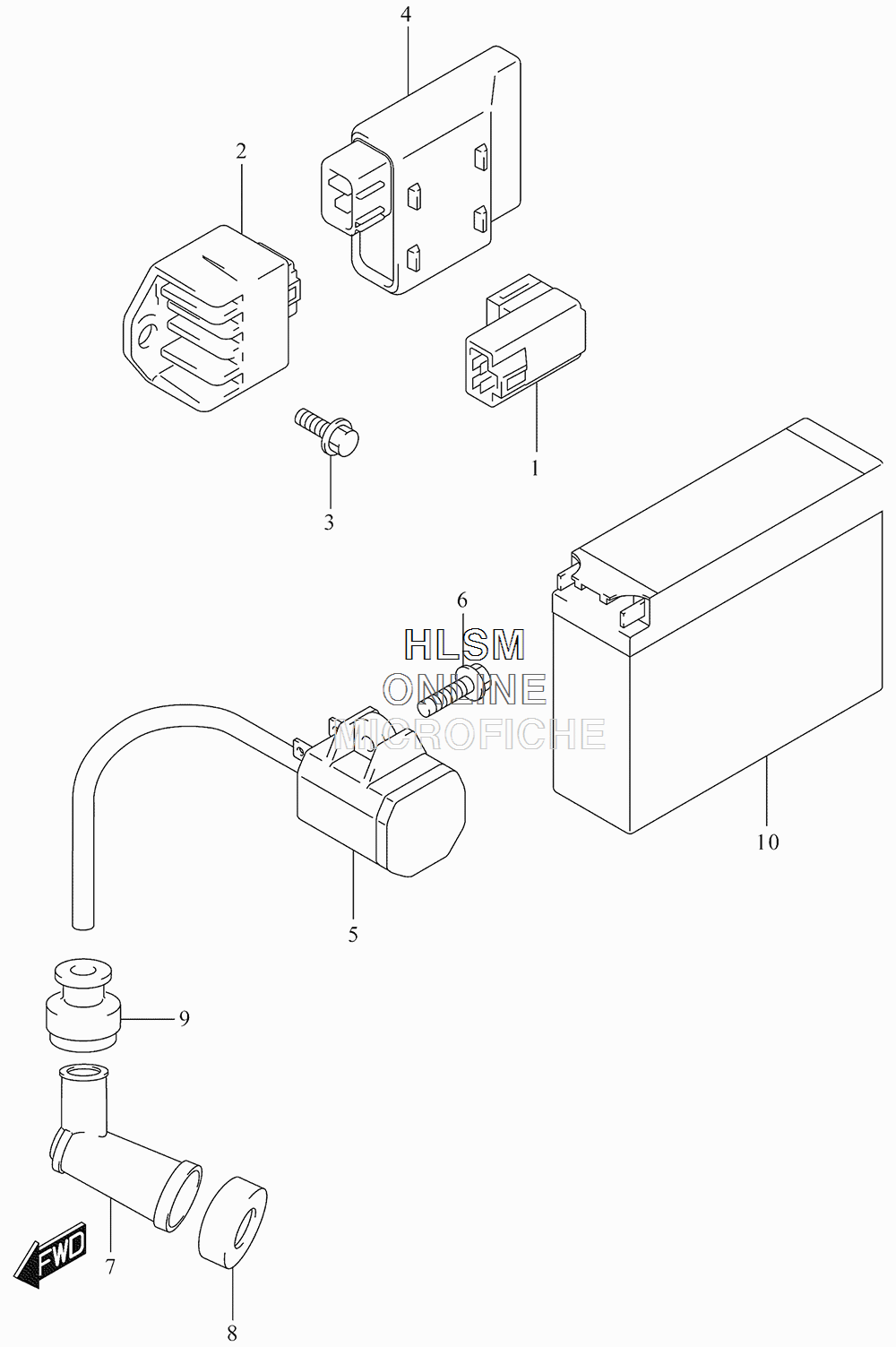

ELECTRICAL для Suzuki DR-Z70 [DRZ70L5] - 2015 года выпуска
-
№АртикулНазвание
-
131800-14H00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
232800-41H00 RECTIFIER ASSYRECTIFIER ASSY
-
302162-0616A SCREW, RECTIFIERSCREW, RECTIFIER
-
432900-14H00 CDI UNITCDI UNIT
-
533410-14H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
602162-0620B SCREWSCREW
-
733510-22010 CAP, SPARK PLUGCAP, SPARK PLUG
-
833541-38210 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
933542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1033610-39C20 BATTERY ASSY (YT4B-BS 12V 2.4AH)BATTERY ASSY (YT4B-BS 12V 2.4AH)
