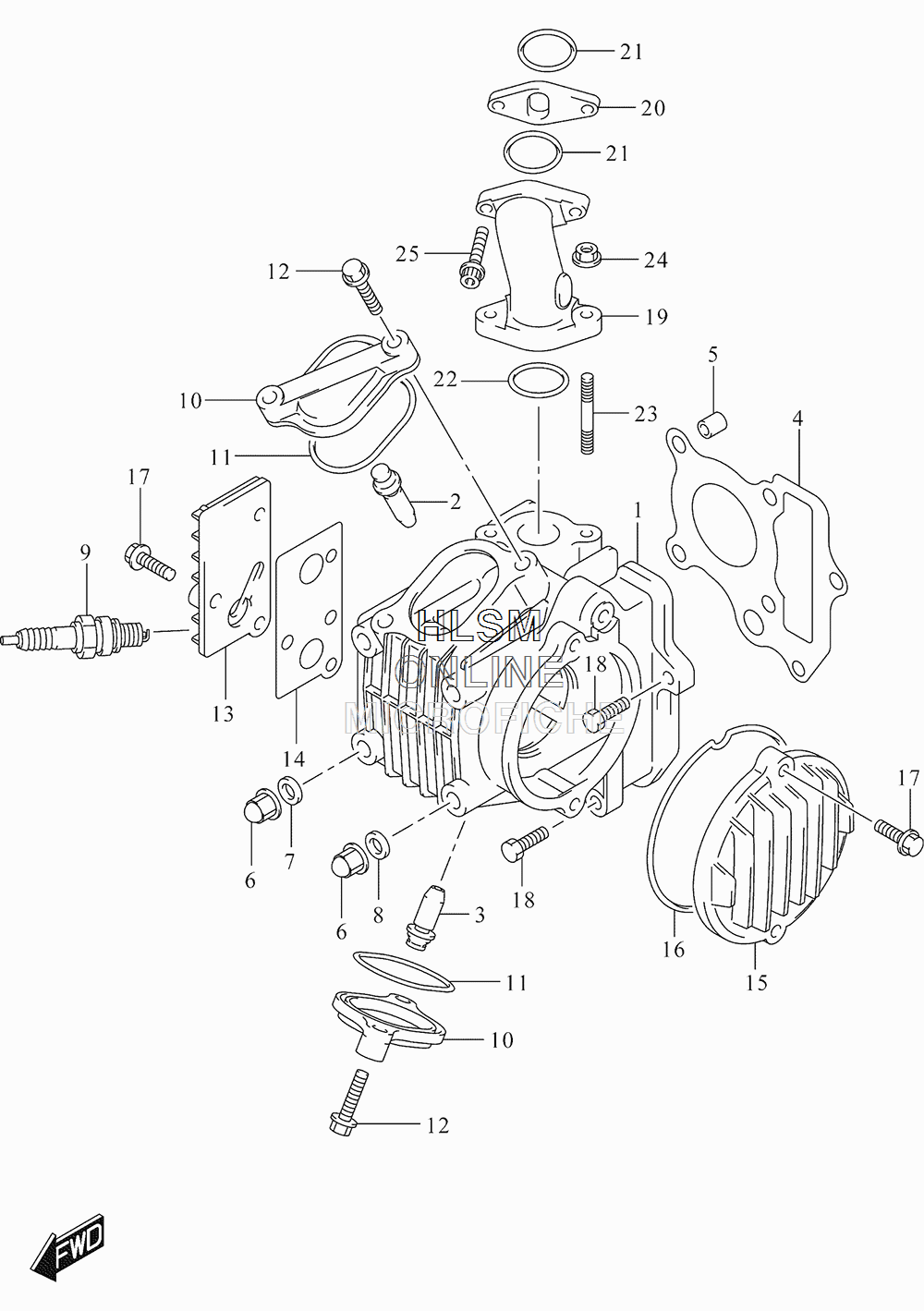

CYLINDER HEAD для Suzuki DR-Z70 [DRZ70L5] - 2015 года выпуска
-
№АртикулНазвание
-
111110-02A00 HEAD, CYLINDERHEAD, CYLINDER
-
211115-02A70 GUIDE, INTAKE VALVE (OS:0.3) (OPT)GUIDE, INTAKE VALVE (OS:0.3) (OPT)
-
311115-09470 GUIDE, EXHAUST VALVE (OS:0.3) (OPT)GUIDE, EXHAUST VALVE (OS:0.3) (OPT)
-
411141-02A00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
509206-08001 PIN (8X11)PIN (8X11)
-
609159-06100 NUTNUT
-
709168-06017 GASKET (6.5X13X2.3)GASKET (6.5X13X2.3)
-
809160-06127 WASHER (6.5X14X2.3)WASHER (6.5X14X2.3)
-
909482-00408 SPARK PLUG (CR7HSA) (NGK)SPARK PLUG (CR7HSA) (NGK)
-
909482-00314 SPARK PLUG (U22FSR-U) (DENSO)SPARK PLUG (U22FSR-U) (DENSO)
-
1011175-09400 CAP, INSPECTIONCAP, INSPECTION
-
1109280-50007 O RING (D:2.4,ID:33.6X48.6)O RING (D:2.4,ID:33.6X48.6)
-
1201547-0625A BOLTBOLT
-
1311134-09400 COVER, CYLINDER HEAD, RIGHT HANDCOVER, CYLINDER HEAD, RIGHT HAND
-
1411135-09420 GASKET, HEAD COVER, RIGHT HANDGASKET, HEAD COVER, RIGHT HAND
-
1511121-09405 COVER, CYLINDER HEAD, LEFT HANDCOVER, CYLINDER HEAD, LEFT HAND
-
1609280-70008 O RING (D:2.4,ID:73.5)O RING (D:2.4,ID:73.5)
-
1701547-0620A BOLTBOLT
-
1801500-0620A BOLTBOLT
-
1913111-14H00 PIPE, INTAKEPIPE, INTAKE
-
2013129-36G00 INSULATOR, CARBURETORINSULATOR, CARBURETOR
-
2109280-21010 O RING (D:1.9,ID:21.8)O RING (D:1.9,ID:21.8)
-
2209280-24010 O RING (D:2.4,ID:23.7)O RING (D:2.4,ID:23.7)
-
2301421-0620A STUD BOLTSTUD BOLT
-
2408316-1006A NUTNUT
-
2507130-0625A BOLTBOLT
