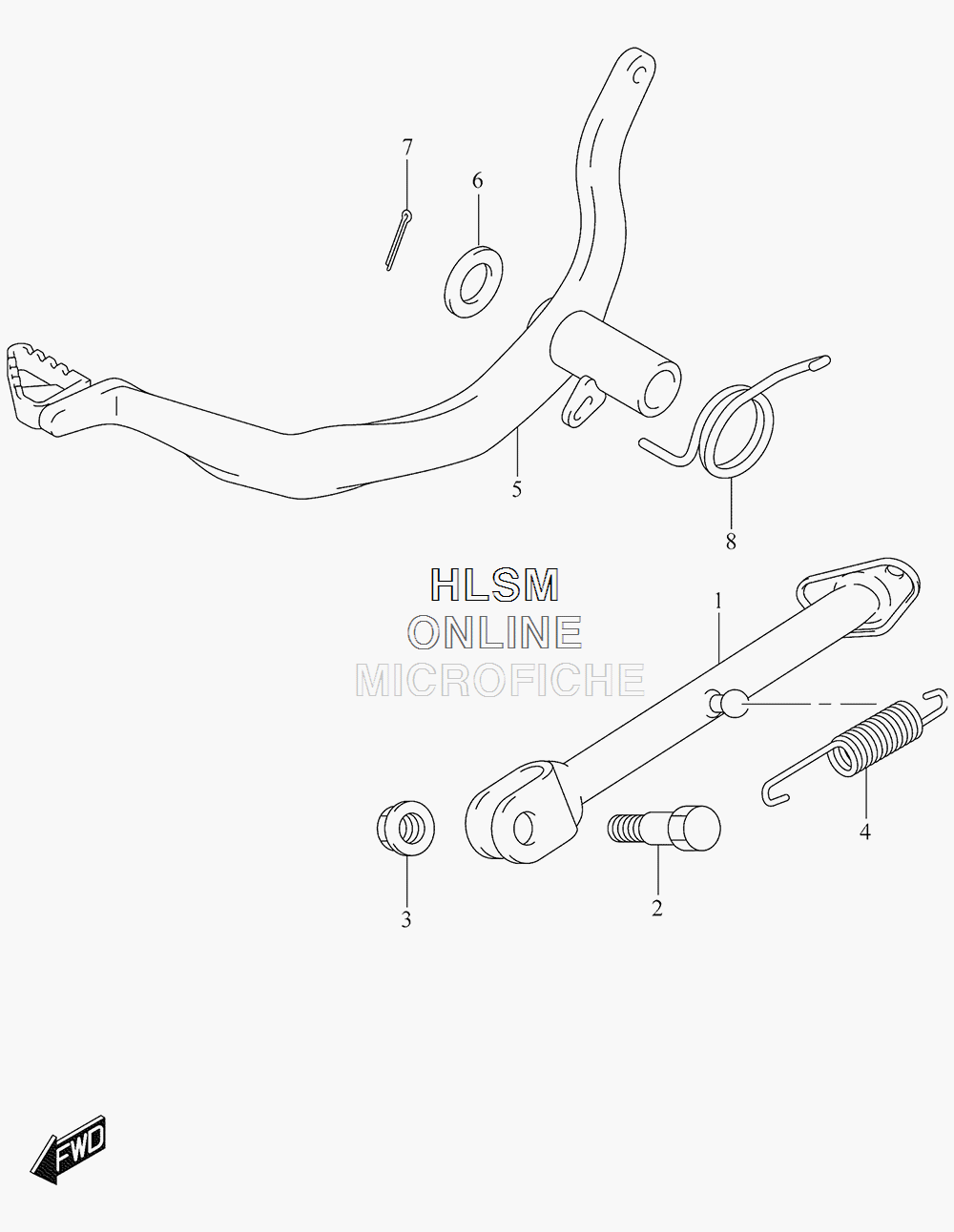

BRAKE PEDAL W/ STAND для Suzuki DR-Z70 [DRZ70L5] - 2015 года выпуска
-
№АртикулНазвание
-
142310-14H00 STAND, PROPSTAND, PROP
-
209111-10060 BOLT (10X33)BOLT (10X33)
-
308319-3110A NUTNUT
-
409443-14069 SPRINGSPRING
-
543110-14H00 PEDAL, BRAKEPEDAL, BRAKE
-
609160-15002 WASHER (15.5X26X2.3)WASHER (15.5X26X2.3)
-
704111-3030A COTTER PINCOTTER PIN
-
809448-31017 SPRINGSPRING
