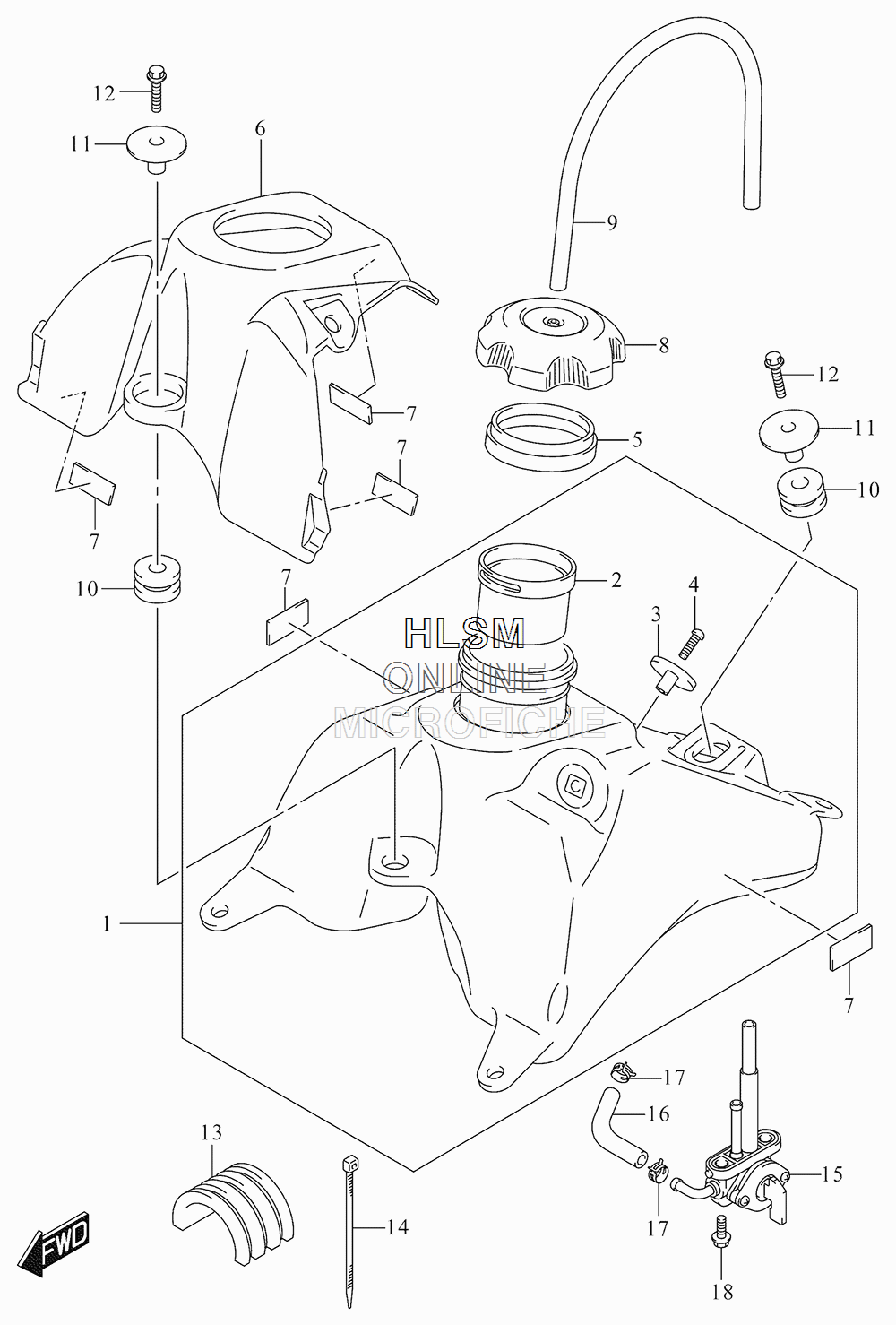

FUEL TANK для Suzuki DR-Z70 [DRZ70L5] - 2015 года выпуска
-
№АртикулНазвание
-
144100-14H00 TANK ASSY, FUELTANK ASSY, FUEL
-
244199-19A00 ...TUBE, FUEL INLET...TUBE, FUEL INLET
-
344132-27C01 ...HOOK, SEAT...HOOK, SEAT
-
409139-06148 ...BOLT (6X20)...BOLT (6X20)
-
544261-14H00 RUBBER, FUEL INLETRUBBER, FUEL INLET
-
644291-14H00 COVER, FUEL TANKCOVER, FUEL TANK
-
744294-14H00 CUSHIONCUSHION
-
844200-29F00 CAP ASSY, FUEL TANKCAP ASSY, FUEL TANK
-
909352-50823-360 HOSE (5X8.2X360) (L:600->360)HOSE (5X8.2X360) (L:600->360)
-
1044511-10G10 CUSHIONCUSHION
-
1144512-10G00 WASHERWASHER
-
1201547-0625A BOLTBOLT
-
1344541-13E10 CUSHION, CENTERCUSHION, CENTER
-
1409407-30402 CLAMP (L:300)CLAMP (L:300)
-
1544300-14H00 COCK ASSY, FUELCOCK ASSY, FUEL
-
1644421-14H00 HOSE, FUELHOSE, FUEL
-
1709401-09403 CLIPCLIP
-
1801547-0616A BOLTBOLT
