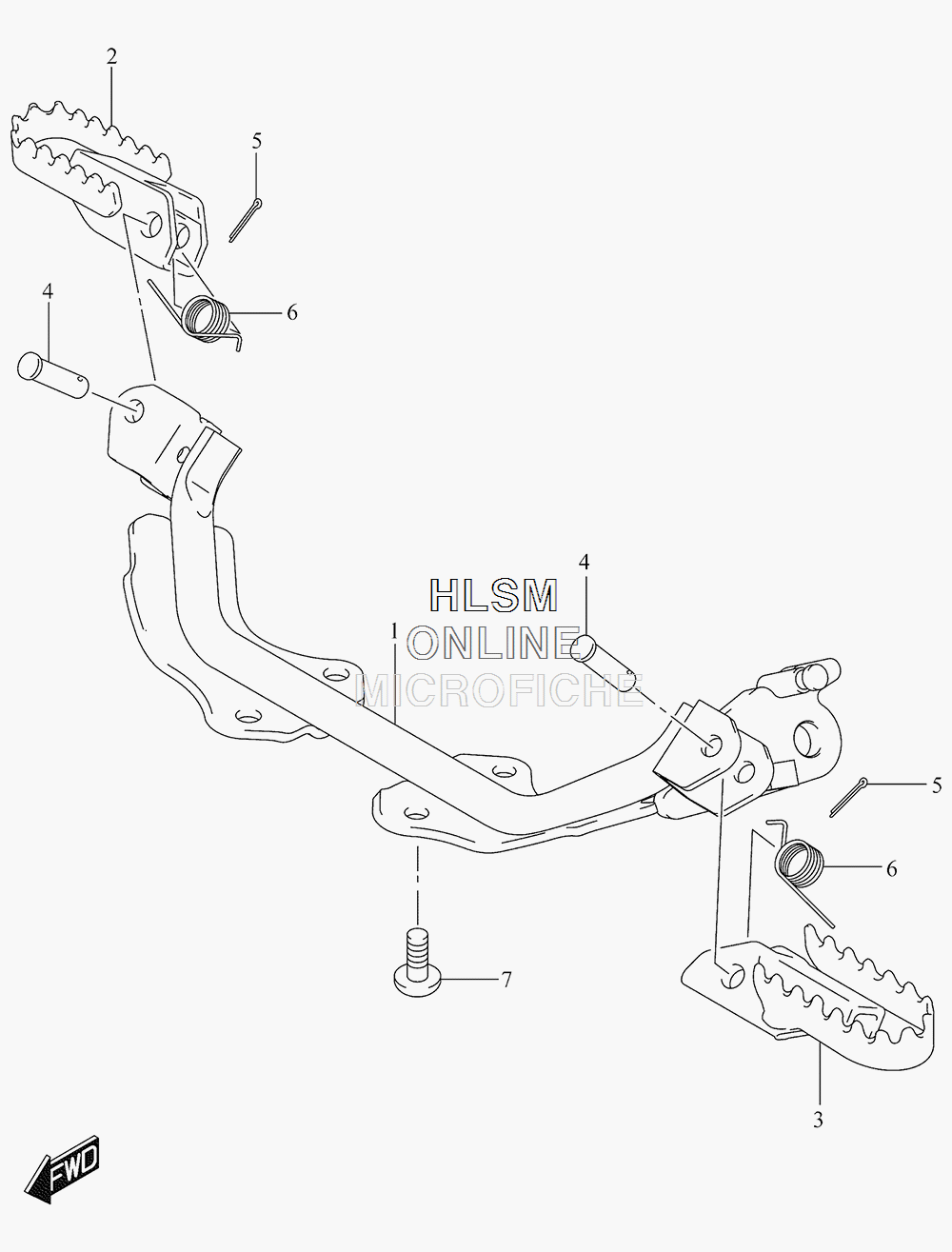

FOOTREST для Suzuki DR-Z70 [DRZ70L5] - 2015 года выпуска
-
№АртикулНазвание
-
143510-14H00 BAR, FRONT FOOTRESTBAR, FRONT FOOTREST
-
243550-46000-019 FOOTREST, RIGHT HAND (BLACK)FOOTREST, RIGHT HAND (BLACK)
-
343560-46000-019 FOOTREST, LEFT HAND (BLACK)FOOTREST, LEFT HAND (BLACK)
-
409200-08002 PINPIN
-
504111-2020A COTTER PINCOTTER PIN
-
609448-14012 SPRINGSPRING
-
709106-08140 BOLT (8X16)BOLT (8X16)
