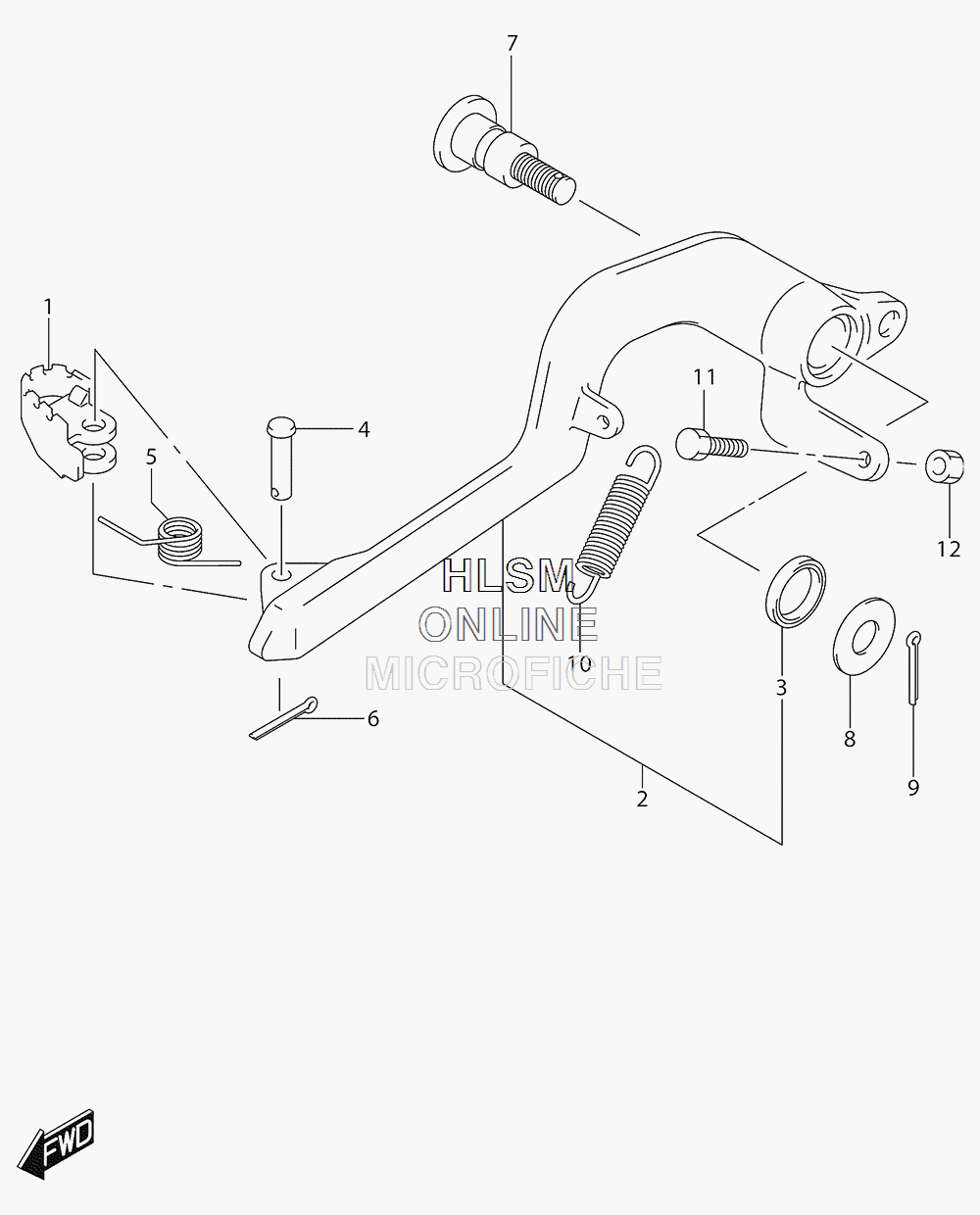

BRAKE PEDAL для Suzuki DR-Z400S - 2016 года выпуска
-
№АртикулНазвание
-
143110-43D00 PEDAL, BRAKEPEDAL, BRAKE
-
243120-29F10 ARM, BRAKE PEDALARM, BRAKE PEDAL
-
309284-15006 ...OIL SEAL (15X21X3)...OIL SEAL (15X21X3)
-
409200-06062 PIN (6X23.5)PIN (6X23.5)
-
509444-11006 SPRINGSPRING
-
604111-2015A COTTER PINCOTTER PIN
-
743142-27C00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
808211-10261 WASHERWASHER
-
904111-2020A COTTER PINCOTTER PIN
-
1009443-11033 SPRINGSPRING
-
1109104-06004 BOLT (6X30)BOLT (6X30)
-
1208310-0006B NUTNUT
