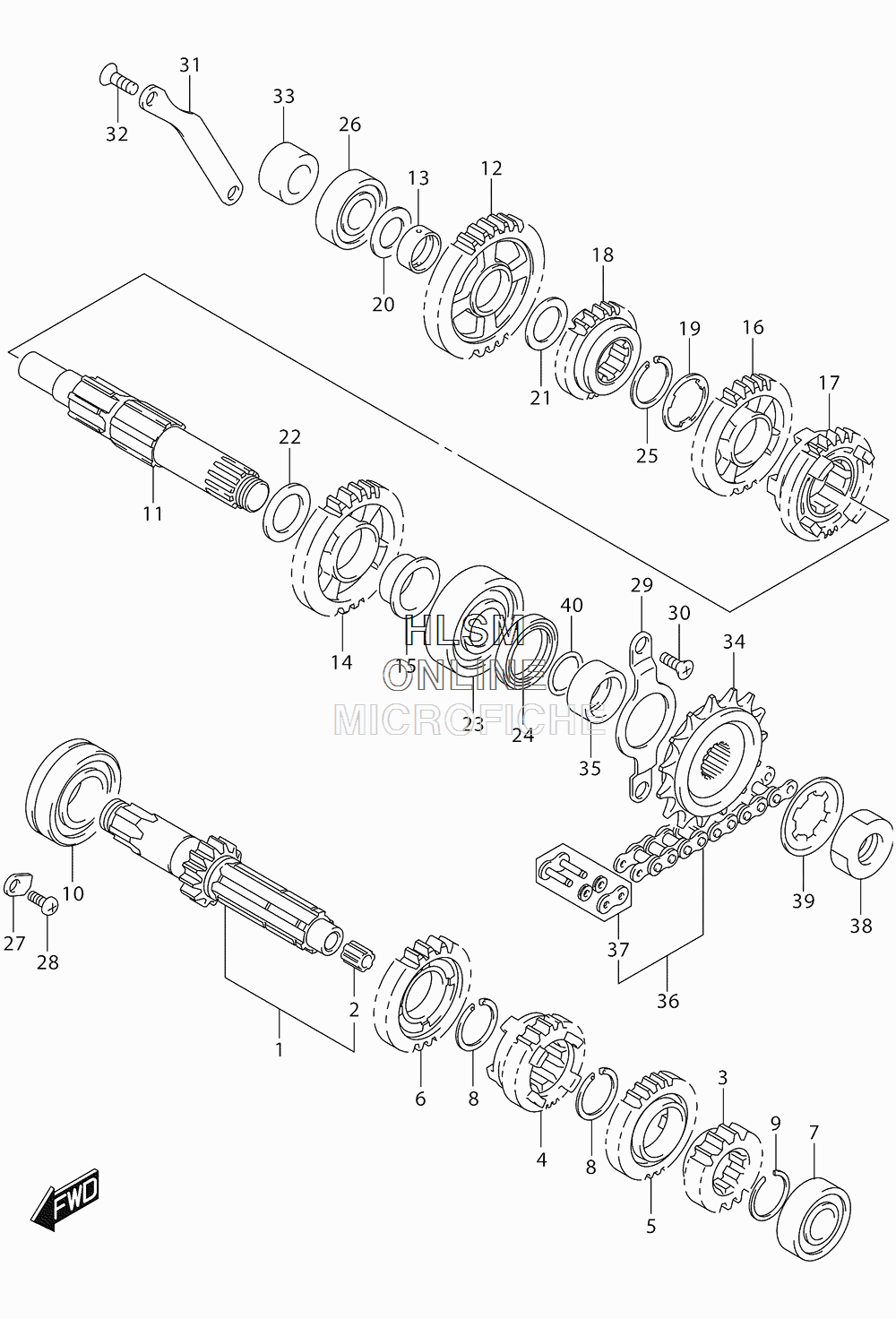

TRANSMISSION для Suzuki DR-Z400S - 2016 года выпуска
-
№АртикулНазвание
-
124120-05D20 SHAFT, COUNTER (NT:14)SHAFT, COUNTER (NT:14)
-
224125-38201 ...BUSH...BUSH
-
324221-28C20 GEAR, 2ND DRIVE (NT:15)GEAR, 2ND DRIVE (NT:15)
-
424231-05D02 GEAR, 3RD DRIVE (NT:16)GEAR, 3RD DRIVE (NT:16)
-
524241-05D01 GEAR, 4TH DRIVE (NT:22)GEAR, 4TH DRIVE (NT:22)
-
624251-05D00 GEAR, 5TH DRIVE (NT:22)GEAR, 5TH DRIVE (NT:22)
-
709262-17027 BEARING (17X40X12)BEARING (17X40X12)
-
809380-25010 CIRCLIPCIRCLIP
-
909380-25013 CIRCLIPCIRCLIP
-
1009262-25003 BEARING (25X52X15)BEARING (25X52X15)
-
1124130-05D21 SHAFT, DRIVESHAFT, DRIVE
-
1224311-05D00 GEAR, 1ST DRIVEN (NT:32)GEAR, 1ST DRIVEN (NT:32)
-
1324312-29F00 BUSH, 1ST DRIVEN GEARBUSH, 1ST DRIVEN GEAR
-
1424321-28C02 GEAR, 2ND DRIVEN (NT:26)GEAR, 2ND DRIVEN (NT:26)
-
1524322-44E10 BUSH, 2ND DRIVEN GEARBUSH, 2ND DRIVEN GEAR
-
1624331-05D01 GEAR, 3RD DRIVEN (NT:22)GEAR, 3RD DRIVEN (NT:22)
-
1724341-05D01 GEAR, 4TH DRIVEN (NT:24)GEAR, 4TH DRIVEN (NT:24)
-
1824351-05D20 GEAR, 5TH DRIVEN (NT:19)GEAR, 5TH DRIVEN (NT:19)
-
1909167-25012 LOCK WASHERLOCK WASHER
-
2009181-17223 SHIM (17X30X1)SHIM (17X30X1)
-
2109181-20195 SHIM (20X30X1)SHIM (20X30X1)
-
2209181-22223 SHIM (22X34X1)SHIM (22X34X1)
-
2309262-22024 BEARING (22X56X16)BEARING (22X56X16)
-
2409283-30053 OIL SEAL (30X40X6)OIL SEAL (30X40X6)
-
2509380-25010 CIRCLIPCIRCLIP
-
2609262-17023 BEARING (17X40X12)BEARING (17X40X12)
-
2724741-21A00 RETAINER, COUNTER SHAFTRETAINER, COUNTER SHAFT
-
2809125-06122 SCREW (6X12)SCREW (6X12)
-
2924751-29F00 RETAINER, DRIVE SHAFT OIL SEALRETAINER, DRIVE SHAFT OIL SEAL
-
3009126-06007 SCREW (6X14)SCREW (6X14)
-
3126264-29F00 RETAINER, KICK IDLE GEARRETAINER, KICK IDLE GEAR
-
3202122-0616A SCREWSCREW
-
3309180-17055 SPACER (17X30.5X16.3)SPACER (17X30.5X16.3)
-
3427510-29E10 SPROCKET, ENGINE (NT:15)SPROCKET, ENGINE (NT:15)
-
3527531-29F00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
3627600-29F30-112 CHAIN ASSY, DRIVE (RK520KZOZ1)CHAIN ASSY, DRIVE (RK520KZOZ1)
-
3727620-29F30 ...JOINT, CHAIN...JOINT, CHAIN
-
3809140-18006 NUTNUT
-
3909167-22012 LOCK WASHERLOCK WASHER
-
4009280-21008 O RING (D:2.5,ID:21)O RING (D:2.5,ID:21)
