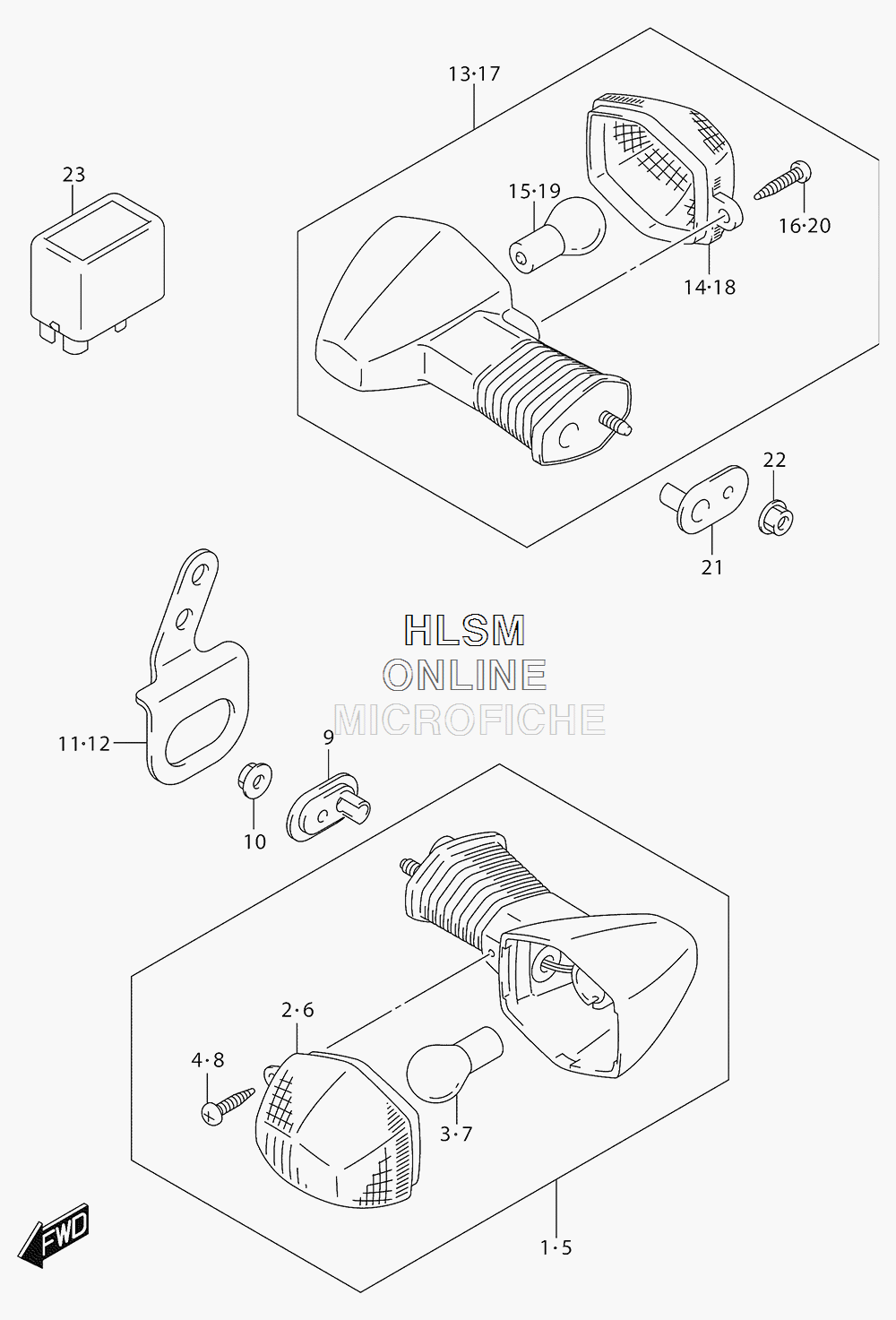

TURN SIGNAL ASSY. для Suzuki DR-Z400S - 2016 года выпуска
-
№АртикулНазвание
-
135601-29FA0 LAMP ASSY, FRONT TURNSIGNAL RHLAMP ASSY, FRONT TURNSIGNAL RH
-
235612-29FA0 ...LENS...LENS
-
309471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
403242-0416B ...SCREW...SCREW
-
535602-29FA0 LAMP ASSY, FRONT TURNSIGNAL LHLAMP ASSY, FRONT TURNSIGNAL LH
-
635632-29FA0 ...LENS...LENS
-
709471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
803242-0416B ...SCREW...SCREW
-
935629-31F40 PLATE, FRONT TURNSIGNALPLATE, FRONT TURNSIGNAL
-
1008316-1005A NUTNUT
-
1135671-29F00 BRACKET, FRONT TURNSIGNAL RHBRACKET, FRONT TURNSIGNAL RH
-
1235681-29F00 BRACKET, FRONT TURNSIGNAL LHBRACKET, FRONT TURNSIGNAL LH
-
1335603-29FA0 LAMP ASSY, REAR TURNSIGNAL RHLAMP ASSY, REAR TURNSIGNAL RH
-
1435632-29FA0 ...LENS...LENS
-
1509471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
1603242-0416B ...SCREW...SCREW
-
1735604-29FA0 LAMP ASSY, REAR TURNSIGNAL LHLAMP ASSY, REAR TURNSIGNAL LH
-
1835612-29FA0 ...LENS...LENS
-
1909471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
2003242-0416B ...SCREW...SCREW
-
2135629-31F40 PLATE, REAR TURNSIGNALPLATE, REAR TURNSIGNAL
-
2208316-1005A NUTNUT
-
2338610-03F00 RELAY ASSY, TURNSIGNALRELAY ASSY, TURNSIGNAL
