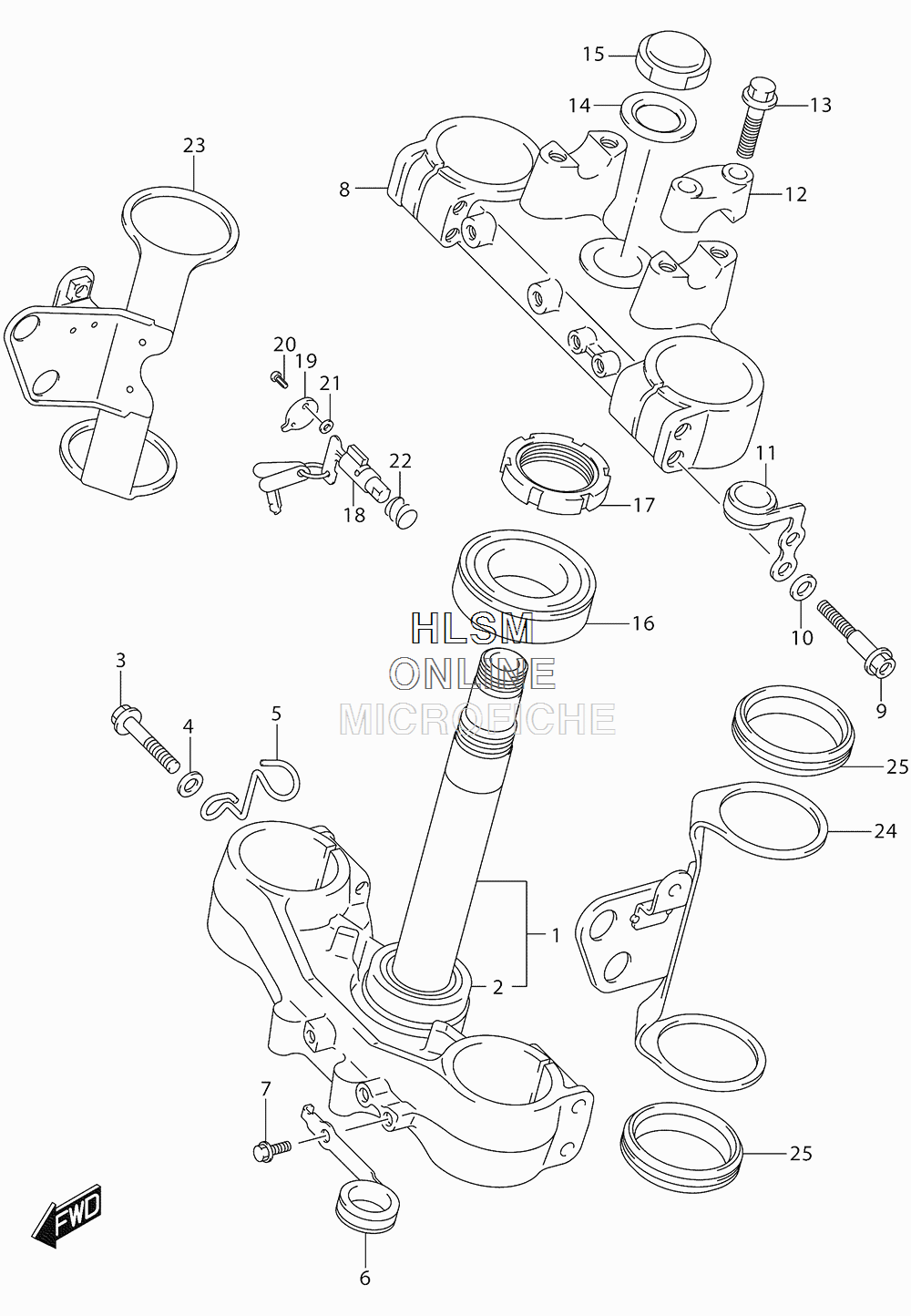

STEERING STEM для Suzuki DR-Z400S - 2016 года выпуска
-
№АртикулНазвание
-
151410-29F20 BRACKET, FRONT FORK UNDERBRACKET, FRONT FORK UNDER
-
209265-30014 ...BEARING (30X52X16)...BEARING (30X52X16)
-
351328-36E00 BOLT, UNDERBOLT, UNDER
-
451316-36E00 WASHERWASHER
-
534938-29E01 GUIDE, SPEEDMETER CABLEGUIDE, SPEEDMETER CABLE
-
651453-29F20 GUIDE, CABLEGUIDE, CABLE
-
758627-27C40 BOLT, PROTECTORBOLT, PROTECTOR
-
851311-29F00 BRACKET, FRONT FORK UPPERBRACKET, FRONT FORK UPPER
-
951328-29F20 BOLT, UPPERBOLT, UPPER
-
1051316-36E00 WASHERWASHER
-
1151288-29F20 GUIDE, CABLEGUIDE, CABLE
-
1256211-29F00 HOLDER, HANDLE BAR UPPERHOLDER, HANDLE BAR UPPER
-
1351321-27C40 BOLT, HANDLE HOLDERBOLT, HANDLE HOLDER
-
1451356-29E00 WASHER, STEM HEADWASHER, STEM HEAD
-
1551353-27G00 NUTNUT
-
1609265-30014 BEARING (30X52X16)BEARING (30X52X16)
-
1751631-28E00 NUT, STEERINGNUT, STEERING
-
1851900-29F00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1951912-29F00 CAP, STEERING LOCKCAP, STEERING LOCK
-
2051913-29F00 PIN, STEERING LOCKPIN, STEERING LOCK
-
2151914-29F00 WASHER, STEERING LOCKWASHER, STEERING LOCK
-
2251931-29F00 SPRING, STEERING LOCKSPRING, STEERING LOCK
-
2351530-29F00 BRACKET COMP, HEADLAMP HSG RHBRACKET COMP, HEADLAMP HSG RH
-
2451540-29F00 BRACKET COMP, HEADLAMP HSG LHBRACKET COMP, HEADLAMP HSG LH
-
2551553-29F00 DAMPER, HEADLAMP HSG BRACKETDAMPER, HEADLAMP HSG BRACKET
