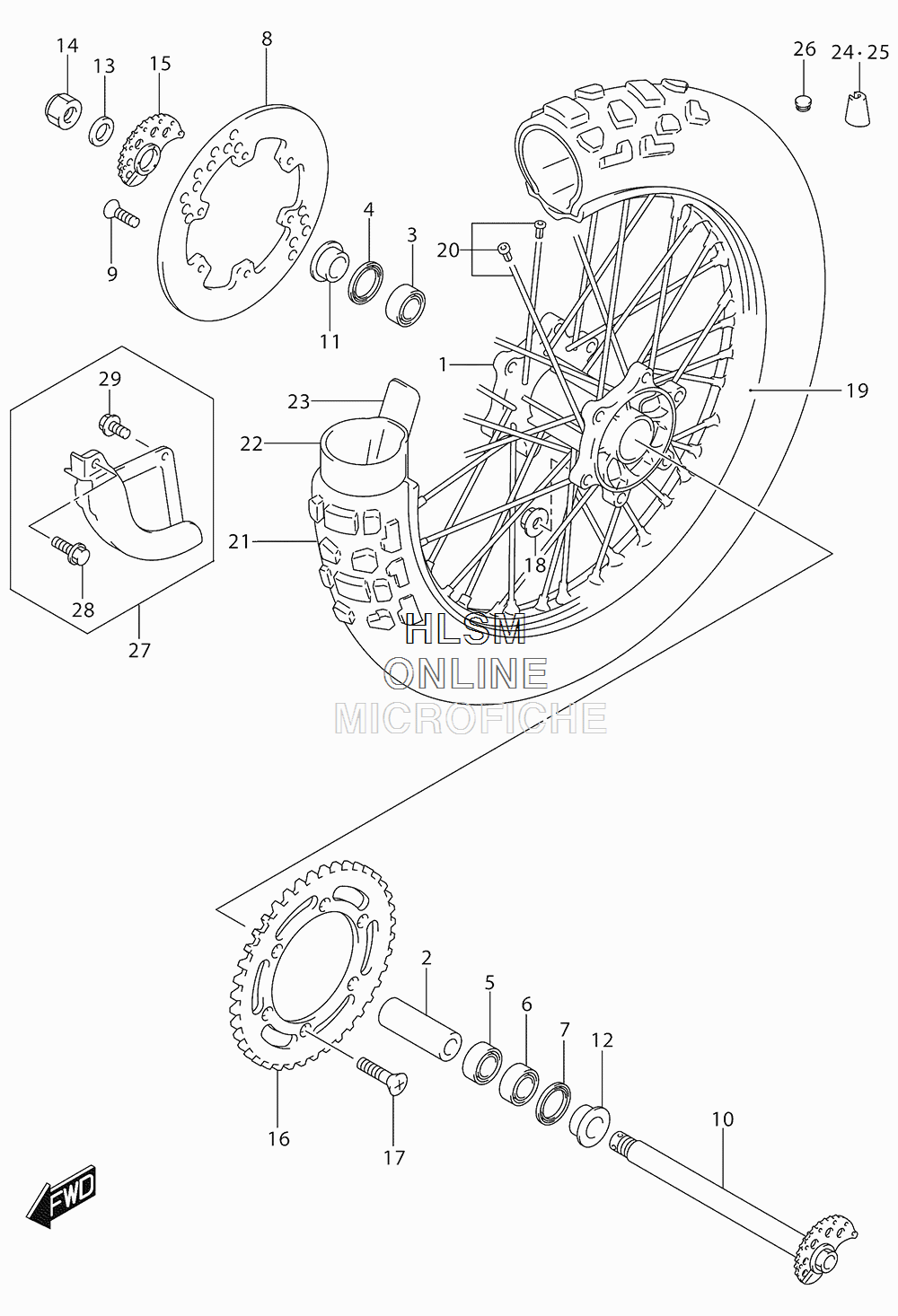

WHEEL - REAR для Suzuki DR-Z400S - 2016 года выпуска
-
№АртикулНазвание
-
164111-29F10 HUB, REAR WHEELHUB, REAR WHEEL
-
264731-29F00 SPACER, REAR HUB BEARINGSPACER, REAR HUB BEARING
-
308133-60047 BEARINGBEARING
-
464841-28E00 SEAL, RIGHT HAND (29X42X6)SEAL, RIGHT HAND (29X42X6)
-
508133-60047 BEARINGBEARING
-
608123-62047 BEARINGBEARING
-
709283-29006 OIL SEAL (29X47X6)OIL SEAL (29X47X6)
-
869211-43D00 DISC, REAR BRAKEDISC, REAR BRAKE
-
909120-06014 SCREW (6X18)SCREW (6X18)
-
1064710-29F00 AXLE, REARAXLE, REAR
-
1164751-28E20 SPACER, RHSPACER, RH
-
1264751-28E20 SPACER, LHSPACER, LH
-
1309160-19022 WASHER (19X32X3.2)WASHER (19X32X3.2)
-
1408319-2118A NUTNUT
-
1561410-29F00 ADJUSTER, CHAIN RHADJUSTER, CHAIN RH
-
1664511-14D80 SPROCKET, REAR (NT:44)SPROCKET, REAR (NT:44)
-
1709120-08010 BOLT (8X30.5)BOLT (8X30.5)
-
1808319-3108A NUTNUT
-
1965311-29F00 RIM, REAR WHEEL (2.15X18)RIM, REAR WHEEL (2.15X18)
-
2065320-29F00 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
2165110-29F10 TIRE, REAR (120/90-18 64P) (BRIDGESTONE) (TRAIL WING-42)TIRE, REAR (120/90-18 64P) (BRIDGESTONE) (TRAIL WING-42)
-
2265200-29E01 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2365261-14E01 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2455412-41F00 BALANCER, WHEEL NO.1BALANCER, WHEEL NO.1
-
2555413-41F00 BALANCER, WHEEL NO.2BALANCER, WHEEL NO.2
-
2609250-08013 CAP (OD:12)CAP (OD:12)
-
2769200-28C00 COVER, REAR DISCCOVER, REAR DISC
-
2801550-0620B BOLTBOLT
-
2901550-0612B BOLTBOLT
