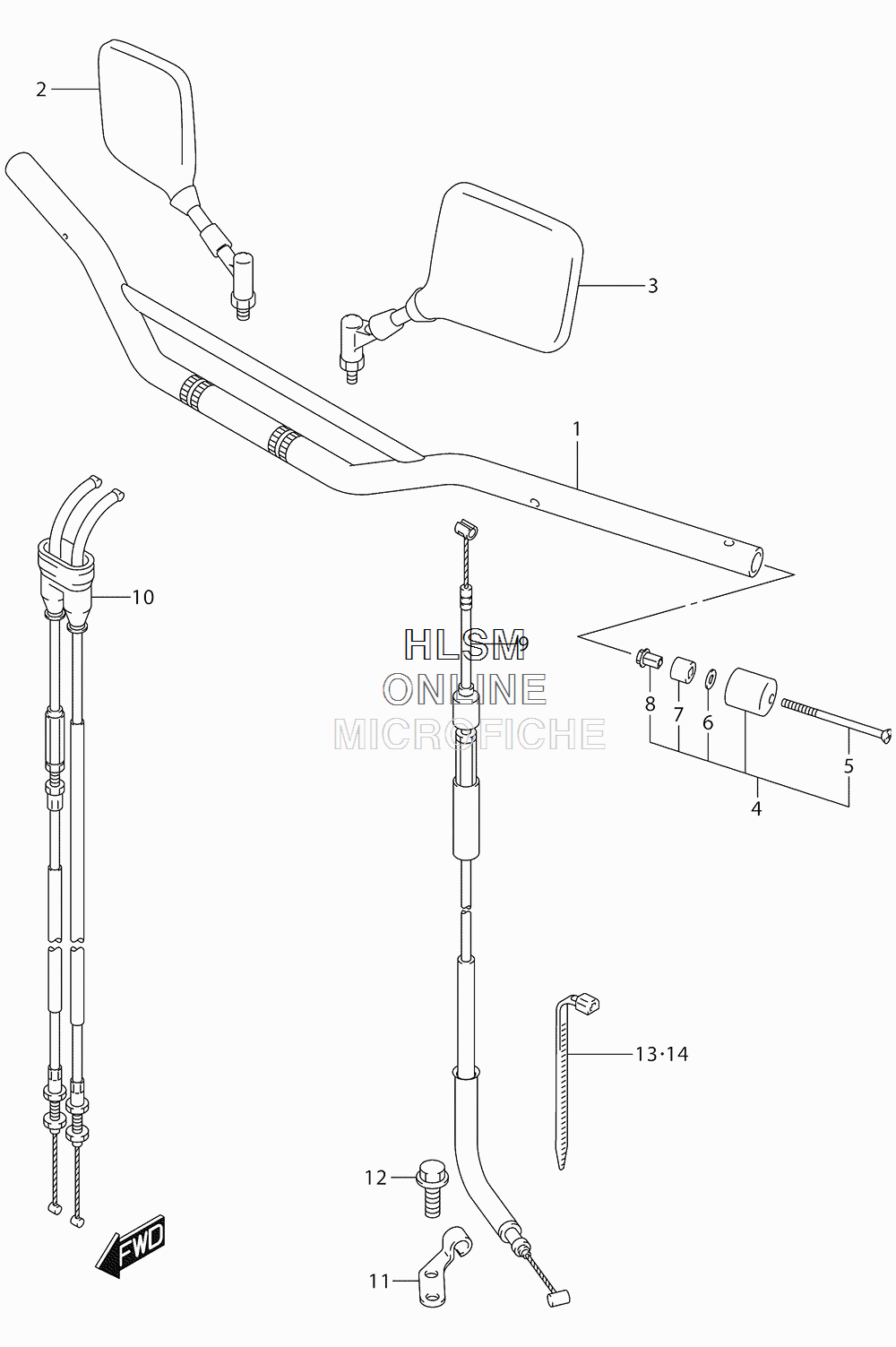

HANDLEBAR для Suzuki DR-Z400S - 2016 года выпуска
-
№АртикулНазвание
-
156110-29F10-13L HANDLEBAR (SILVER)HANDLEBAR (SILVER)
-
256500-06G30 MIRROR ASSY, REAR VIEW RHMIRROR ASSY, REAR VIEW RH
-
356600-06G30 MIRROR ASSY, REAR VIEW LHMIRROR ASSY, REAR VIEW LH
-
456200-29832 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
502122-0660B ...SCREW...SCREW
-
609160-06131 ...WASHER (6.5X16X4)...WASHER (6.5X16X4)
-
756272-10G20 ...EXPANDER...EXPANDER
-
856273-10G10 ...NUT...NUT
-
958200-29F10 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1058301-29F11 CABLE SET, THROTTLECABLE SET, THROTTLE
-
1158634-29F00 STOPPER, CLUTCH CABLESTOPPER, CLUTCH CABLE
-
1201547-0612A BOLTBOLT
-
1309407-10404 CLAMP (L:100)CLAMP (L:100)
-
1409407-25401 CLAMP (L:235)CLAMP (L:235)
