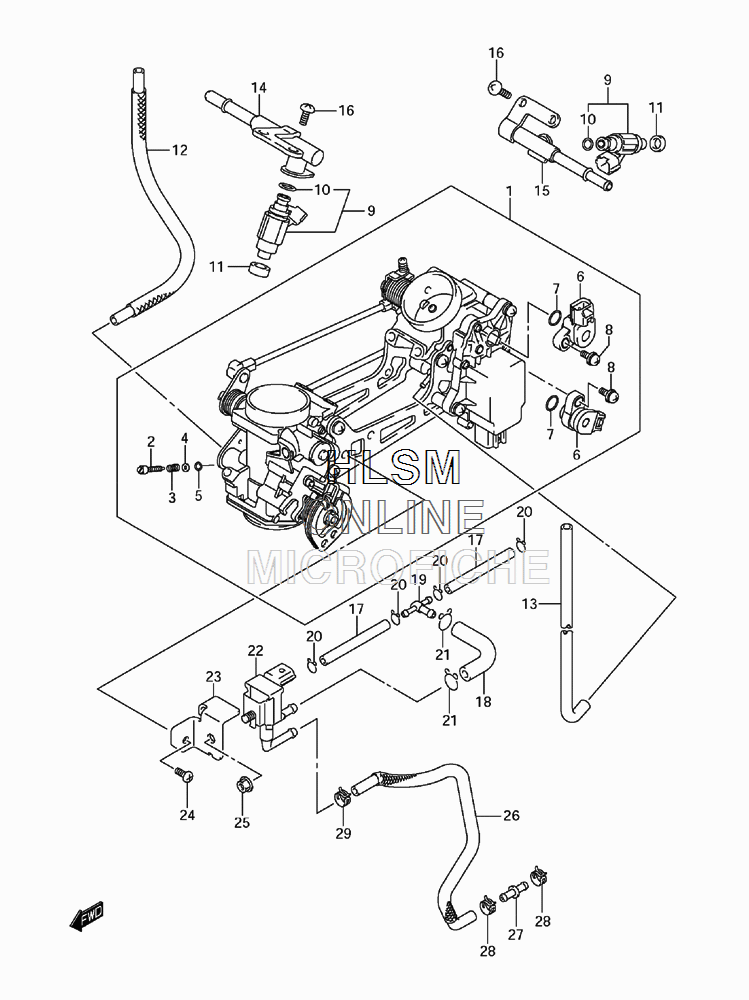

CARBURETOR - THROTTLE BODY для Suzuki SFV650 GLADIUS - 2009 года выпуска
-
№АртикулНазвание
-
113405-44H00 THROTTLE BODY (INC 2-8) (EXCEPT CALIF)THROTTLE BODY (INC 2-8) (EXCEPT CALIF)
-
113405-44H10 THROTTLE BODY (INC 2-8) (CALIF ONLY)THROTTLE BODY (INC 2-8) (CALIF ONLY)
-
213269-33E00 SCREWSCREW
-
313268-48700 SPRINGSPRING
-
413606-47A00 WASHERWASHER
-
513295-29900 O RINGO RING
-
613580-27G20 SENSOR ASSYSENSOR ASSY
-
713575-29G00 O RINGO RING
-
813605-02F00 SCREWSCREW
-
915710-44H00 INJECTOR ASSY (INC 10)INJECTOR ASSY (INC 10)
-
1015717-16G00 O RINGO RING
-
1115722-29G00 SEALSEAL
-
1213683-44H00 HOSEHOSE
-
1313683-44H10 HOSEHOSE
-
1415720-44H00 DELIVERY PIPEDELIVERY PIPE
-
1515730-44H00 DELIVERY PIPEDELIVERY PIPE
-
1613602-06128 BOLTBOLT
-
1713681-06G40 HOSEHOSE
-
1813683-44H30 HOSEHOSE
-
1913685-04F10 NIPPLENIPPLE
-
2013671-12C00 CLIPCLIP
-
2109401-10401 CLIPCLIP
-
2218117-52G10 SOLENOID ASSY (CALIF ONLY)SOLENOID ASSY (CALIF ONLY)
-
2318119-44H00 BRACKETBRACKET
-
2413602-06128 SCREWSCREW
-
2508316-1006A NUTNUT
-
2613680-44H00 HOSE, PURGE VALVE (CALIF ONLY)HOSE, PURGE VALVE (CALIF ONLY)
-
2709367-06009 JOINTJOINT
-
2809401-11413 CLIPCLIP
-
2909401-09403 CLIPCLIP
