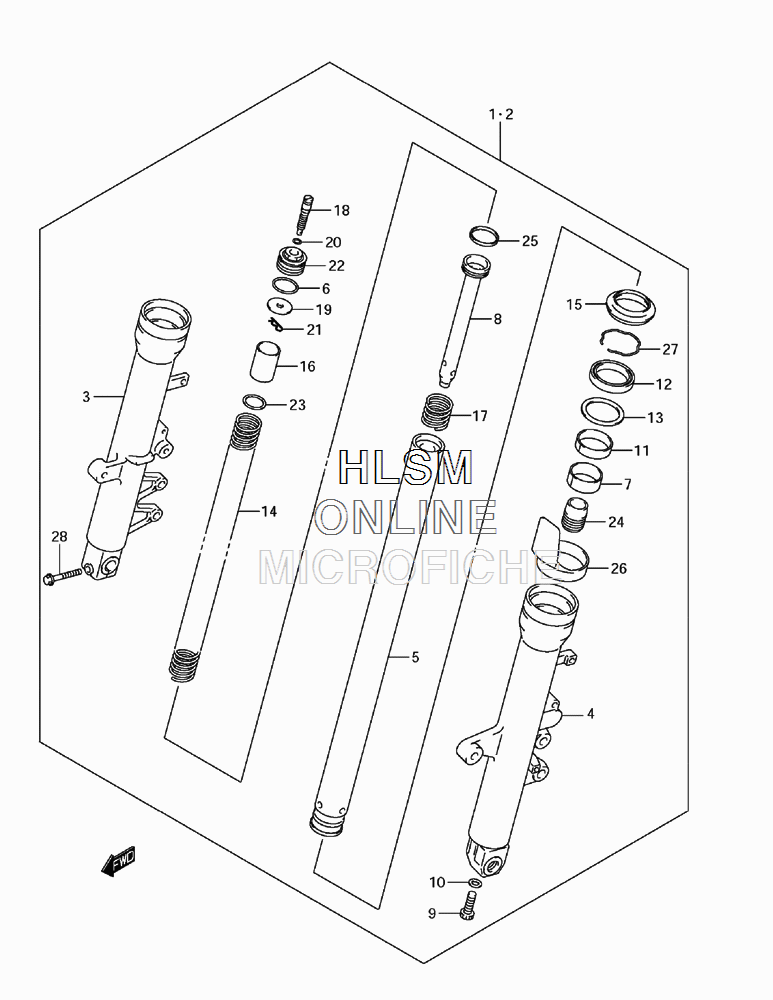

SUSPENSION - FRONT FORK для Suzuki SFV650 GLADIUS - 2009 года выпуска
-
№АртикулНазвание
-
151103-44H00 DAMPER ASSY, FRONT FORK RIGHT HAND (INC 3-28)DAMPER ASSY, FRONT FORK RIGHT HAND (INC 3-28)
-
251104-44H00 DAMPER ASSY, FRONT FORK LEFT HAND (INC 3-28)DAMPER ASSY, FRONT FORK LEFT HAND (INC 3-28)
-
351130-17GA0 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
451140-17GA0 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
551110-44H00 TUBE, INNERTUBE, INNER
-
651117-12C00 O RINGO RING
-
751121-44H00 BUSH, SLIDEBUSH, SLIDE
-
851146-17G20 CYLINDERCYLINDER
-
951147-48130 BOLT, 8X27BOLT, 8X27
-
1051148-36011 GASKETGASKET
-
1151152-01H10 BUSH, GUIDEBUSH, GUIDE
-
1251153-01H10 SEAL, OILSEAL, OIL
-
1351168-17G80 SPACER, SEALSPACER, SEAL
-
1451171-44H00 SPRING, FRONTSPRING, FRONT
-
1551173-01H00 SEAL, DUSTSEAL, DUST
-
1651176-12C10 COLLAR, SPRING, 32.9X34X50COLLAR, SPRING, 32.9X34X50
-
1751177-17G50 SPRING, REBOUNDSPRING, REBOUND
-
1851185-17G00 ADJUSTER BOLT, SPRINGADJUSTER BOLT, SPRING
-
1951186-12C00 SEAT, SPRINGSEAT, SPRING
-
2009280-09005 O RING, STOPPERO RING, STOPPER
-
2151188-32B00 PIN, SEAT SPRINGPIN, SEAT SPRING
-
2251189-12C00 BOLT, FORKBOLT, FORK
-
2351192-19C00 JOINT, SPRINGJOINT, SPRING
-
2451195-48B30 PIECE, OIL LOCKPIECE, OIL LOCK
-
2551196-12C00 RING, PISTONRING, PISTON
-
2651201-32F00 PROTECTORPROTECTOR
-
2751556-38B00 RING, STOPPERRING, STOPPER
-
2851166-01H10 BOLTBOLT
