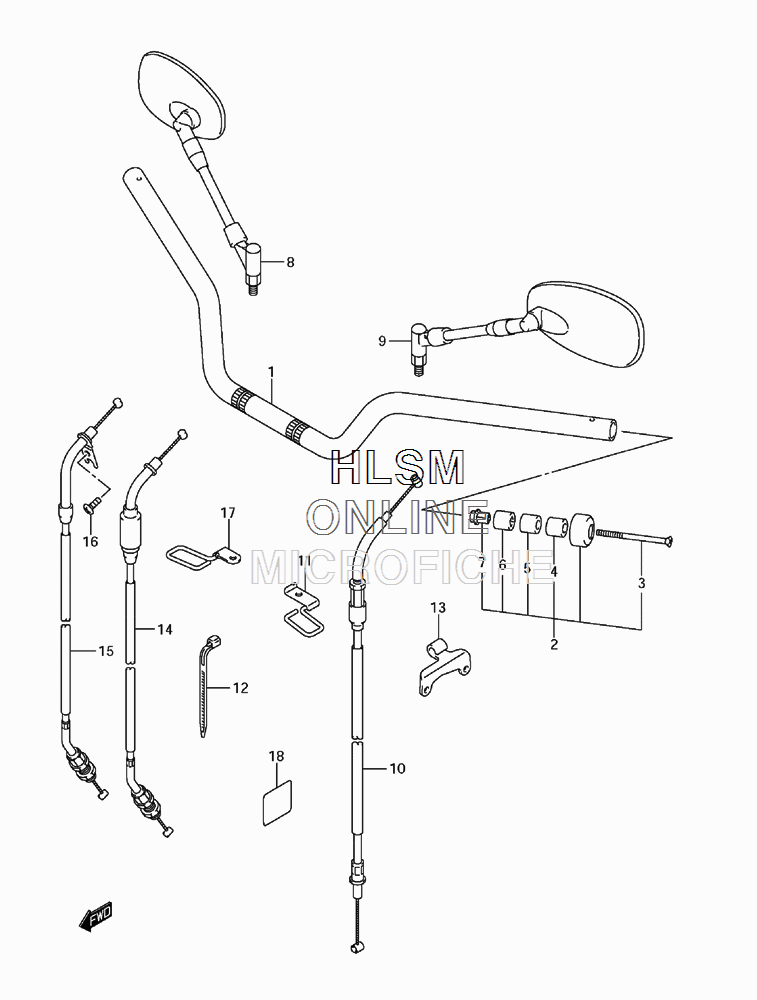

HANDLEBAR для Suzuki SFV650 GLADIUS - 2009 года выпуска
-
№АртикулНазвание
-
156111-44H00 HANDLEBARHANDLEBAR
-
256200-41830 BALANCER SET, HANDLEBAR (INC 3-7)BALANCER SET, HANDLEBAR (INC 3-7)
-
302122-0670B SCREWSCREW
-
456272-42F00 EXPANDER, OUTEREXPANDER, OUTER
-
509180-06161 SPACERSPACER
-
656272-10G00 EXPANDER, INNEREXPANDER, INNER
-
756273-10G10 NUTNUT
-
856500-41F50 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
956600-41F50 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
1058200-44H00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1158630-44H00 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
1209407-18402 CLAMPCLAMP
-
1358634-44H00 STOPPER, CLUTCH CABLESTOPPER, CLUTCH CABLE
-
1458300-44H00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1558300-44H10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1609125-05042 SCREW, CASESCREW, CASE
-
1758620-44H00 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
1887873-56K50 TAPE, HEAD PIPETAPE, HEAD PIPE
