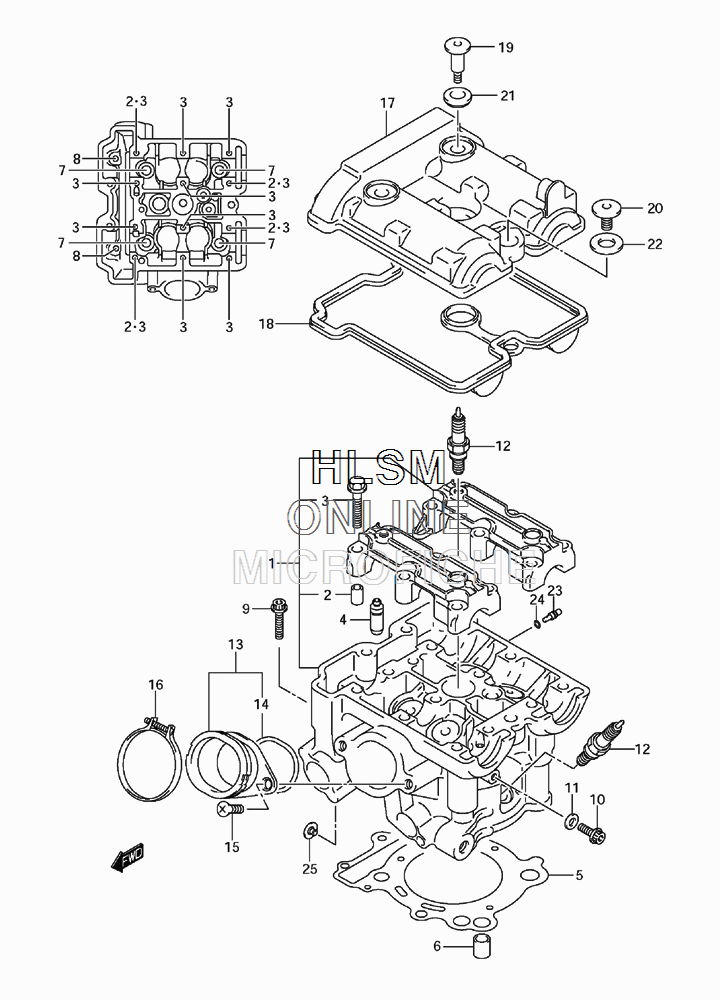

CYLINDER HEAD (REAR) для Suzuki SFV650 GLADIUS - 2009 года выпуска
-
№АртикулНазвание
-
111103-44H00 HEAD ASSY, CYLINDER REAR (INC 2-3)HEAD ASSY, CYLINDER REAR (INC 2-3)
-
209206-08001 PIN (6.2X8X11)PIN (6.2X8X11)
-
309103-06026 BOLT (6X39)BOLT (6X39)
-
411115-18D72 GUIDE, VALVEGUIDE, VALVE
-
511141-20F00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
604211-13189 PINPIN
-
711117-44H00 BOLT (10X160)BOLT (10X160)
-
809103-06103 BOLT (6X70)BOLT (6X70)
-
907120-0640B BOLTBOLT
-
1007120-0612B BOLTBOLT
-
1109168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1209482-00556 SPARK PLUG (NGK,CR8EIA-9)SPARK PLUG (NGK,CR8EIA-9)
-
1209482-00555 SPARK PLUG (DENSO,IU24D)SPARK PLUG (DENSO,IU24D)
-
1209482-00558 SPARK PLUG (NGK,CR9EIA-9)SPARK PLUG (NGK,CR9EIA-9)
-
1209482-00557 SPARK PLUG (DENSO,IU27D)SPARK PLUG (DENSO,IU27D)
-
1209482-00554 SPARK PLUG (NGK,CR7EIA-9)SPARK PLUG (NGK,CR7EIA-9)
-
1209482-00553 SPARK PLUG (DENSO,IU22D)SPARK PLUG (DENSO,IU22D)
-
1313102-17G10 PIPE ASSY, INTAKE REAR (INC 14)PIPE ASSY, INTAKE REAR (INC 14)
-
1409280-46006 O RINGO RING
-
1502122-0616B SCREWSCREW
-
1613827-40H00 CLAMPCLAMP
-
1711172-19F20 COVER, CYLINDER HEAD REARCOVER, CYLINDER HEAD REAR
-
1811173-19F01 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
1909106-07009 BOLT (7X5.5)BOLT (7X5.5)
-
2009106-07010 BOLT (7X19)BOLT (7X19)
-
2111191-27E00 WASHERWASHER
-
2211192-13E00 CUSHION, HEAD COVER BOLTCUSHION, HEAD COVER BOLT
-
2309493-80005 JET, OILJET, OIL
-
2409280-04004 O RINGO RING
-
2511151-27G00 CAPCAP
