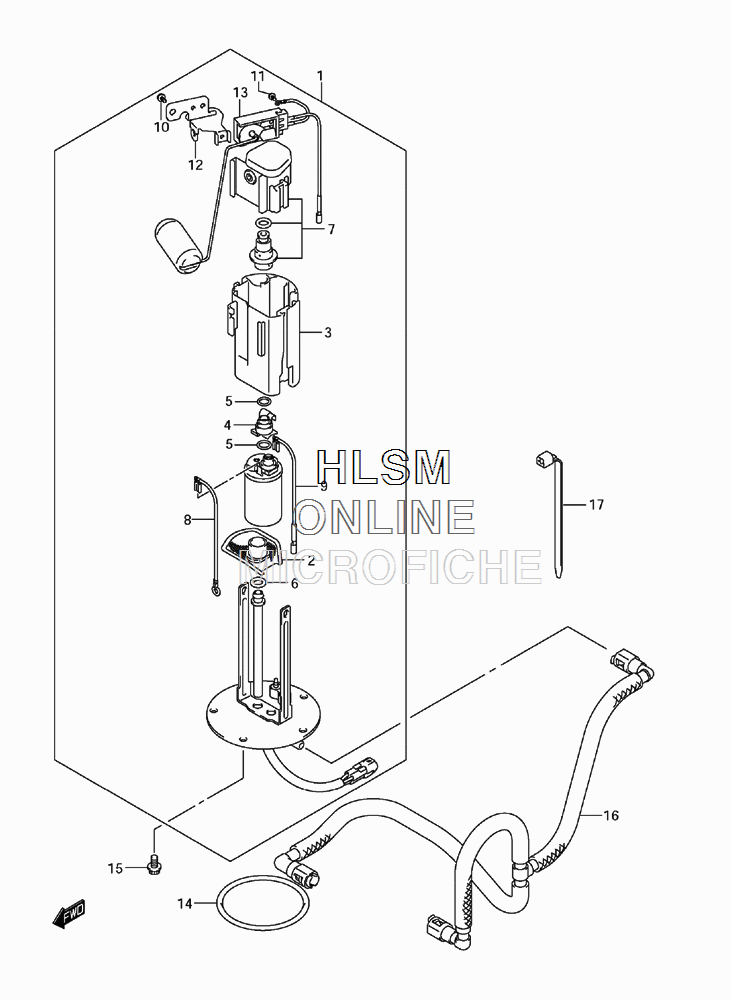

FUEL PUMP для Suzuki SFV650 GLADIUS - 2009 года выпуска
-
№АртикулНазвание
-
115100-44H00 PUMP ASSY, FUEL (INC 2-13)PUMP ASSY, FUEL (INC 2-13)
-
215420-05H00 STRAINERSTRAINER
-
315111-27G00 CUP, RESERVOIRCUP, RESERVOIR
-
415112-05H00 JOINTJOINT
-
515113-05H00 O RINGO RING
-
615113-35F00 O RINGO RING
-
715610-27G00 REGULATORREGULATOR
-
815114-27G00 WIPE, EARTHWIPE, EARTH
-
915115-27G00 WIRE, LEADWIRE, LEAD
-
1015116-44H00 SCREWSCREW
-
1115116-10F00 SCREWSCREW
-
1215181-44H00 BRACKET, FUEL GAUGEBRACKET, FUEL GAUGE
-
1334810-44H00 GAUGE ASSYGAUGE ASSY
-
1415201-35F00 O RING, FUEL PUMPO RING, FUEL PUMP
-
1507120-0612A BOLTBOLT
-
1615810-44H00 HOSE, FUELHOSE, FUEL
-
1709407-18402 CLAMPCLAMP
