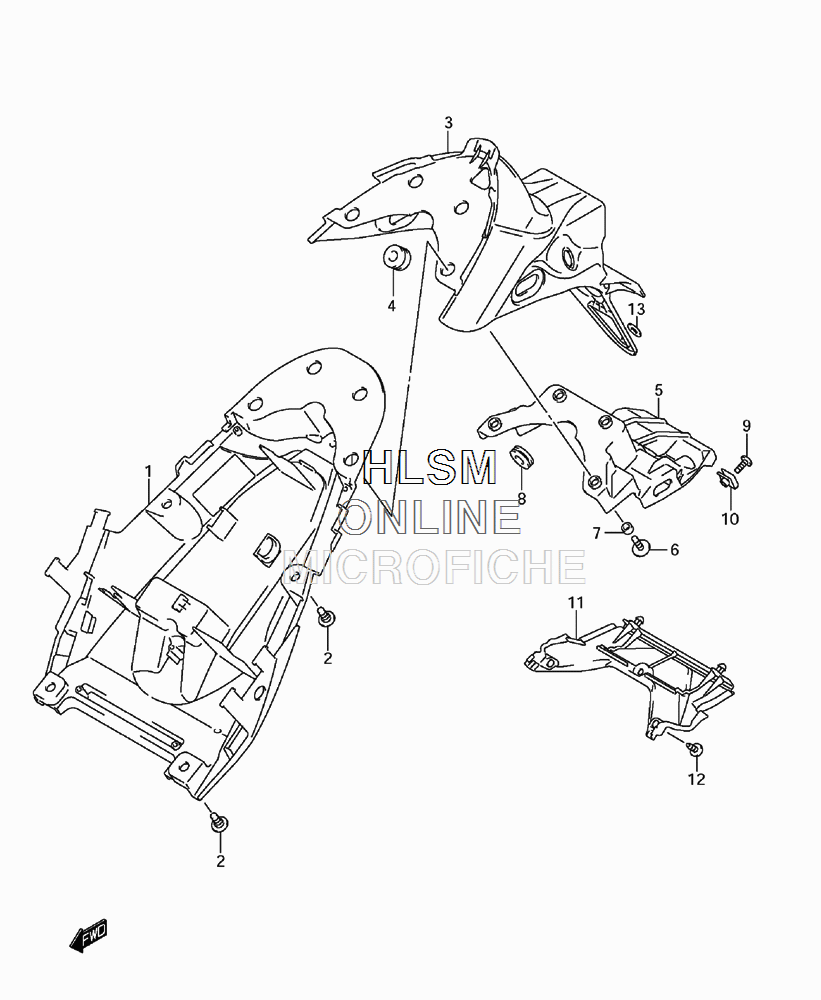

FENDER - REAR для Suzuki SFV650 GLADIUS - 2009 года выпуска
-
№АртикулНазвание
-
163111-44H00 FENDER, REAR FRONTFENDER, REAR FRONT
-
263161-43E00 BOLT, FRONTBOLT, FRONT
-
363112-44H00 FENDER, REAR REARFENDER, REAR REAR
-
433652-36000 CUSHIONCUSHION
-
563131-44H00 BRACKET, REAR FENDERBRACKET, REAR FENDER
-
609116-06152 BOLT, REARBOLT, REAR
-
709180-06038 SPACERSPACER
-
809320-08028 CUSHIONCUSHION
-
902142-0616A SCREW, BRACESCREW, BRACE
-
1009148-06021 NUTNUT
-
1163113-44H00 COVER, REAR FENDER REARCOVER, REAR FENDER REAR
-
1203541-0516A SCREWSCREW
-
1309160-06077 WASHER, LICENSE PLATEWASHER, LICENSE PLATE
