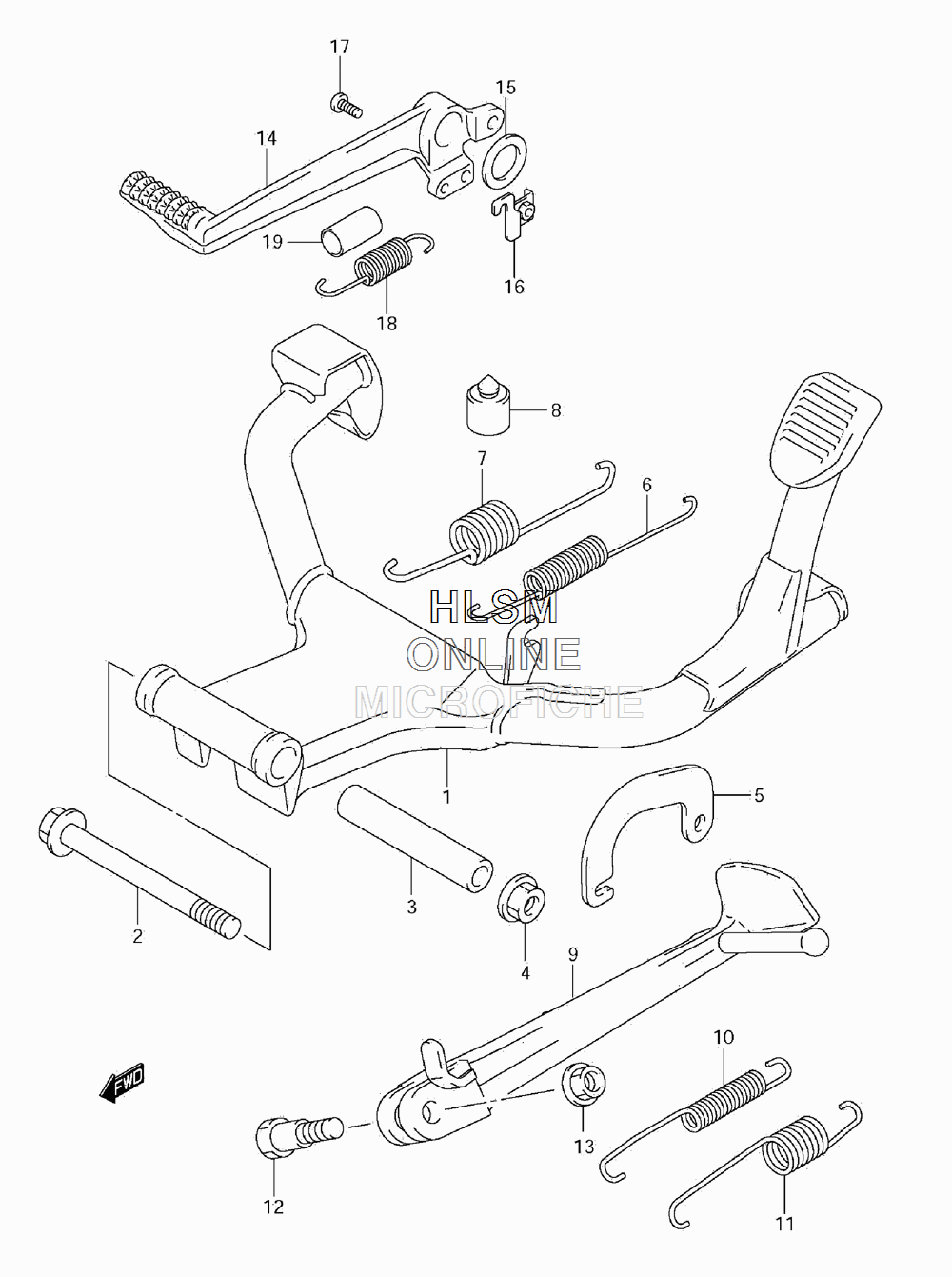

BRAKE PEDAL W/ STAND для Suzuki GSX-1250 FA L1 (CANADA) - 2011 года выпуска
-
№АртикулНазвание
-
142100-18H00 STAND, CENTERSTAND, CENTER
-
209103-10087 BOLT (10X105)BOLT (10X105)
-
342191-18H00 SPACERSPACER
-
409159-10115 NUTNUT
-
542192-18H00 HOOK, SPRINGHOOK, SPRING
-
609443-16024 SPRINGSPRING
-
709443-24003 SPRINGSPRING
-
809321-10034 CUSHIONCUSHION
-
942310-07J00 STAND, PROPSTAND, PROP
-
1009443-12048 SPRINGSPRING
-
1109443-19010 SPRINGSPRING
-
1209111-10065 BOLT (10X38)BOLT (10X38)
-
1342321-03FK0 NUTNUT
-
1443111-38G00 PEDAL, BRAKEPEDAL, BRAKE
-
1509160-18022 WASHER (18X24X1)WASHER (18X24X1)
-
1643560-32C00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
1702112-0516B SCREWSCREW
-
1809443-13029 SPRINGSPRING
-
1943261-17C00 TUBE, SPRINGTUBE, SPRING
