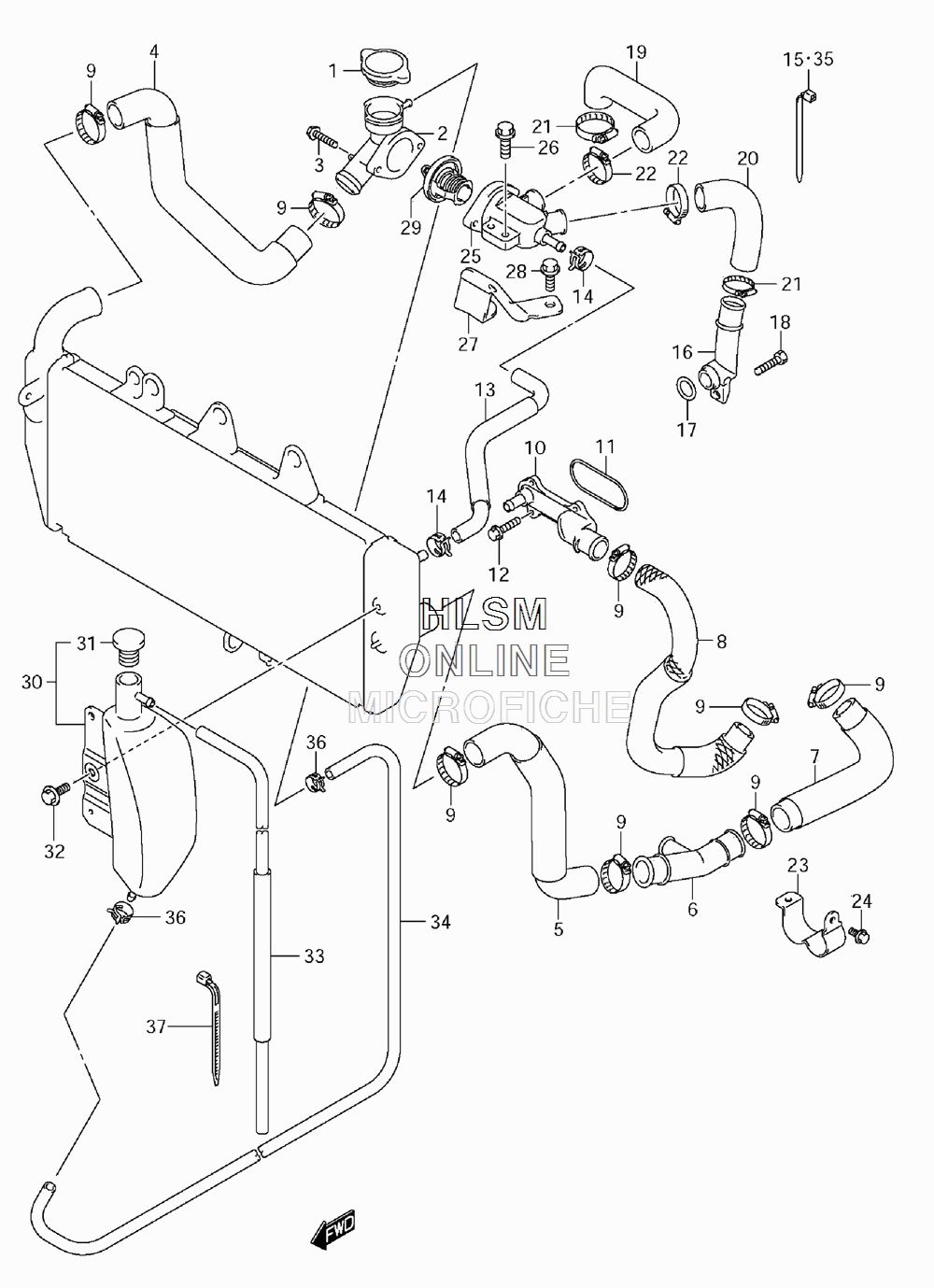

RADIATOR HOSE W/ RESERVOIR для Suzuki GSX-1250 FA L1 (CANADA) - 2011 года выпуска
-
№АртикулНазвание
-
117730-14G00 CAP, RADIATORCAP, RADIATOR
-
217791-18H00 CONDUCTIONCONDUCTION
-
301550-0620A BOLTBOLT
-
417851-18H10 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
517852-18H10 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
617890-18H00 PIPE, RADIATOR OUTLETPIPE, RADIATOR OUTLET
-
717853-18H00 HOSE, WATER PUMP INLETHOSE, WATER PUMP INLET
-
817854-18H00 HOSE, WATER PUMP OUTLETHOSE, WATER PUMP OUTLET
-
909402-38512 CLAMPCLAMP
-
1017861-18H00 CONNECTOR, CYLINDER INLETCONNECTOR, CYLINDER INLET
-
1117863-18H00 O RINGO RING
-
1201547-0620A BOLTBOLT
-
1317856-18H10 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
1409401-12409 CLIPCLIP
-
1509407-18402 CLAMP (L:165)CLAMP (L:165)
-
1617880-18H00 PIPE, CYLINDER OUTLETPIPE, CYLINDER OUTLET
-
1709280-18008 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
1807130-0612A BOLTBOLT
-
1917857-18H00 HOSE, CYLINDER OUTLET RIGHT HANDHOSE, CYLINDER OUTLET RIGHT HAND
-
2017858-18H00 HOSE, CYLINDER OUTLET LEFT HANDHOSE, CYLINDER OUTLET LEFT HAND
-
2109402-28513 CLAMPCLAMP
-
2209402-32512 CLAMPCLAMP
-
2317859-18H00 PLATE, WATER HOSE CLAMPPLATE, WATER HOSE CLAMP
-
2401547-0612A BOLTBOLT
-
2517662-18H00 CONNECTORCONNECTOR
-
2601550-0620A BOLTBOLT
-
2717669-18H00 BRACKETBRACKET
-
2801550-0612B BOLTBOLT
-
2917670-76G00 THERMOSTAT, WATERTHERMOSTAT, WATER
-
3017910-18H10 TANK ASSY, RESERVOIR (INCL. 31)TANK ASSY, RESERVOIR (INCL. 31)
-
3117931-02FA0 CAPCAP
-
3209111-06085 BOLT (6X12)BOLT (6X12)
-
3317982-18H10 HOSE, OVERFLOWHOSE, OVERFLOW
-
3409352-50901-00B HOSE (5X9X2000)HOSE (5X9X2000)
-
3509407-18402 CLAMP (L:165)CLAMP (L:165)
-
3609401-08411 CLIPCLIP
-
3709407-25401 CLAMP (L:235)CLAMP (L:235)
