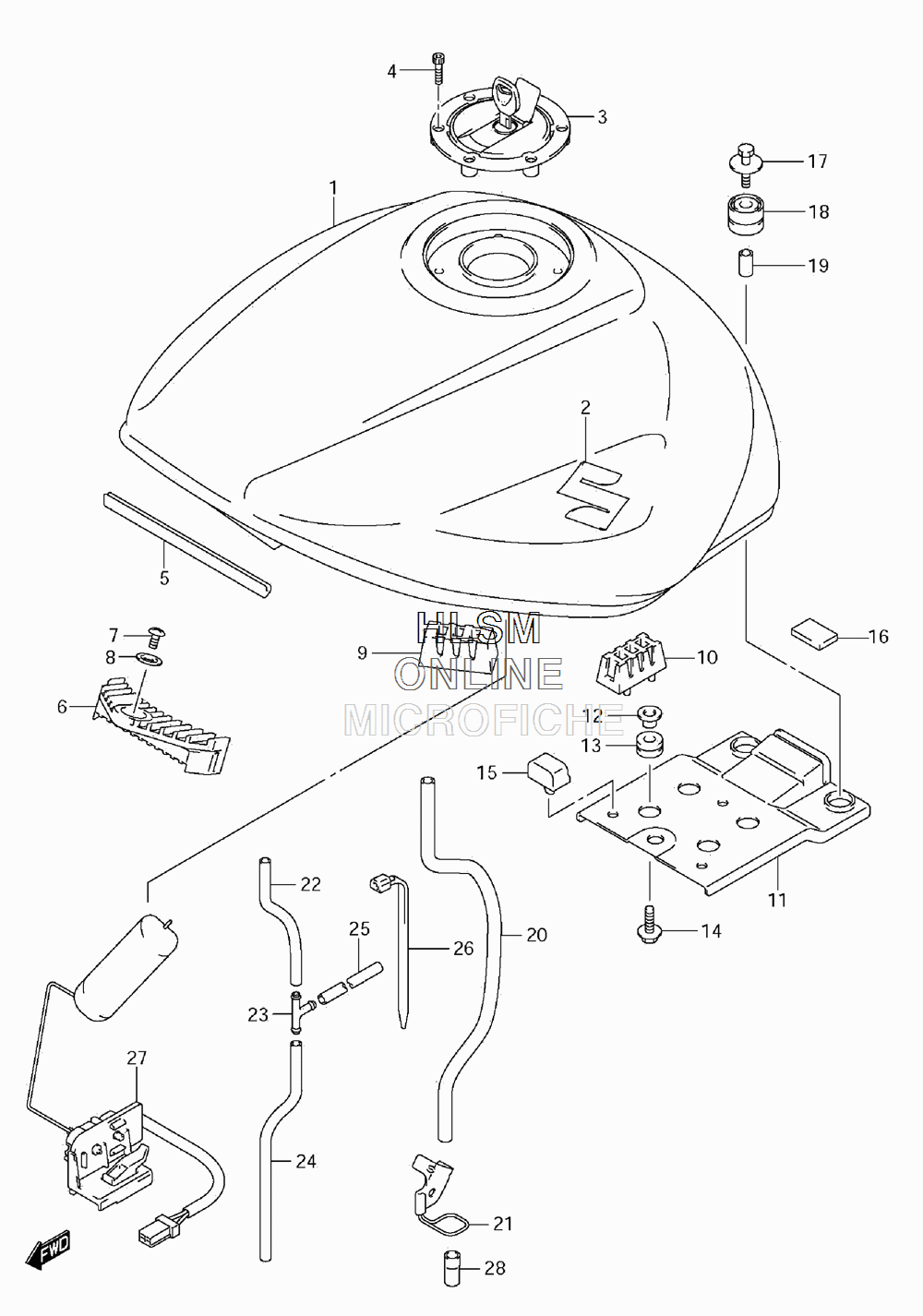

FUEL TANK (CANADA) для Suzuki GSX-1250 FA L1 (CANADA) - 2011 года выпуска
-
№АртикулНазвание
-
144100-18H30-YAY TANK ASSY, FUEL (BLACK) (YAY)TANK ASSY, FUEL (BLACK) (YAY)
-
144100-18H30-YHG TANK ASSY, FUEL (GRAY) (YHG)TANK ASSY, FUEL (GRAY) (YHG)
-
144100-18H30-YKZ TANK ASSY, FUEL (BLUE) (YKZ)TANK ASSY, FUEL (BLUE) (YKZ)
-
268111-18G20 EMBLEM, SEMBLEM, S
-
344200-16850 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
409106-05017 BOLT (5X20)BOLT (5X20)
-
568241-04X50-300 MOLDINGMOLDING
-
644511-27E00 CUSHION, FRONTCUSHION, FRONT
-
702142-0510B SCREWSCREW
-
809169-05012 WASHERWASHER
-
945149-45330 CUSHION, SIDECUSHION, SIDE
-
1044541-31F00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
1144141-38G00 BRACKET, REARBRACKET, REAR
-
1209169-06062 WASHERWASHER
-
1309320-08001 CUSHIONCUSHION
-
1409116-06192 BOLT (6X20)BOLT (6X20)
-
1545149-21G00 CUSHIONCUSHION
-
1647163-10FA0 CUSHIONCUSHION
-
1709116-06172 BOLT (6X30)BOLT (6X30)
-
1844541-38G00 CUSHIONCUSHION
-
1909180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
2044423-18H10 HOSE, DRAINHOSE, DRAIN
-
2144480-07J10 GUIDE, DRAIN HOSEGUIDE, DRAIN HOSE
-
2244425-09E00 HOSE, BREATHERHOSE, BREATHER
-
2309367-06002 JOINTJOINT
-
2409352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
2509352-50823-00B HOSE (5X8.2X2000)HOSE (5X8.2X2000)
-
2609407-14403 CLAMP (L:125)CLAMP (L:125)
-
2734810-18H00 GAUGE, FUEL LEVELGAUGE, FUEL LEVEL
-
2809352-13162-010 HOSE (13.5X16.5X10)HOSE (13.5X16.5X10)
