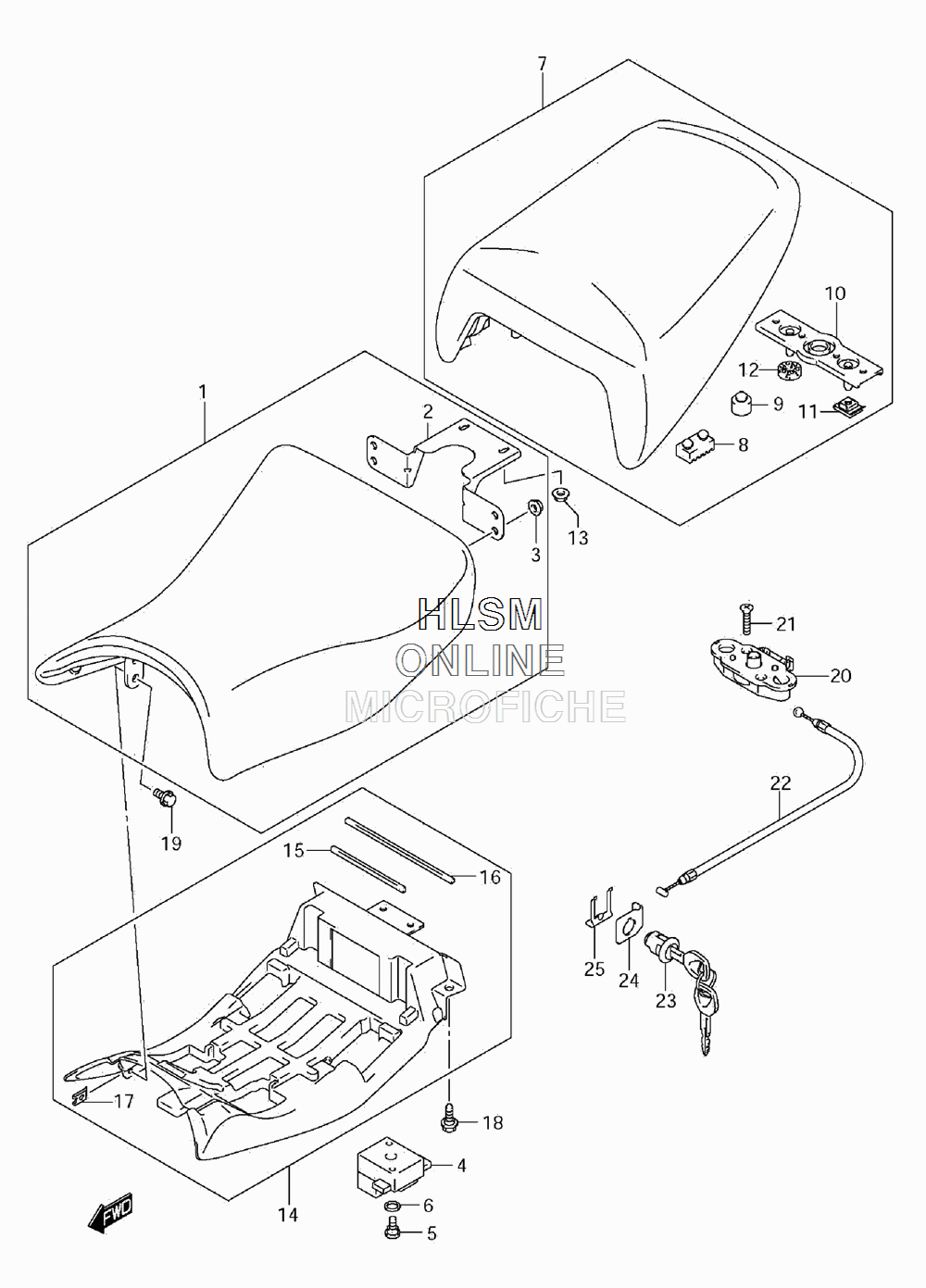

SEAT для Suzuki GSX-1250 FA L1 (CANADA) - 2011 года выпуска
-
№АртикулНазвание
-
145100-38G12-DKD SEAT ASSY (INCL. 2 - 3)SEAT ASSY (INCL. 2 - 3)
-
245115-38G00 BRACKETBRACKET
-
308319-3106A NUTNUT
-
445149-38G01 CUSHIONCUSHION
-
509139-06133 SCREW (6X16)SCREW (6X16)
-
609160-10121 WASHER (10.5X18X1)WASHER (10.5X18X1)
-
745300-38G10-W05 SEAT ASSY, PILLION (INCL. 8 - 12)SEAT ASSY, PILLION (INCL. 8 - 12)
-
845149-42F00 CUSHION, FRONTCUSHION, FRONT
-
909321-10011 CUSHIONCUSHION
-
1045290-42F02 STRIKERSTRIKER
-
1109148-06018 NUTNUT
-
1245213-31300 CUSHIONCUSHION
-
1308319-3106B NUTNUT
-
1445410-38G03-291 COVER, SEAT LOWER (BLACK) (INCL 15 - 17)COVER, SEAT LOWER (BLACK) (INCL 15 - 17)
-
1545412-38G00 CUSHION, SEAT LOWER COVER FRONTCUSHION, SEAT LOWER COVER FRONT
-
1645413-38G00 CUSHION, SEAT LOWER COVER REARCUSHION, SEAT LOWER COVER REAR
-
1709148-06018 NUTNUT
-
1809111-06066 BOLT (6X16)BOLT (6X16)
-
1901550-0612B BOLTBOLT
-
2045220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
2102122-0630A SCREWSCREW
-
2245280-33400 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
2395700-14810 LOCK SET, SEATLOCK SET, SEAT
-
2445288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
2545289-11F00 PLATE, SEAT LOCKPLATE, SEAT LOCK
