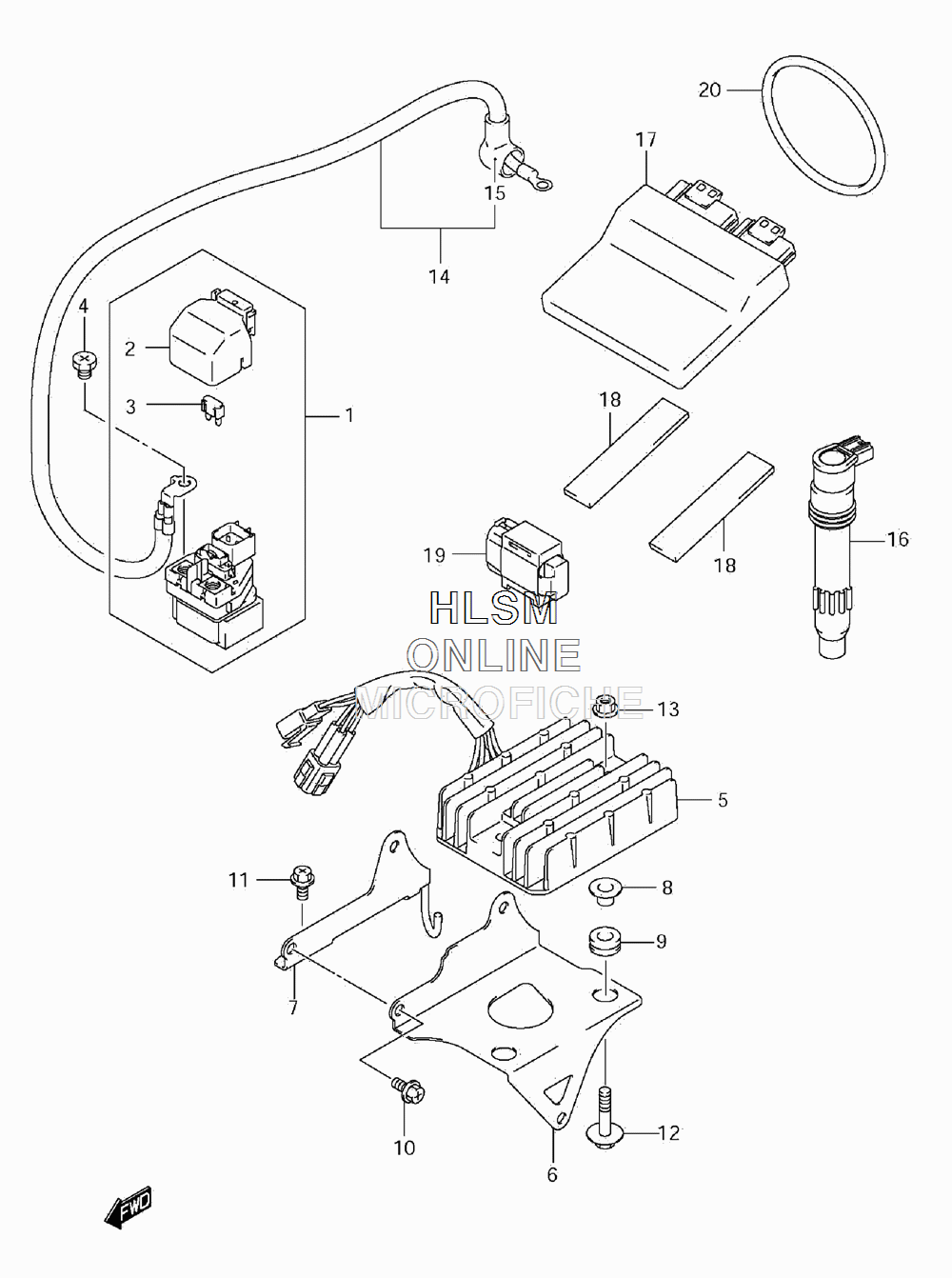

ELECTRICAL (CANADA) для Suzuki GSX-1250 FA L1 (CANADA) - 2011 года выпуска
-
№АртикулНазвание
-
131800-38G10 RELAY ASSY, STARTING MOTOR (INCL. 2 - 3)RELAY ASSY, STARTING MOTOR (INCL. 2 - 3)
-
231861-38G00 COVERCOVER
-
309481-30501 FUSE (30A)FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-47H10 RECTIFIER ASSYRECTIFIER ASSY
-
632830-18H10 BRACKET, RECTIFIER NO.1BRACKET, RECTIFIER NO.1
-
732830-18H20 BRACKET, RECTIFIER NO.2BRACKET, RECTIFIER NO.2
-
809180-06325 SPACER (6.2X8.4X6.9)SPACER (6.2X8.4X6.9)
-
909320-08066 CUSHIONCUSHION
-
1001547-0612A BOLTBOLT
-
1101547-0612A BOLTBOLT
-
1209116-06182 BOLT (6X20)BOLT (6X20)
-
1308316-1006B NUTNUT
-
1433810-18H00 WIRE, STARTER MOTOR LEAD (INCL. 15)WIRE, STARTER MOTOR LEAD (INCL. 15)
-
1533624-18H10 CAP, STARTER MOTORCAP, STARTER MOTOR
-
1633410-47H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1732920-18H60 CONTROL UNIT, FICONTROL UNIT, FI
-
1833652-38A10 CUSHION, FI (20X90X2)CUSHION, FI (20X90X2)
-
1933960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
2009280-70004 O RING (D:3.53,ID:69.44)O RING (D:3.53,ID:69.44)
